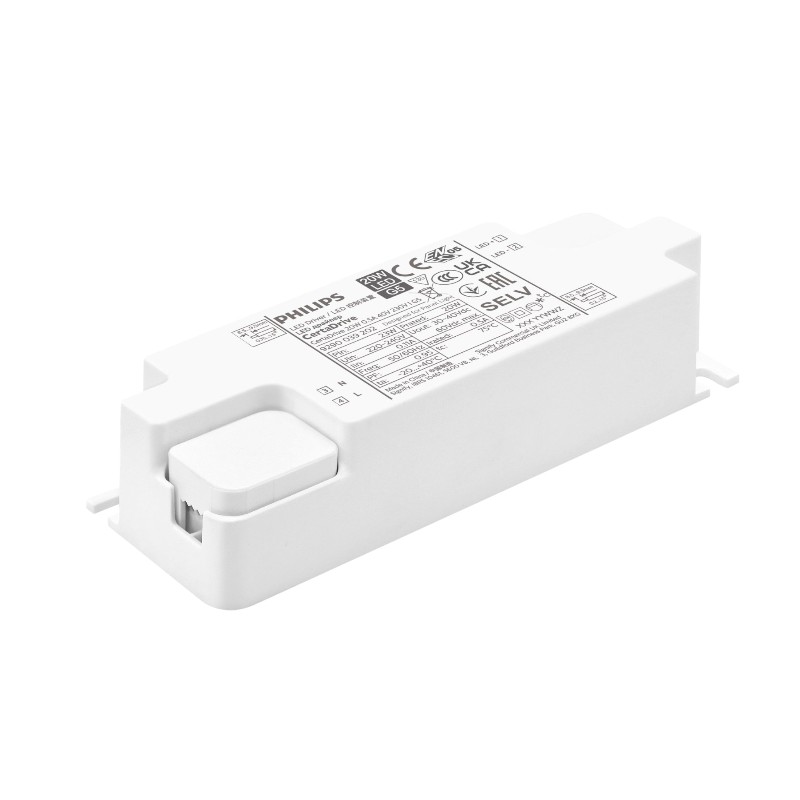

Philips CertaDrive LED Panel Driver Series - Flicker-Free – Constant Current, 230V

http://licht-eg.com/web/image/product.template/10223/image_1920?unique=8e9c0b7

Reliable and efficient constant current LED drivers designed for panel and general lighting applications. The Philips CertaDrive Series ensures consistent performance, safety, and long lifetime in a compact, cost-effective design. Ideal for commercial, retail, and residential lighting projects.

Brand: Philips

0.00 LE 0.0 EGP 0.00 LE

0.00 LE

Get a Quota

  • Watt

This combination does not exist.

Contact Us
IP20 Flicker-Free Commercial Constant Current

Terms and Conditions
14-day money-back guarantee
Shipping: 3-7 Business Days

Key Features:

  • Constant current, fixed output LED driver
  • High efficiency up to 90.5%
  • Power factor >0.95 for stable performance
  • Low output ripple (<4%) for visual comfort
  • Compact, lightweight housing suitable for slim panel fixtures
  • Full protection: short circuit, open circuit, overload
  • Reinforced insulation and SELV output for safety compliance
  • Lifetime up to 50,000 hours @ Tc-life
  • Suitable for Class II luminaires
  • CE and RoHS certified

Electrical Specifications:

  • Input Voltage: 220–240V AC
  • Frequency: 50/60Hz
  • THD: <20%
  • Ripple Current (LF): ≤4%
  • Ripple Current (HF): ≤15%
  • Power Factor: >0.95
  • Operating Temperature: –20°C to +40°C
  • IP Rating: IP20 (Indoor Use)
  • Cooling: Natural Convection
  • Lifetime: Up to 50,000 hours (Tcase-life)
  • Housing Color: White

Available Variants:

  • 20W – 500mA Output – 30–40V DC – Efficiency 88%
  • 24W – 600mA Output – 30–40V DC – Efficiency 88%
  • 28W – 700mA Output – 30–40V DC – Efficiency 89%
  • 32W – 800mA Output – 30–40V DC – Efficiency 89%
  • 36W – 900mA Output – 30–40V DC – Efficiency 89.5%
  • 42W – 1050mA Output – 30–40V DC – Efficiency 89.5%
  • 48W – 1200mA Output – 30–40V DC – Efficiency 90.5%

Mechanical Data:

  • Dimensions: 118 × 42 × 28 mm (up to 42W)
  • Dimensions (48W model): 125 × 45 × 31.8 mm
  • Weight: 69–115 g depending on model
  • Mounting Type: Independent / Built-in (Class II)

Protection Features:

  • Overload protection (auto recovery)
  • Short circuit protection
  • Open circuit protection
  • Thermal protection (auto reset)

Applications:

  • LED panel lights
  • Recessed ceiling fixtures
  • Office and retail lighting
  • Corridors, meeting rooms, and public areas
