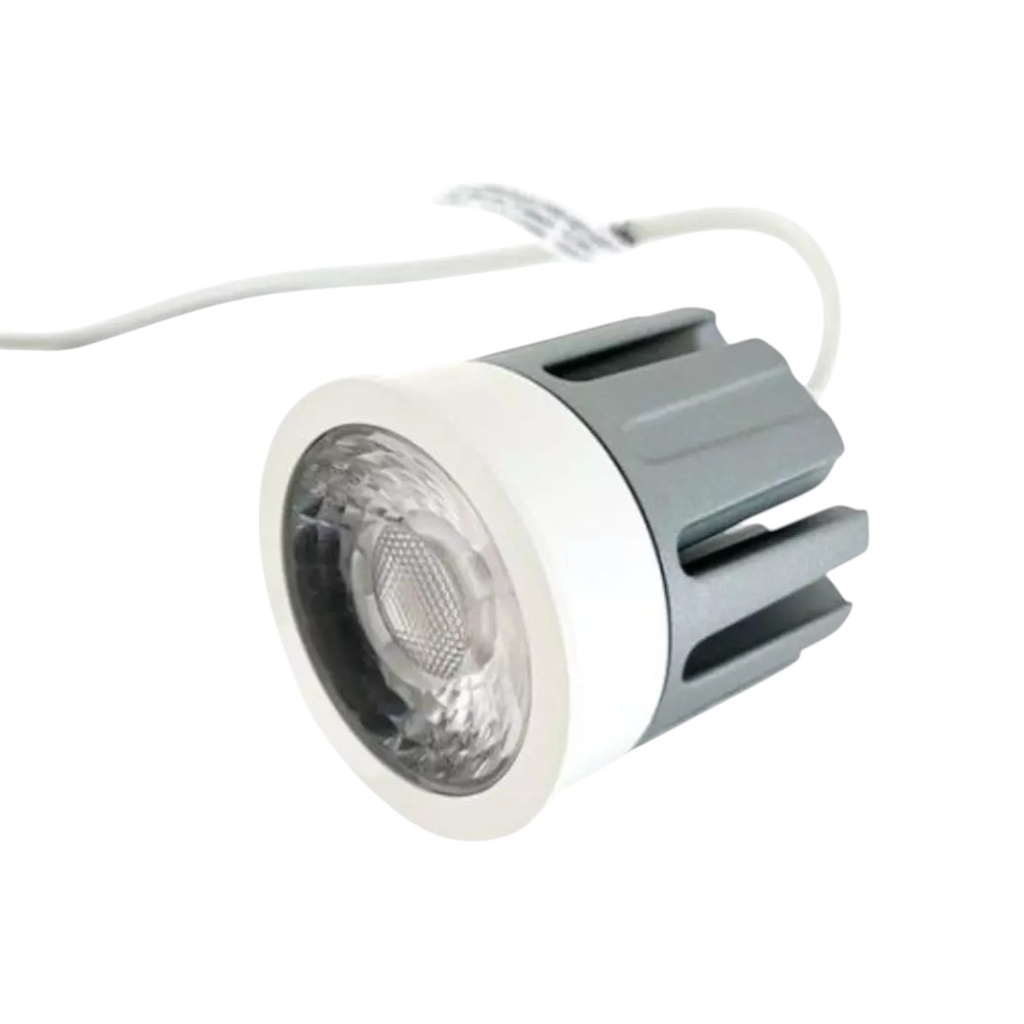

OSRAM PrevaLED COIN 50 COB G2 – 12.8W, 3000K, 1239lm, 24°, CRI90

http://licht-eg.com/web/image/product.template/10537/image_1920?unique=8ed1640
Brand: OSRAM
Warranty: 5 Years

The OSRAM PrevaLED COIN 50 COB G2 is a premium integrated COB LED module engineered for high-end retail, hospitality, residential, and architectural lighting applications. Featuring integrated optics and an aluminum heat sink, it delivers exceptional light quality with CRI 90, 2 SDCM color consistency, and a precise 24° beam angle. Producing up to 1239 lumens at only 12.8W, this module offers excellent efficiency, long-term reliability, and superior visual comfort. Designed to work seamlessly with OSRAM OPTOTRONIC LED drivers, it is an ideal solution for professional spotlight luminaires requiring outstanding color rendering and consistent performance.

0.00 LE 0.0 EGP 0.00 LE

0.00 LE

Get a Quota

  • Light Temperature

This combination does not exist.

Contact Us
Light Temperature: 3000k

Terms and Conditions
14-day money-back guarantee
Shipping: 3-7 Business Days

Specifications:

  • Product Name: OSRAM PrevaLED COIN 50 COB G2 LED Module
  • Model: PL-CN50-COB-1400-930-24D-G2
  • Product Type: Integrated COB LED Module with Optics & Heat Sink
  • Brand: OSRAM
  • Power Consumption: 12.8W
  • Input Current: 350mA DC
  • Input Voltage: 36.5V DC
  • Luminous Flux: 1239lm
  • Luminous Efficacy: 97lm/W
  • Color Temperature: 3000K Warm White
  • Color Rendering Index (CRI): Ra ≥90
  • Color Consistency: ≤2 SDCM
  • Beam Angle: 24°
  • Luminous Intensity: 4299cd
  • Light Distribution: Directional
  • Starting Time: <2 seconds
  • Warm-up Time (60%): <0.5 seconds
  • Diameter: 50mm
  • Height: 55mm
  • Weight: 90g
  • Heat Sink Color: Grey
  • Operating Temperature: -25°C to +40°C
  • Maximum Case Temperature (Tc): 90°C
  • Storage Temperature: -40°C to +80°C
  • Lifetime: 50,000 Hours (L70B50)
  • Switching Cycles: 15,000
  • Energy Efficiency Class: A+
  • Energy Consumption: 15kWh/1000h
  • Protection Rating: IP20
  • Driver Compatibility: Optimized for OSRAM OPTOTRONIC LED Drivers
  • Features: Integrated Optics, Integrated Heat Sink, High Flux Output, Precision Beam Control, Low Color Variation, TM-30 Compliant, Replaceable Front Cover, High Output Design, High Efficiency, Professional Lighting Quality
  • Certifications / Standards / Warranty: CE, IEC 62471, EN 60598-1, EN 60529, EN 55015, EN 61547, EN 62031, IP20
  • Applications: Retail Stores, Shops, Restaurants, Hotels, Hospitality Projects, Museums, Galleries, High-End Residential, Architectural Accent Lighting, Premium Downlights, Professional Spotlights.
