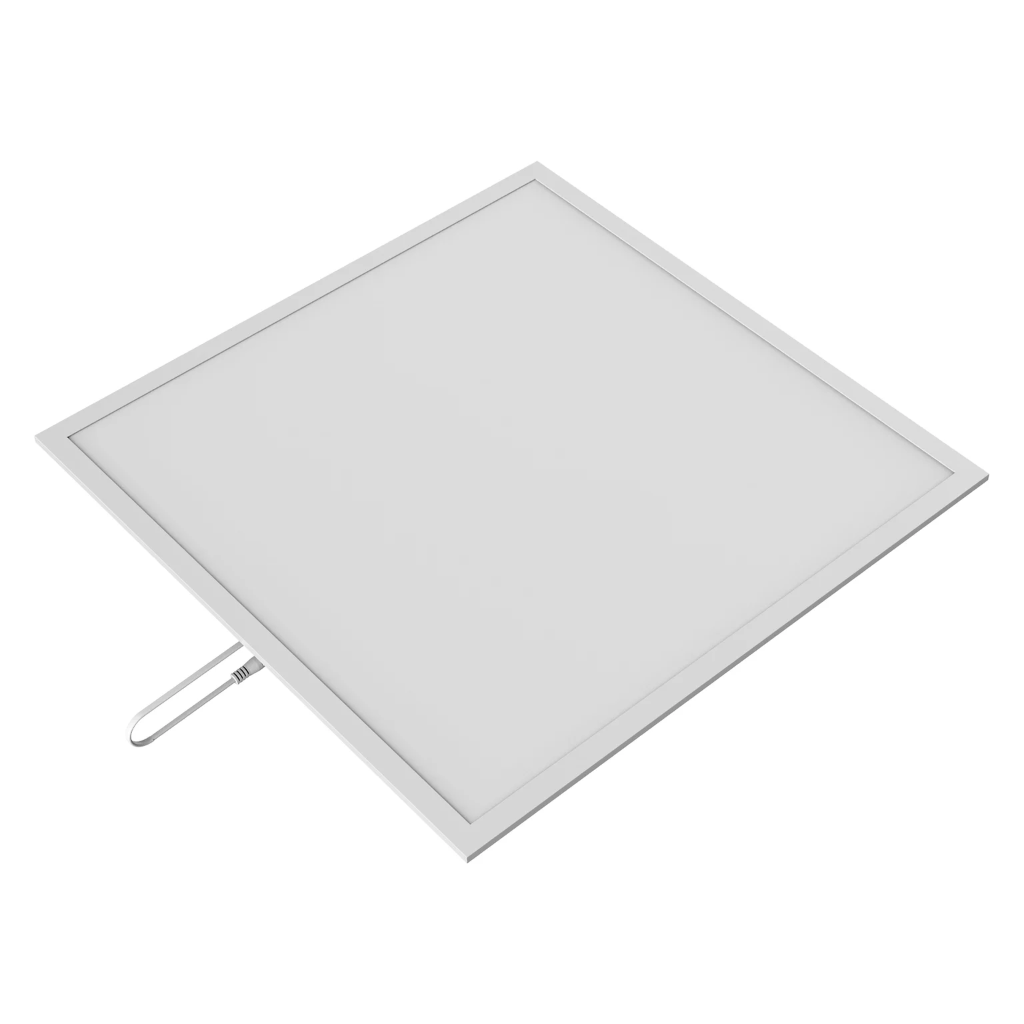

LEDVANCE Performance Panel 60×60 – 28W - 4000lm – IP54/IP20 (0606)

http://licht-eg.com/web/image/product.template/10225/image_1920?unique=8e9c0b7
Brand: LEDVANCE
Warranty: 3 Years
Slim 60×60 LED performance panel (28W, 4000K) delivering high-efficiency, uniform illumination for offices, retail and public areas. Compact 34 mm profile with integrated optics, IP54 protection from the diffuser side, and wide voltage operation (100–277V) — ideal for energy-efficient backlit and recessed ceiling installations.

0.00 LE 0.0 EGP 0.00 LE

0.00 LE

Get a Quota

  • Light Temperature

This combination does not exist.

Contact Us
Industrial Indoors Down Lights IP20 CRI>80 UGR<22 IP54 Low Glare

Terms and Conditions
14-day money-back guarantee
Shipping: 3-7 Business Days

Specifications

  • Model / Size: Performance Panel 0606 (595 × 595 mm)
  • Nominal Power: 28 W
  • Nominal Voltage: 100–277 V AC (wide voltage)
  • Type of Current: AC, 50/60 Hz
  • Nominal Current: 300 mA
  • Total Harmonic Distortion (THD): ≤ 15%
  • Power Factor: 0.90 (typ.)
  • Luminous Flux: 4,000 lm
  • Luminous Efficacy: 143 lm/W (system)
  • Color Temperature (CCT): 4000 K (Cool White) — 3000 K on request
  • Color Rendering Index (CRI): Ra > 80
  • Color Consistency: < 5 SDCM
  • Beam / Optics: Integrated heat-resistant lens for uniform light distribution (backlit effect)
  • Dimensions: 595 × 595 × 34 mm (L × W × H)
  • Product Weight: 1,580 g
  • Body Material / Color: Steel housing / White finish
  • Protection Class: II (SELV not required)
  • Ingress Protection: IP54 (from diffuser side) / IP20 (overall)
  • Ambient / Operating Temp.: −10 °C … +50 °C
  • Storage Temp.: −20 °C … +70 °C
  • Dimmable: No
  • Suitable for Emergency Lighting: No
  • Mounting Options: Recessed mount (standard) — optional plaster ceiling mounting clips and suspension kit available
  • Standards & Certifications: CB, EU RoHS 2.0, SASO 2902 Energy Efficiency Class A (0606 WV)
  • Lifetime / Maintenance: Low maintenance; long lifetime (manufacturer datasheet typical values)
  • Applications: Offices, retail, hospitals, public areas, corridors, backlit ceiling installations
  • Downloads / Files: IES file available (LDPFM PL0606B 28W 840)
  • Notes: Subject to change — always verify with manufacturer datasheet for final approval
