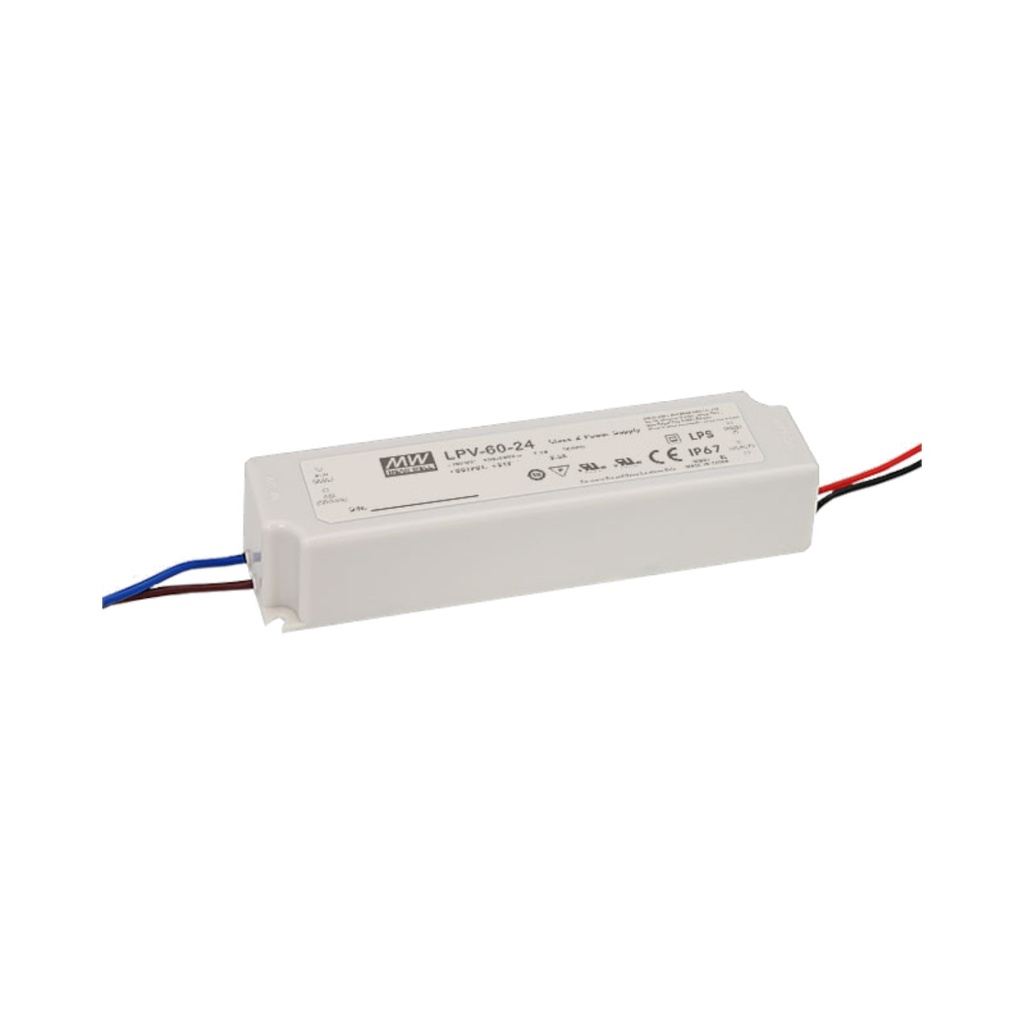

Constant Voltage LED Power Supply – LPV-60 Series – 12 V / 24 V / 48 V DC – 60 W – IP67

Technical Specifications

• Series Model: LPV-60
• Rated Power: 60 W
• Output Voltage Options: 12 V / 24 V / 48 V DC
• Rated Current: 5 A (12 V) / 2.5 A (24 V) / 1.25 A (48 V)
• Voltage Range: 13.8–16.2 V / 27.6–32.4 V / 55.2–64.8 V
• Voltage Tolerance: ± 8 %
• Ripple & Noise: 120–150 mVp-p
• Line Regulation: ± 1 %
• Load Regulation: ± 6 %
• Input Voltage Range: 90–264 VAC / 127–370 VDC
• Frequency Range: 47–63 Hz
• Efficiency (Typ.): 83 % (12 V) / 86 % (24 V & 48 V)
• AC Current (Typ.): 1.2 A @ 115 VAC / 1 A @ 230 VAC
• Inrush Current: 60 A @ 230 VAC (cold start)
• Leakage Current: < 0.25 mA @ 240 VAC
• Hold-Up Time: 50 ms @ 230 VAC full load
• Protections: Short circuit / Overload / Overvoltage
• Overload Protection: 110–150 % rated power (hiccup mode, auto recovery)
• Isolation Voltage: I/P–O/P 3 KVAC
• Insulation Resistance: > 100 MΩ @ 500 VDC, 25 °C / 70 % RH
• Cooling Method: Free-air convection
• Operating Temperature: –30 °C … +70 °C (derating above 50 °C)
• Humidity Range: 20 – 90 % RH non-condensing
• Enclosure Material: Fully encapsulated plastic housing
• Ingress Protection: IP67
• Mounting Type: Surface mount – indoor or sheltered outdoor use
• Vibration Resistance: 10–500 Hz, 2 G, 60 min per axis (X, Y, Z)
• Dimensions: 162.5 × 42.5 × 32 mm (L × W × H)
• Weight: 0.40 kg
• Standards Compliance: UL 879, UL 1310, CSA C22.2 No. 207, EN 62368-1, EAC TP TC 004, BIS IS 15885
• EMC Compliance: EN 55032 Class B / EN 61000-3-2 Class A / EN 61000-4-2, 3, 4, 5, 6, 8, 11
• MTBF: > 518,000 hours (Telcordia SR-332 @ 25 °C)
• Warranty: 2 years
