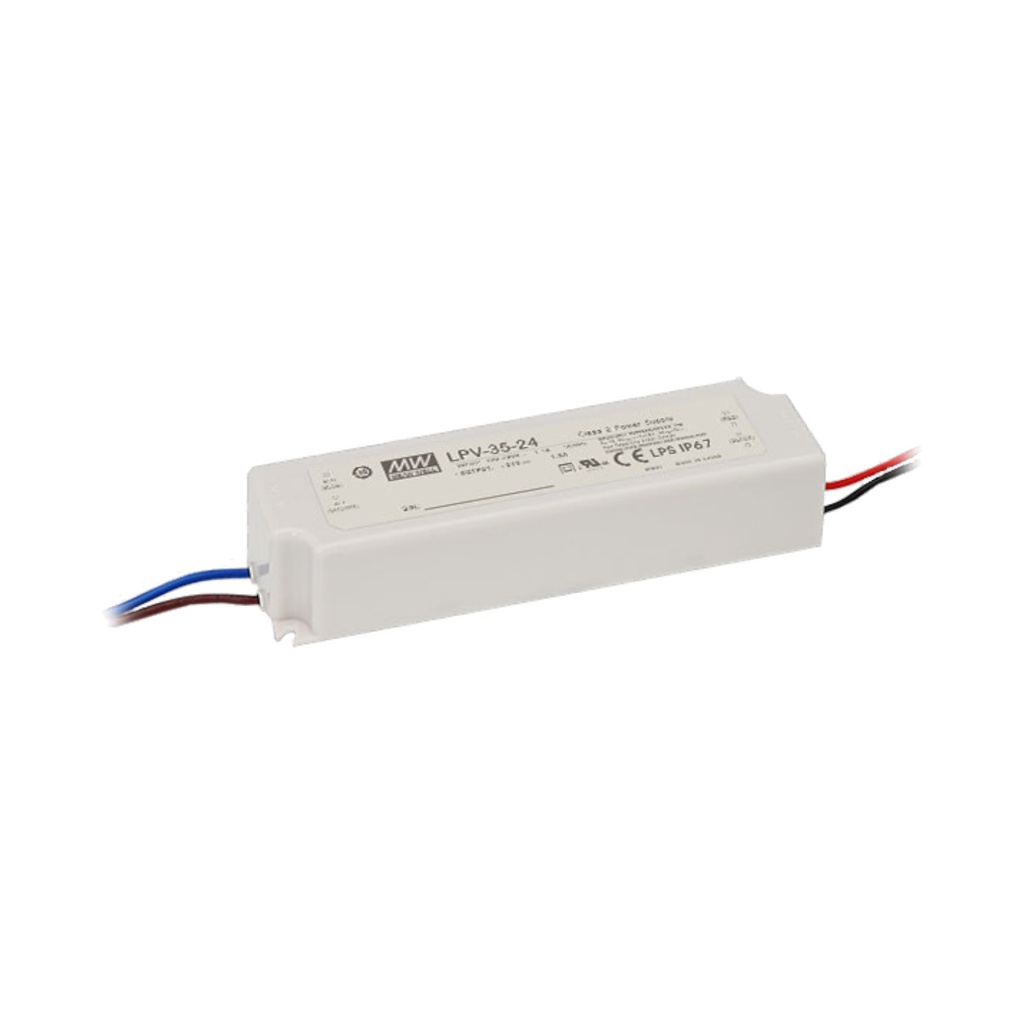

Constant Voltage LED Power Supply – LPV-35 Series – 12 V / 24 V / 48 V DC – 35 W – IP67

Technical Specifications

• Series Model: LPV-35
• Rated Power: 35 W
• Output Voltage Options: 12 V / 24 V / 48 V DC
• Rated Current: 3 A (12 V) / 1.5 A (24 V) / 0.75 A (48 V)
• Voltage Range: 13.8 – 16.2 V / 27.6 – 32.4 V / 54 – 58 V
• Voltage Tolerance: ± 5 %
• Ripple & Noise: ≤ 150 mVp-p
• Load Regulation: ± 2 %
• Line Regulation: ± 1 %
• Input Voltage Range: 90 – 264 VAC / 127 – 370 VDC
• Frequency Range: 47 – 63 Hz
• Efficiency (Typ.): 84 % – 85 %
• Inrush Current: 55 A @ 230 VAC (cold start)
• Leakage Current: < 0.25 mA @ 240 VAC
• Hold-Up Time: 50 ms @ 230 VAC full load
• Operating Temperature: –30 °C to +65 °C (derating above 50 °C)
• Storage Temperature: –40 °C to +80 °C
• Humidity Range: 20 – 90 % RH non-condensing
• Cooling Method: Free-air convection
• Protection Features: Short circuit / Overload / Overvoltage
• Overload Protection: 110 – 150 % of rated power (hiccup mode, auto recovery)
• Overvoltage Protection: 13.8 – 16.2 V / 27.6 – 32.4 V / 54 – 58 V
• Isolation Voltage: I/P–O/P 3 KVAC
• Insulation Resistance: > 100 MΩ @ 500 VDC 25 °C / 70 % RH
• Enclosure Material: Fully encapsulated non-metallic plastic case
• Ingress Protection: IP67
• Mounting Type: Surface mount / indoor or sheltered outdoor use
• Vibration Resistance: 10 – 500 Hz, 2 G, 60 min per axis (X, Y, Z)
• Dimensions: 148 × 40 × 30 mm (L × W × H)
• Weight: 0.31 kg
• Safety Standards: UL 1310 Class 2, CSA C22.2 No. 223-M91, BIS IS15885, IEC/EN 62368-1, EAC TP TC 004
• EMC Compliance: EN 55032 Class B / EN 61000-3-2 Class A / EN 61000-4-2, 3, 4, 5, 6, 8, 11
• MTBF: > 500 000 hours (Telcordia SR-332 @ 25 °C)
• Warranty: 2 years
