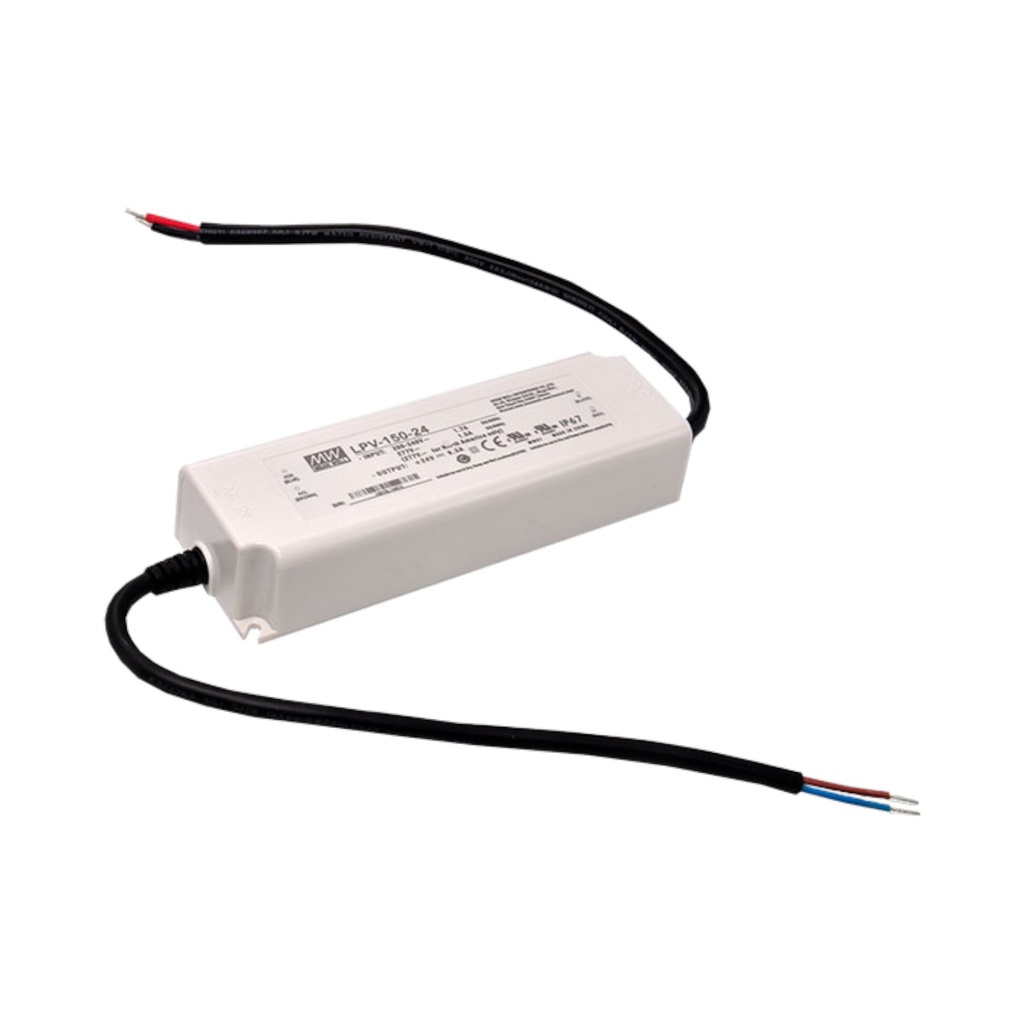

Constant Voltage LED Power Supply – LPV-150 Series – 12 V / 24 V / 48 V DC – 150 W – IP67

Technical Specifications

• Series Model: LPV-150
• Rated Power: 150 W
• Output Voltage Options: 12 V / 24 V / 48 V DC
• Rated Current: 10 A (12 V) / 6.3 A (24 V) / 3.2 A (48 V)
• Current Range: 0 – 10 A / 0 – 6.3 A / 0 – 3.2 A
• Rated Power Output: 120 – 153.6 W (depending on model)
• Voltage Range: 13.5 – 18 V / 27 – 35 V / 52 – 63 V
• Voltage Tolerance: ± 1 % (line) / ± 5 % (load)
• Ripple & Noise: ≤ 200 mVp-p
• Efficiency (Typical): 87 – 90 %
• Input Voltage Range: 180 – 305 VAC / 254 – 431 VDC
• Frequency Range: 47 – 63 Hz
• AC Current: 1.7 A @ 230 VAC / 1.5 A @ 277 VAC
• Inrush Current: 60 A @ 230 VAC (cold start)
• Leakage Current: < 0.25 mA @ 240 VAC
• Hold-Up Time: 18 ms @ 230 VAC full load
• Protections: Short circuit / Overload / Overvoltage / Overtemperature
• Overload Protection: 110 – 150 % rated output power (hiccup mode, auto recovery)
• Overvoltage Protection: 13.5 – 18 V / 27 – 35 V / 52 – 63 V
• Isolation Voltage: I/P – O/P 3 KV AC
• Insulation Resistance: > 100 MΩ @ 500 V DC 25 °C / 70 % RH
• Cooling Method: Free-air convection
• Operating Temperature: –25 °C … +65 °C (derating above 50 °C)
• Humidity Range: 20 – 90 % RH non-condensing
• Storage Temperature: –40 °C … +80 °C
• Enclosure Material: UL94V-0 flame-retardant plastic, fully encapsulated
• Ingress Protection: IP67
• Mounting Type: Surface mount – indoor / outdoor (use without direct sunlight)
• Vibration Resistance: 10 – 500 Hz, 2 G, 60 min per axis (X, Y, Z)
• Dimensions: 191 × 63 × 37.5 mm (L × W × H)
• Weight: 0.79 kg
• Safety Standards: UL 8750, CSA C22.2 No. 250.13-12, UL 879, CSA C22.2 No. 207-M89, BIS IS 15885 (for 12 V & 24 V), IEC 62368-1, EAC TP TC 004
• EMC Compliance: EN 55032 Class B / EN 61000-3-2 Class A / EN 61000-4-2,3,4,5,6,8,11 / EN 55035
• MTBF: > 3.36 million hours (Telcordia SR-332 @ 25 °C)
• Warranty: 2 Years
