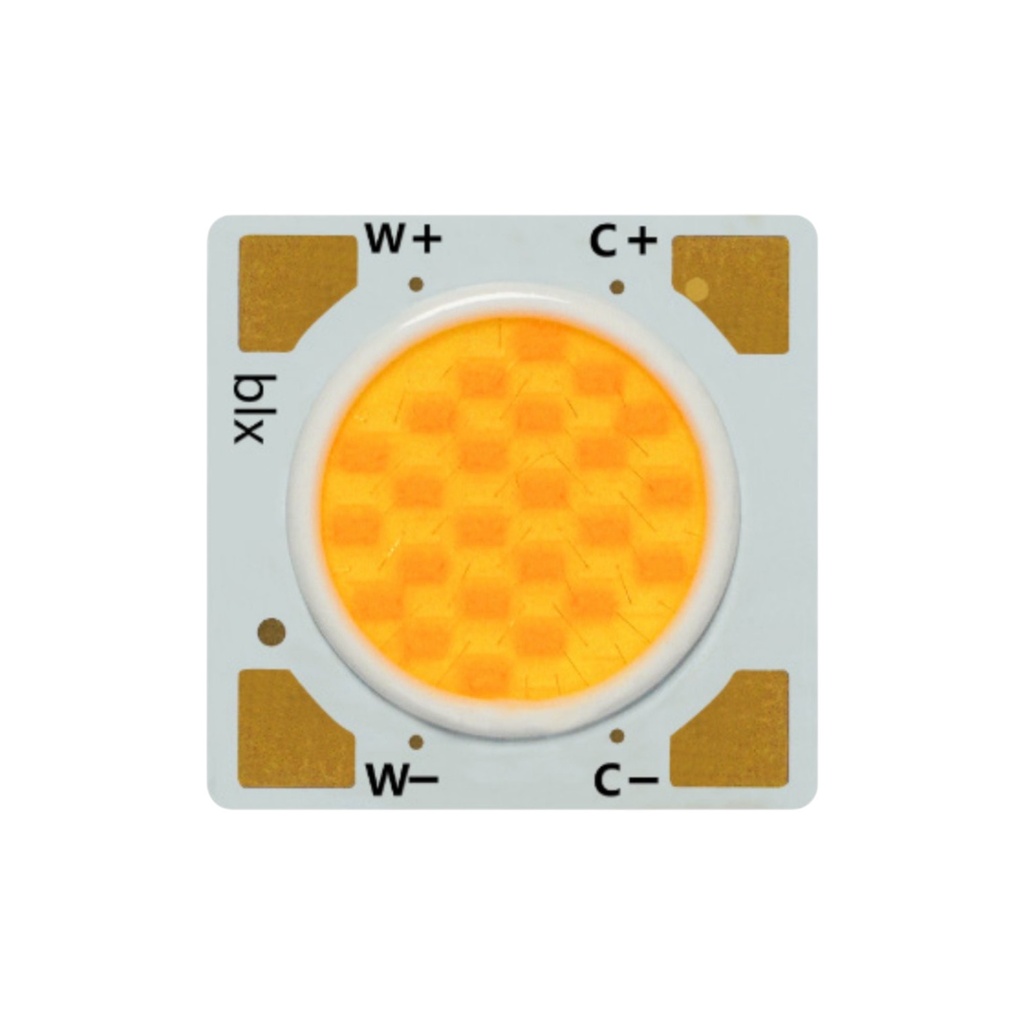

Bridgelux Vesta Gen 3 Tunable White LED Array – 2700K–6500K, CRI 90
Brand: BridgeLux
High-performance tunable white LED array delivering smooth CCT adjustment from warm to cool white. Powered by Bridgelux Vesta Gen 3 technology, it offers high efficacy, excellent color consistency, and stable thermal performance for premium architectural and commercial lighting applications.
Specifications:
- LED Type: Bridgelux Vesta Series Tunable White Gen 3 (9mm LES)
- CCT Range: 2700K – 6500K (Tunable White)
- CRI: ≥ 90 (R9 ≥ 50)
- Nominal Drive Current (Per Channel): 250 mA
- Typical Forward Voltage: 36.1 V
- Typical Power: 9 W
-
Typical Luminous Flux:
- 2700K → ~1050 lm
- 6500K → ~1200 lm
- Typical Efficacy: Up to 133 lm/W
- Viewing Angle: 130°
- Color Consistency: 3 SDCM
- Thermal Resistance (Junction to Case): 0.86 °C/W
- Operating Case Temperature (Tc): Up to 105°C
- Maximum Drive Current (Per Channel): 480 mA
- Maximum Combined Drive Current: 480 mA
- Electrical Insulation Rating: IEC 62031 compliant
- Form Factor: 9mm LES LED Array
- Application: Indoor architectural, tunable white luminaires, premium downlights, linear and panel systems
