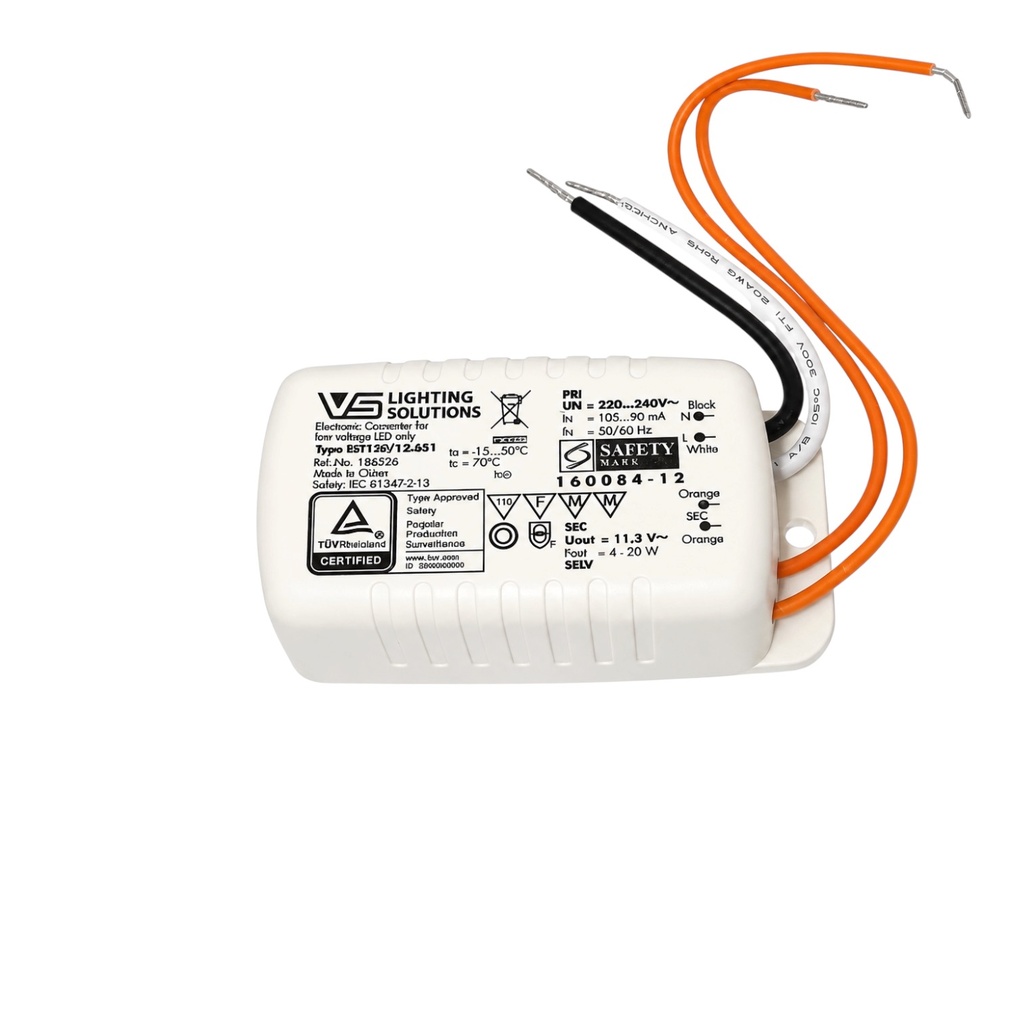

VS Lighting Solutions Electronic LED Converter 20W, 12V
Brand: Vossloh-Schwabe
The VS Lighting Solutions EST120/12.651 is a compact electronic converter designed to power low-voltage LED luminaires. It provides a stabilized 11.3 V AC SELV output for LED loads between 4 W and 20 W, making it suitable for cabinet lighting, display lighting, furniture lighting, and decorative luminaires. The converter features electronic overload and short-circuit protection and is certified to IEC 61347 safety standards for independent installation
Specifications:
- Brand: VS Lighting Solutions (Vossloh-Schwabe)
- Model: EST120/12.651
- Reference No.: 186526
- Product Type: Electronic Converter for Low Voltage LED
- Input Voltage: 220–240 V AC
- Input Frequency: 50/60 Hz
- Input Current: 105–90 mA
- Output Voltage: 11.3 V AC
- Output Power: 4–20 W
- Output Type: SELV
- Operating Temperature (Ta): -15°C to +50°C
- Maximum Case Temperature (Tc): 70°C
- Protection Class: Class II
- Safety Standard: IEC 61347-2-13
- Certifications: TÜV Rheinland Certified, Safety Mark
- Electronic Protection: Short-circuit protection, overload protection, thermal protection
- Installation: Independent installation
- Housing Material: Flame-retardant insulated plastic
- Application: LED cabinet lights, furniture lighting, display lighting, decorative and low-voltage indoor luminaires
- Country of Manufacture: China
