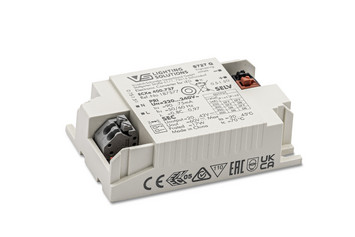

Vossloh-Schwabe EasyLine DIP Switch C-R5 Constant Current LED Driver 11-21W - Selectable Output Current

Specifications:

• Brand: Vossloh-Schwabe
• Series: EasyLine DIP Switch C-R5
• Product Type: Constant Current LED Driver
• Model Variants: 186841 / 186842 / 186843
• Output Type: Constant Current (CC)
• Input Voltage: 220–240 VAC ±10%
• Input Frequency: 50–60 Hz
• Power Factor: >0.98 (Full Load)
• Open Circuit Voltage: 60 VDC
• Protection Class: Class II
• Protection Rating: IP20
• Safety: SELV
• Efficiency: Up to 90%
• Ripple Current: <5%
• THD: <10%

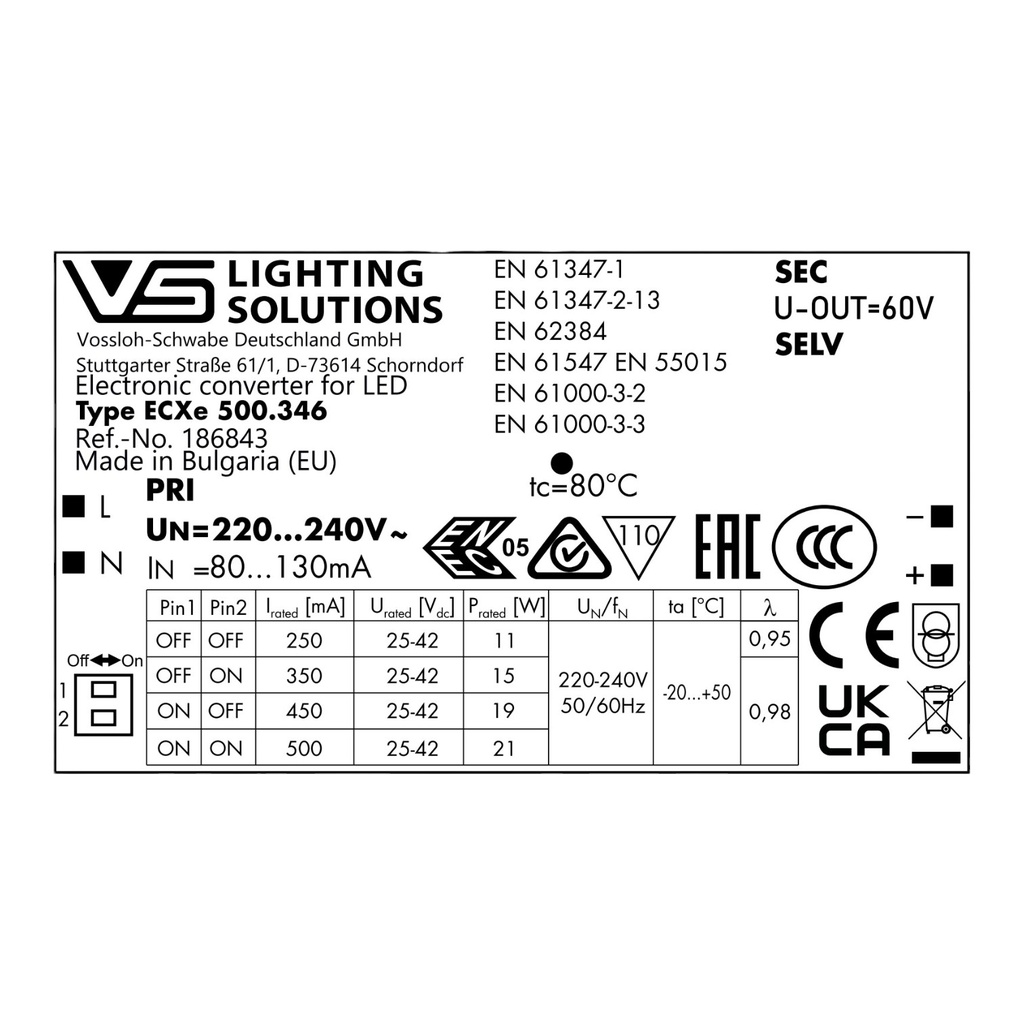

• Output Current (Selectable via DIP Switch):
  • 186843: 250 / 350 / 450 / 500 mA
• Output Voltage:
  • 186843: 25–42 VDC
• Maximum Output Power:
  • 186843: Up to 21 W
• Dimensions: 97 × 43 × 29.5 mm
• Operating Temperature: -20°C to +50°C
• Maximum Case Temperature (tc): 80°C
• Expected Lifetime: Up to 50,000 Hours
• Terminal Type: Push-in Terminals
• Wire Size: 0.5–1.5 mm² (Solid), 0.75–1.5 mm² (Stranded)
• Stripping Length: 7–8 mm
• Secondary Cable Length: Maximum 2 m
• Mounting: Built-in Luminaire / Independent Installation (with optional cord grips)
• Features: Selectable output current via DIP switch, compact housing, high efficiency, low ripple current, high power factor, electronic short-circuit protection, overload protection, overtemperature protection, no-load protection, transient surge protection up to 1 kV, long service life.
• Certifications / Standards / Warranty: CE, EN 61347-1, EN 61347-2-13, EN 61547, EN 61000-3-2, EN 62384, EN 55015, EN 61000-3-3, SELV, IP20, Class II, 5-Year Warranty.
• Applications: LED Downlights, LED Spotlights, Retail Lighting, Shop Lighting, LED Panels, Commercial Lighting, Architectural Lighting, Indoor Luminaires.
