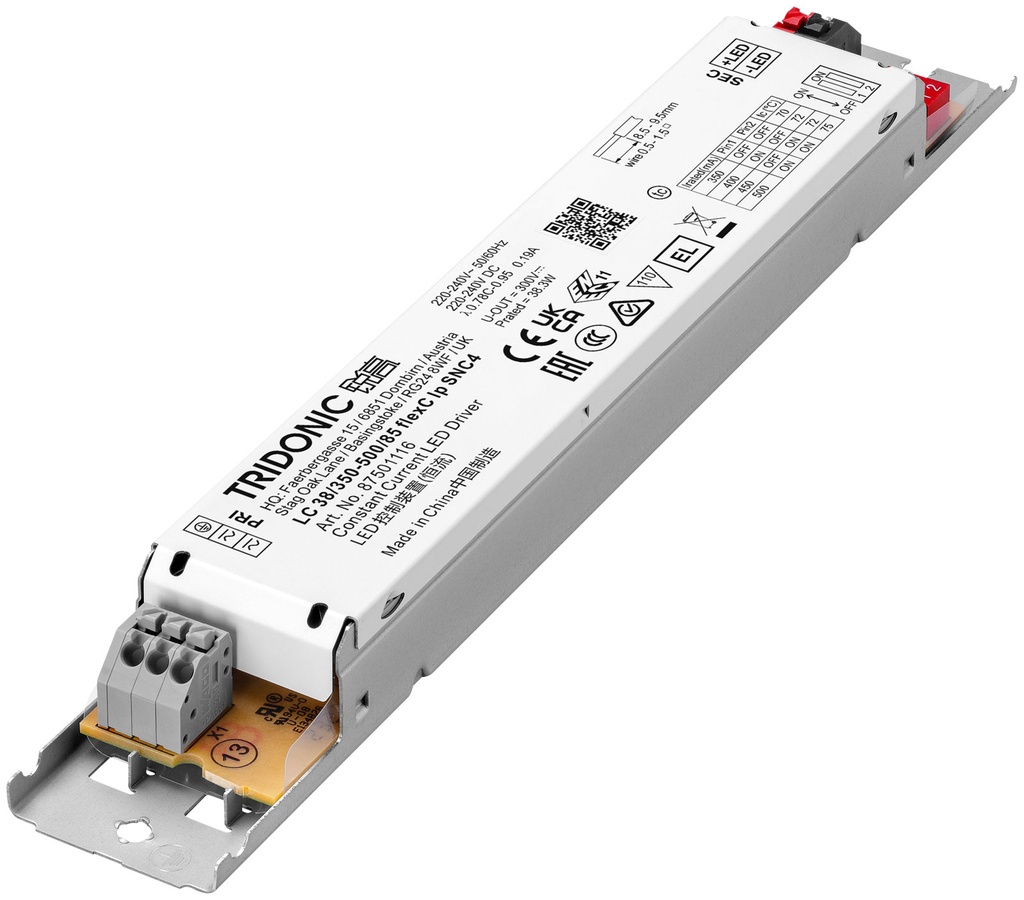

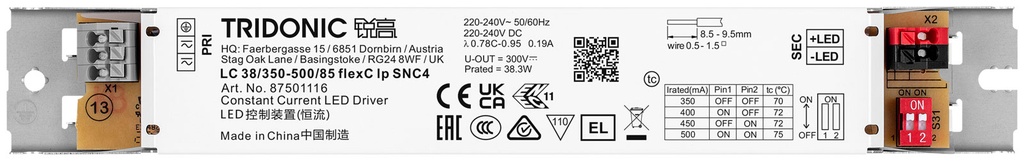

Tridonic LC 38W 350–500mA 85V flexC lp SNC4 LED Driver
Brand: Tridonic
Professional constant current LED driver from Tridonic’s essence series, designed for linear lighting, downlights, spotlights, decorative luminaires, and architectural applications. Features selectable output current, high efficiency, multiple protection systems, and long operational lifetime for reliable indoor lighting installations.
Specifications:
- Brand: Tridonic
- Series: essence series
- Model: LC 38W 350–500mA 85V flexC lp SNC4
- Article Number: 87501116
- Driver Type: Constant Current LED Driver
- Output Power: Up to 38.3W
-
Selectable Output Current:
- 350mA
- 400mA
- 450mA
- 500mA
- Output Voltage Range: 35–85V
- Maximum Output Voltage: 300V
- Input Voltage: 220–240V AC
- AC Voltage Range: 198–264V
- DC Voltage Range: 176–280V
- Efficiency: Up to 90%
- Power Factor: 0.95
- THD: <15%
- Dimming: Non-Dimmable
- Protection Type: IP20
- Protection Class: Class I
-
Protection Features:
- Overload Protection
- Short-Circuit Protection
- No-Load Protection
- Overtemperature Protection
- Housing Material: Metal
- Housing Color: White
- Operating Temperature: -20°C to +60°C
- Storage Temperature: -40°C to +80°C
- Lifetime: Up to 100,000 hours
- Switching Cycles: 50,000 cycles tested

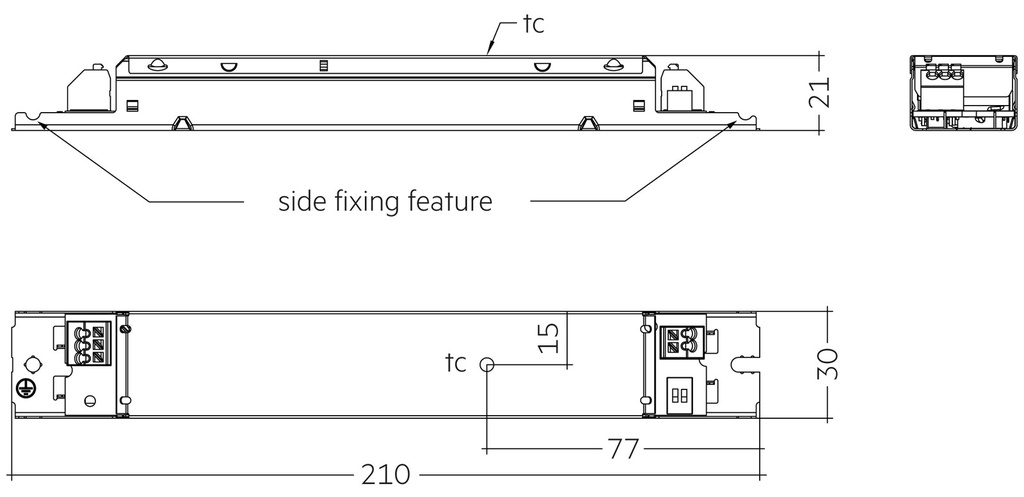

- Dimensions: 210 × 30 × 21 mm
- Mounting Hole Spacing: 198 mm
-
Applications:
- Linear Lighting
- Downlights
- Spotlights
- Decorative Lighting
- Free-standing Luminaires
- Area & Wall Lighting
-
Certifications & Standards:
- CE
- UKCA
- RoHS
- EN 61347-1
- EN 61347-2-13
-
EN 62384
