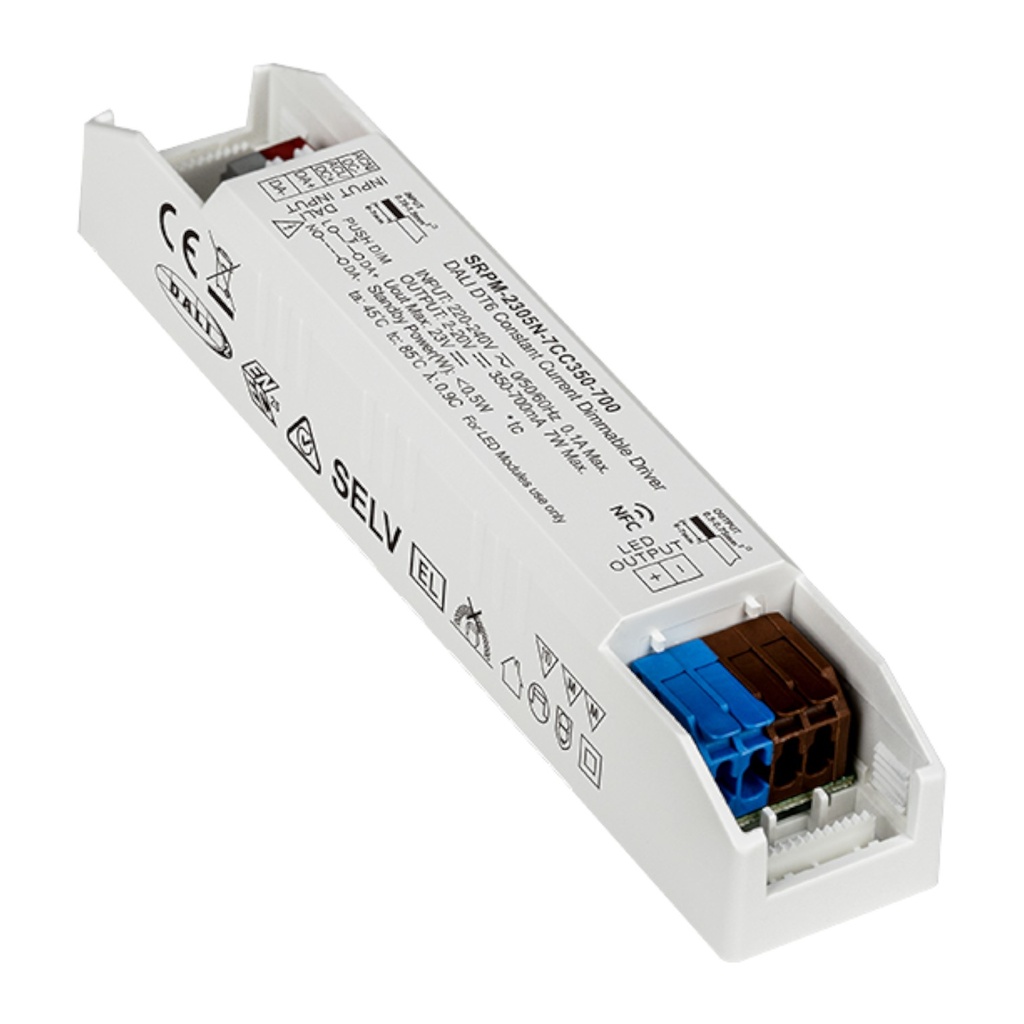

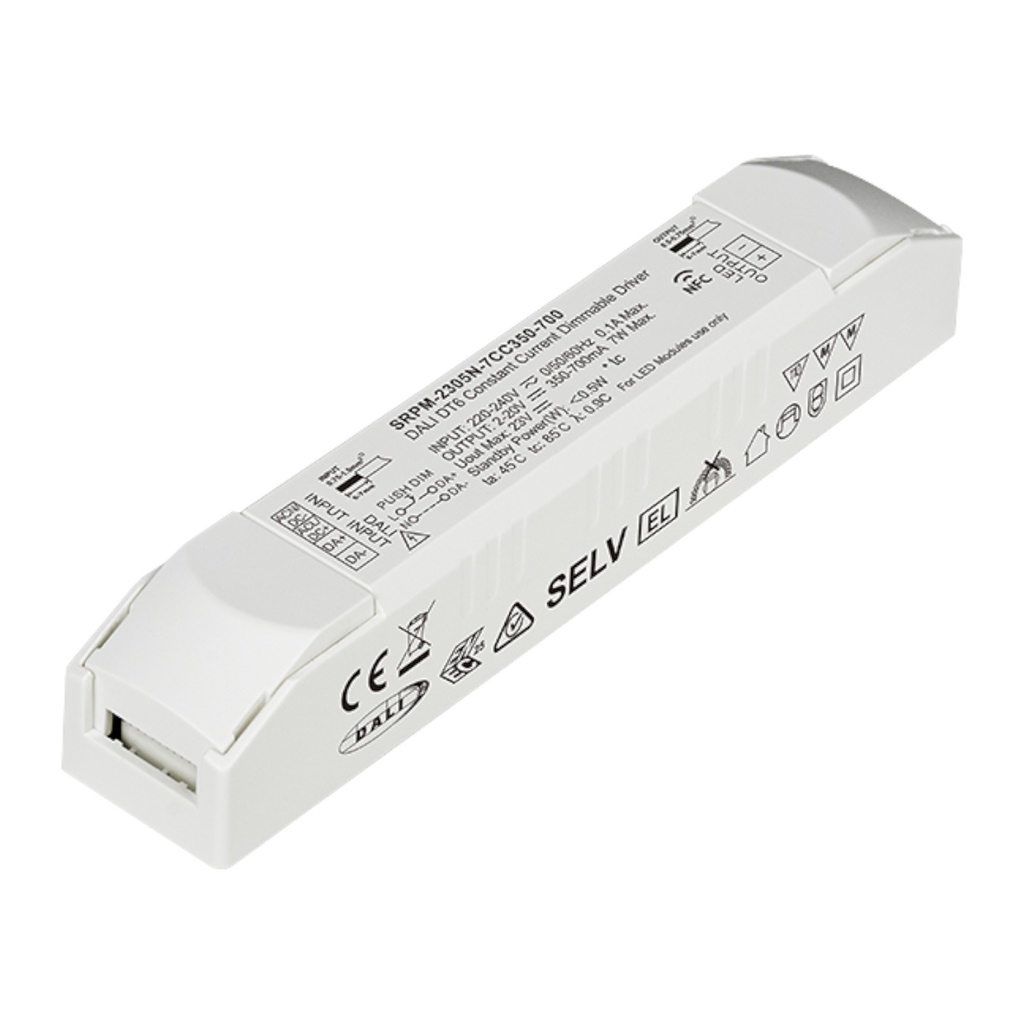

Sunricher SRPM-2305N-7CC350-700 Mini DALI DT6 NFC LED Driver – 7W
Brand: SUNRICHER
Warranty: 5 Years
Compact constant current LED driver with DALI-2 DT6 dimming, NFC programmable output current, and ultra-smooth deep dimming performance. Designed for mini downlights, spotlights, and architectural lighting applications requiring reliable operation, flexible control, and compact installation space.
Documents
Specifications:
- Brand: Sunricher
- Model: SRPM-2305N-7CC350-700
- Driver Type: Constant Current Mini DALI LED Driver
- Rated Power: Max. 7W
- Input Voltage: 220–240V AC / DC
- Voltage Range: 196–264V AC / DC
- Frequency Range: 0 / 50 / 60Hz
- Output Voltage: 2–20V DC
- Selectable Output Current: 350–700mA via NFC Tool
- Default Output Current: 350mA
- Current Accuracy: ±3%
- Dimming Protocol: DALI DT6
- Dimming Interface: DALI-2 / AC Push Dim
- Dimming Range: 0.01% – 100%
- Dimming Method: Amplitude / CCR Dimming
- Dimming Curve: Linear / Logarithmic Selectable
- NFC Programming: Yes
- DALI Address & Scene Configuration: Via NFC Tool
- CLO Function: Supported
- Corridor Dim Function: Supported
- Efficiency: >70%
- Power Factor: >0.9
- THD: ≤15%
- Standby Power Consumption: <0.5W
-
Protection Features:
- Short Circuit Protection
- Over Current Protection
- Over Temperature Protection
- Surge Protection 1KV
- Housing: Fully Isolated Plastic Housing
- Protection Rating: IP20
- Class: Class II
- Operating Temperature: -25°C to +45°C
- Max Case Temperature: Tc = 85°C
- Humidity: 10–95% RH non-condensing

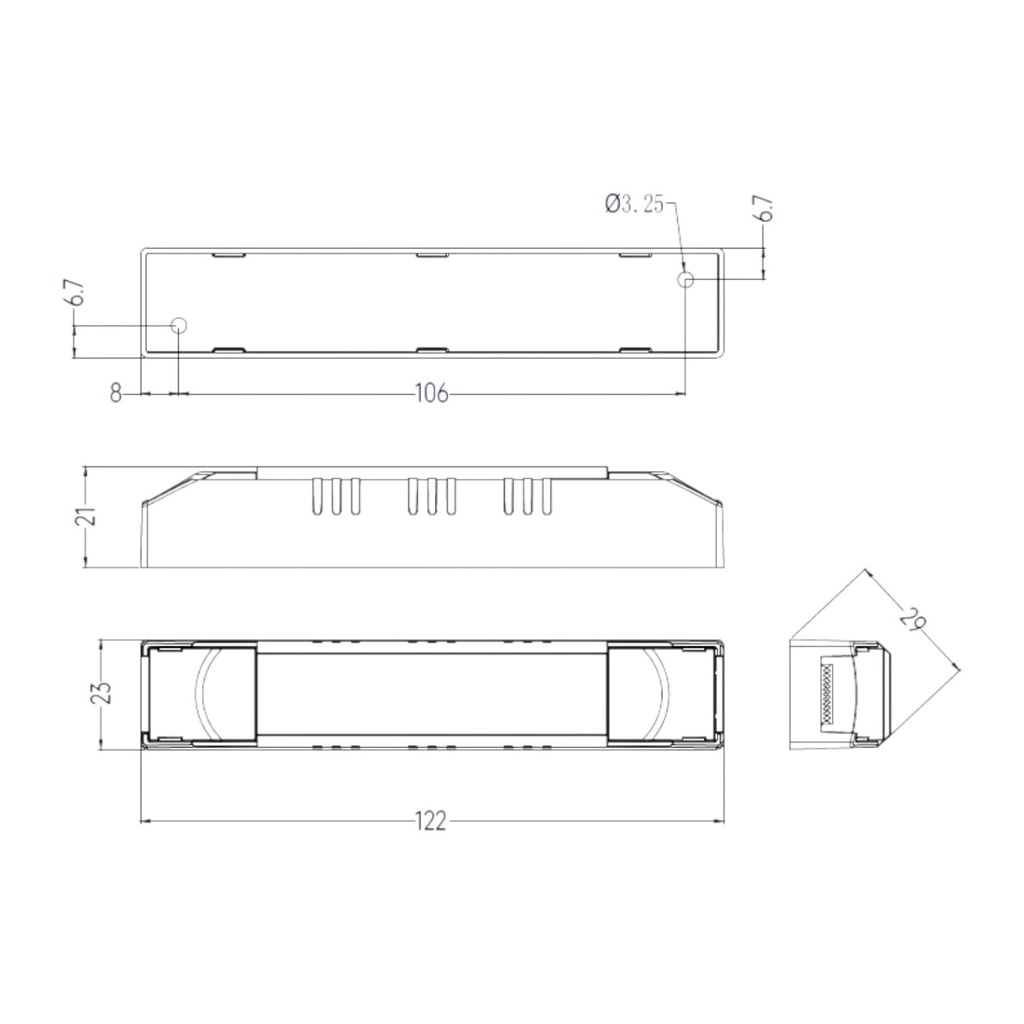

- Dimensions: 122 × 23 × 21 mm
-
Lifetime:
- Up to 100,000 Hours @ 30°C
- 80,000 Hours @ 40°C
- 40,000 Hours @ 45°C
- Applications: Mini downlights, spotlights, decorative lighting, architectural lighting, indoor LED luminaires
- Certifications: CE, UKCA, SELV, RoHS, DALI-2
- Warranty: 5 Years
