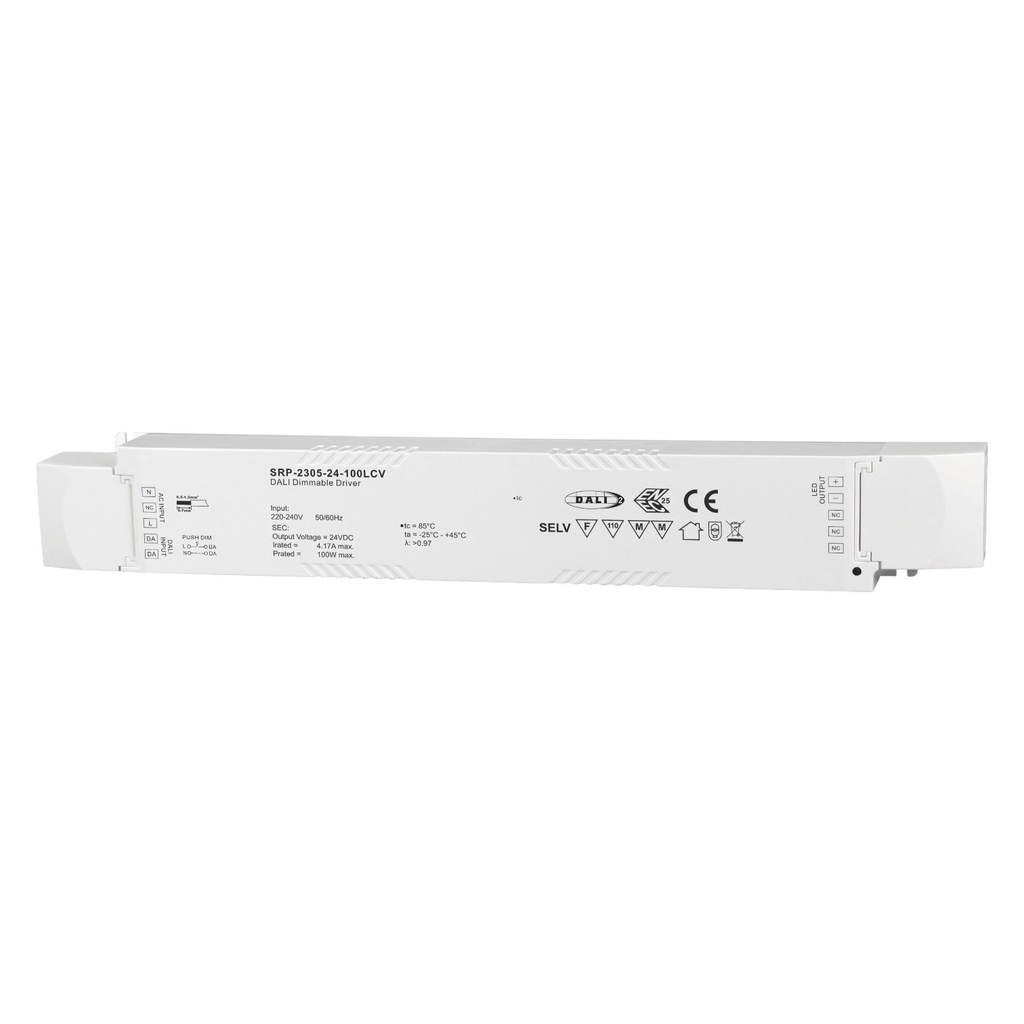

Sunricher DALI Constant Voltage LED Driver – 24V DC, 1-Channel

http://licht-eg.com/web/image/product.template/10309/image_1920?unique=6859840
Brand: SUNRICHER
Warranty: 5 Years
Professional-grade 100W DALI DT6 constant voltage LED driver with 24V DC output, supporting DALI-2 and Push Dim control. Designed for smooth 0.1–100% PWM dimming, making it ideal for LED strips and architectural lighting applications requiring precise dimming performance.

0.00 LE 0.0 EGP 0.00 LE

0.00 LE

Get a Quota

  • Watt

This combination does not exist.

Contact Us

Terms and Conditions
14-day money-back guarantee
Shipping: 3-7 Business Days

Specifications:

  • Driver Type: Constant Voltage LED Driver
  • Output Power: 100W
  • Input Voltage: 220–240V AC
  • Input Frequency: 50/60Hz
  • Output Voltage: 24V DC
  • Output Current: 4.17A Max.
  • Output Channels: 1 Channel
  • Dimming Protocol: DALI DT6 / Push Dim
  • Dimming Range: 0.1%–100%
  • Dimming Method: PWM (Pulse Width Modulation)
  • Dimming Curve: Linear / Logarithmic (Selectable)
  • Power Factor: >0.97
  • Efficiency: 93%
  • THD: ≤9%
  • Standby Power: <0.5W
  • IP Rating: IP20
  • Dimensions: 306.6 × 43 × 30 mm
  • Working Temperature: -25°C to +45°C
  • Maximum Case Temperature: 85°C
  • Protection: Over Voltage, Over Load, Short Circuit, Over Temperature
  • Safety Standards: IEC/EN 61347-1, IEC/EN 61347-2-13
  • EMC Standards: EN55015, EN61000-3-2 Class C, EN61000-3-3, EN61000-4-2/3/4/5/6/8/11
  • Warranty: 5 Years
  • Applications: LED strip lighting, Cove lighting, Architectural lighting, Commercial lighting, Residential lighting, DALI lighting systems, Smart lighting installations.
