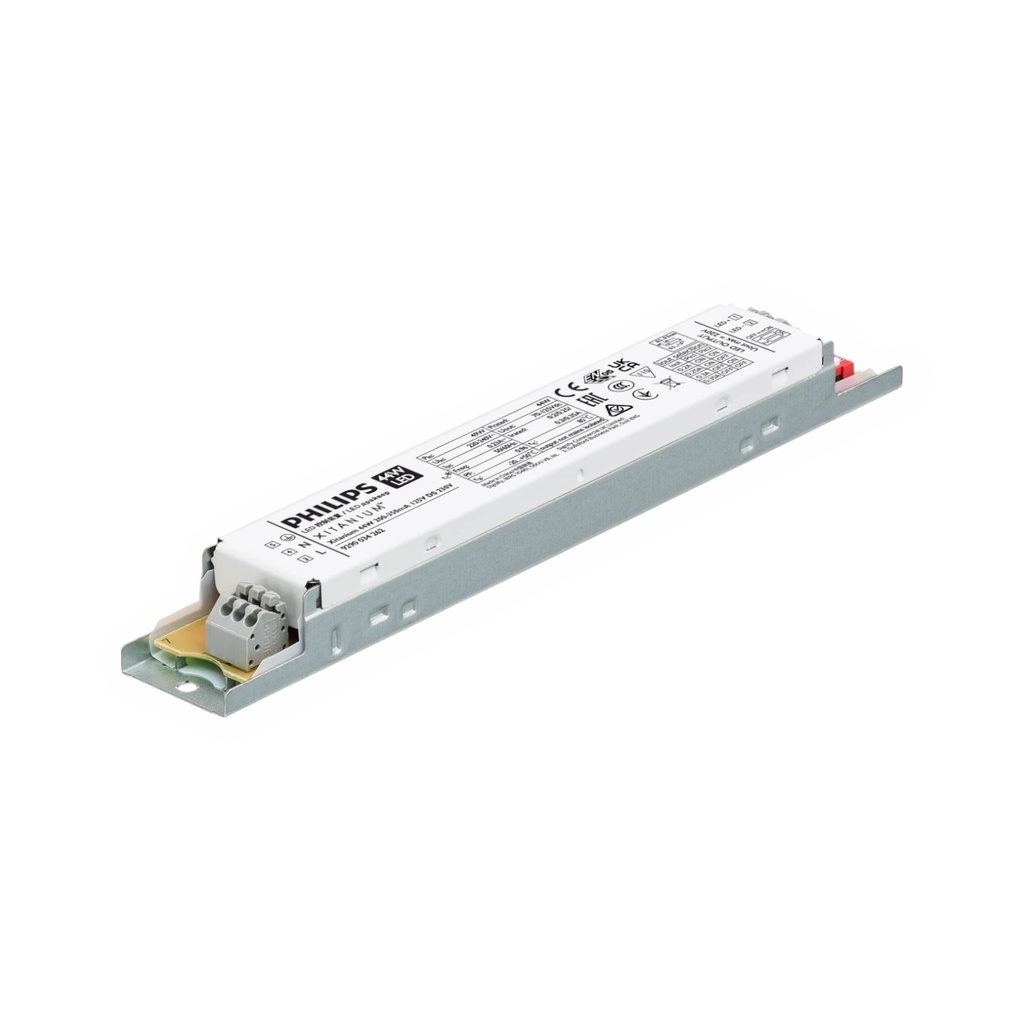

Philips Xitanium Non-Isolated Dip Switch LED Driver – 44W, 200–350mA, 125V

http://licht-eg.com/web/image/product.template/10638/image_1920?unique=0f3ec12
Brand: Philips

The Philips Xitanium 44W LED Driver is a constant-current, non-isolated driver designed for linear LED lighting applications, including recessed, surface-mounted, suspended, and waterproof luminaires. It features four selectable output currents through DIP switches, allowing flexibility across different LED module configurations. With high efficiency, a power factor of 0.95, low output-current ripple, and an Emergency Lighting (EL) function, it provides reliable performance for professional lighting installations. The driver includes open-load, short-circuit, and overload protection with automatic recovery.

0.00 LE 0.0 EGP 0.00 LE

0.00 LE

Get a Quota

This combination does not exist.

Contact Us

Terms and Conditions
14-day money-back guarantee
Shipping: 3-7 Business Days

Specifications:

  • Brand: Philips
  • Product Series: Xitanium
  • Model: Xi 44W 200-350mA 125V DS 230V EL G5
  • 12NC: 9290 048 31201
  • Driver Type: Constant-current, non-isolated LED driver
  • Rated Output Power: 43.7W
  • Output Power Range: 12–43.7W
  • Selectable Output Current: 200mA / 250mA / 300mA / 350mA
  • Output Voltage Range: 60–125V DC
  • Maximum Output Voltage: 220V RMS
  • Input Voltage: 220–240V AC rated; 198–264V AC operating range
  • Input Frequency: 50–60Hz rated
  • Efficiency: 91%
  • Power Factor: 0.95
  • Total Harmonic Distortion (THD): 15% at maximum output power
  • Output Current Ripple: ≤4% low-frequency, ≤15% high-frequency
  • Current Adjustment: DIP switch
  • Emergency Lighting Function: Yes (EL function)
  • Protection: Open-load, short-circuit, and over-power protection with automatic recovery
  • Isolation: Non-isolated input/output
  • Protection Rating: IP20
  • Luminaire Protection Class: Class I
  • Lifetime: 100,000 hours at specified Tc-life conditions
  • Operating Ambient Temperature: −30°C to +55°C
  • Dimensions (L × W × H): 168 × 30 × 21 mm
  • Mounting Hole Distance: 156.4 mm
  • Mounting Hole Diameter: 4.3 mm
  • Weight: 94g
  • Housing Color: White
  • Certifications: CB, CCC, CE, EAC, EL, ENEC, RCM, UA, UKCA
  • Applications: Indoor linear lighting, recessed lighting, surface-mounted lighting, suspended lighting, waterproof luminaires
