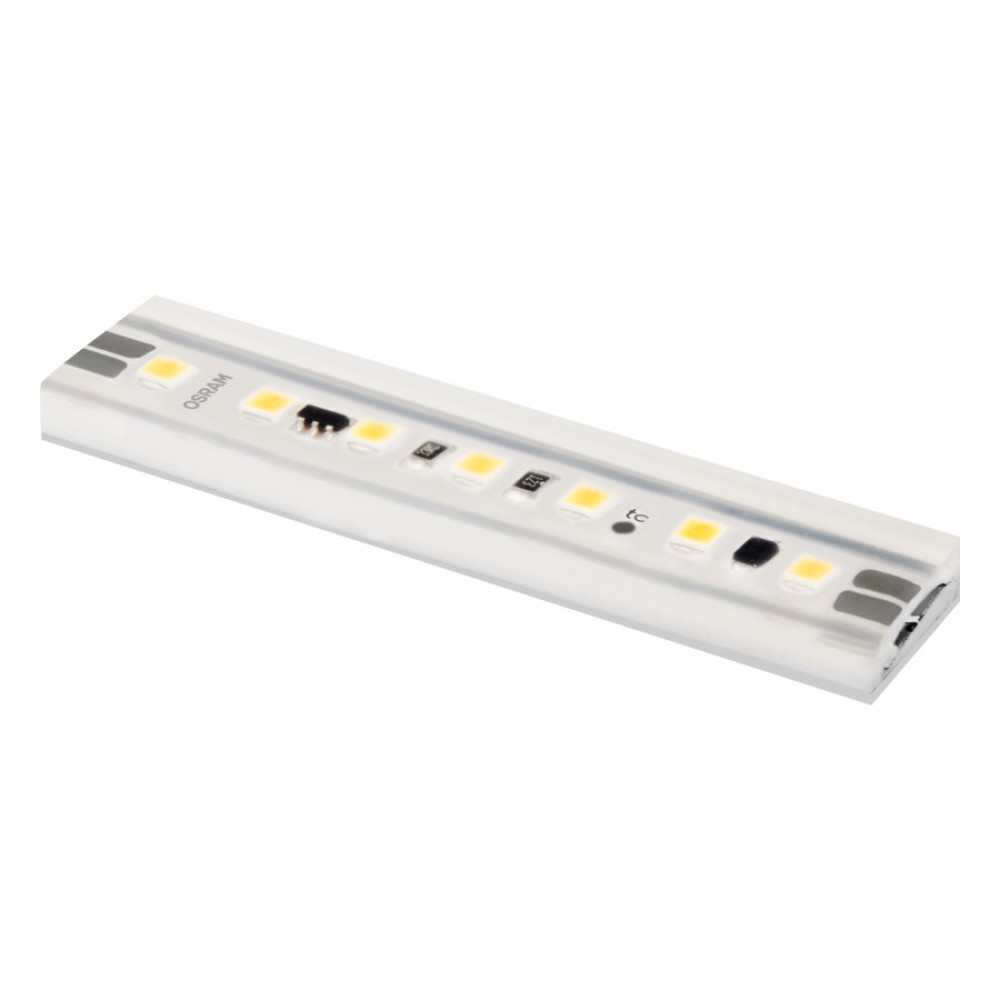

OSRAM TEC Flex Protect Shortpitch LED Strip – 1500 lm/m, 24V, 2700K, 140 LED/m, CRI80, IP66
Brand: OSRAM
Premium waterproof LED strip from OSRAM designed for architectural and professional lighting projects. Featuring shortpitch LED spacing for highly uniform illumination, IP66 protection, and flexible self-adhesive installation, it is ideal for wet areas, cove lighting, shelving, and modern interior applications.
| Light Temperature: 2700K |
Documents
Specifications:
- Brand: OSRAM
- Series: TEC Flex Protect Shortpitch 1500
- Model: TFP1500S-G1-827-05
- Product Type: Waterproof Flexible LED Strip
- Input Voltage: 24V DC
- Input Voltage Range: 23–25V DC
- Power Consumption: 13.2W/m
- Total Power: 66W (5m roll)
- Color Temperature: 2700K (Warm White)
- Light Output: 1530 lm/m
- Total Luminous Flux: 7650 lm
- Efficacy: 115.9 lm/W
- CRI: Ra 80
- Color Consistency: ≤3 SDCM
- LED Density: 140 LED/m
- LED Pitch: 7.14 mm
- Beam Angle: 120°
- Length: 5 meters
- Cutting Unit: 50 mm (7 LEDs)
- Width: 11.1 mm
- Height: 4.1 mm
- Weight: 278 g
- IP Rating: IP66
- Suitable Areas: Wet or damp locations
- Dimming: Yes (PWM compatible)
- Mounting: Self-adhesive backing
- Minimum Bending Radius: 50 mm
- With End Piece: Yes
- Operating Temperature: -25°C to +50°C
- Tc Point Range: -25°C to +80°C
- Storage Temperature: -30°C to +85°C
- Lifetime: 50,000 hours
- Lumen Maintenance: L70
- Switching Cycles: 30,000
- Applications: Cove lighting, shelf lighting, retail, shops, supermarkets, architectural integration, offices, corridors, residential interiors
-
Certifications: CE, ENEC, EAC
