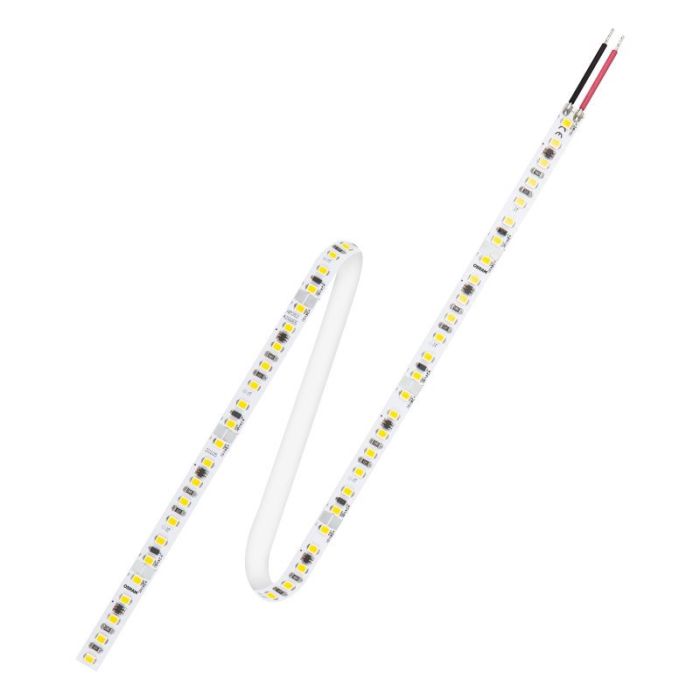

OSRAM TEC Flex Shortpitch LED Strip – 1500 lm/m, 24V, 2700K, 140 LED/m, CRI80
Brand: OSRAM
Professional-grade flexible LED strip designed for seamless linear lighting with high homogeneity thanks to short LED pitch spacing. The OSRAM TEC Flex Shortpitch provides smooth warm white illumination, excellent consistency, and easy plug-and-play installation for cove lighting, retail shelving, architectural details, and modern interiors.
| Light Temperature: 2700K |
Documents
Specifications:
- Brand: OSRAM
- Series: TEC Flex Shortpitch 1500
- Model: TF1500S-G1-827-05
- Product Type: Flexible LED Strip Light
- Input Voltage: 24V DC
- Operating Voltage Range: 23–25V DC
- Power Consumption: 13.2W/m
- Total Power (5m Roll): 66W
- Color Temperature: 2700K Warm White
- Light Color: White
- Luminous Flux: 1560 lm/m
- Total Luminous Flux: 7800 lm
- Efficacy: 118.2 lm/W
- CRI: Ra 80
- Color Consistency: ≤3 SDCM
- LED Density: 140 LED/m
- LEDs per Cutting Unit: 7 LEDs
- Beam Angle: 120°
- Length: 5 meters
- Cutting Unit Length: 50 mm
- PCB Width: 8 mm
- Height: 1.5 mm
- Weight: 69 g
- Installation: Self-adhesive backing tape
- Bending Radius: Minimum 20 mm
- Dimming: Yes (PWM compatible)
- IP Rating: IP00 (Indoor Use)
- Operating Temperature: -20°C to +50°C
- Tc Point Range: -25°C to +80°C
- Storage Temperature: -30°C to +85°C
- Lifetime: 50,000 hours
- Switching Cycles: 30,000
- Applications: Cove lighting, shelf lighting, retail displays, architectural integration, offices, corridors, residential interiors
- Certifications: CE, ENEC, EAC
