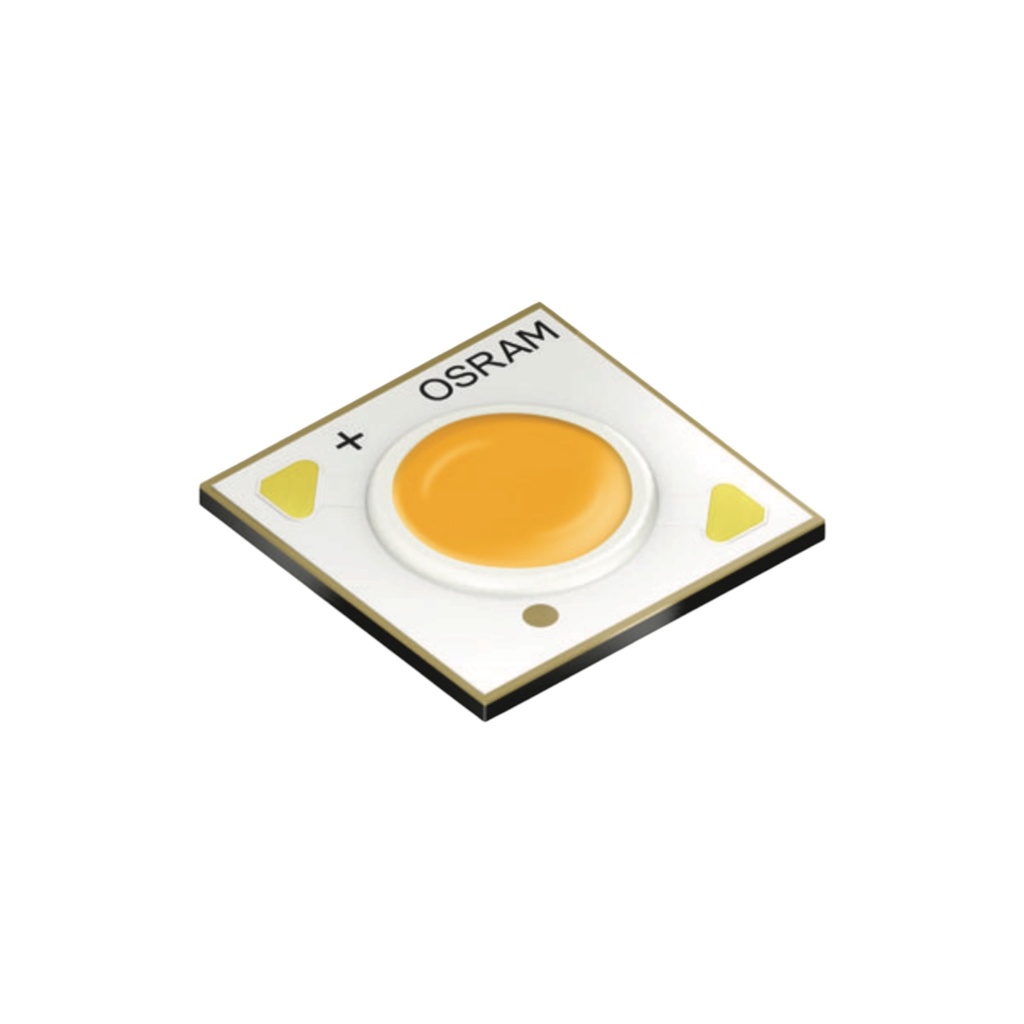

OSRAM SOLERIQ® S 9 GW KAFFBA.CM - 11W COB LED – 3000K, CRI90, 300mA
Brand: OSRAM
The OSRAM SOLERIQ® S 9 GW KAFFBA.CM is a professional high-efficiency COB LED designed for premium indoor lighting applications requiring compact size, high luminous flux, and excellent color rendering. With CRI90 performance and uniform Lambertian light distribution, this COB module is ideal for spotlights, downlights, retail lighting, and architectural luminaires. The compact 15.8 mm package enables efficient thermal management and high lumen density in modern lighting fixtures.
| Light Temperature: 3000k |
Documents
Specifications:
- Brand: OSRAM
- Model: GW KAFFBA.CM
- Series: SOLERIQ® S 9
- LED Type: COB LED Module
- Power Consumption: 11W
- Typical Luminous Flux: 1356 lm / 1530 lm
- Luminous Efficacy: 127 lm/W
- Color Temperature: 3000K
- CRI: 90
- Forward Voltage: 35.5V DC
- Forward Current: 300mA
- Beam Angle: 120°
- Dimensions: 15.8 × 15.8 × 1.5 mm
- Operating Temperature: -40°C to +105°C
- Junction Temperature: Max. 125°C
- ESD Protection: 2kV HBM
- Mounting Type: COB Mounting
- Application: Downlights, Spotlights, Track Lights, Indoor Architectural Lighting, Retail Lighting
- Country of Origin: China
- Certifications: RoHS, UL Recognized
