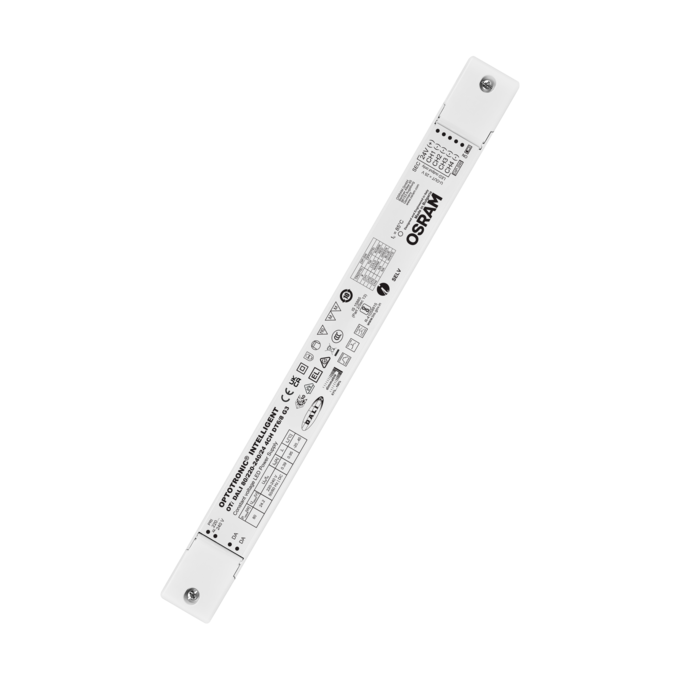

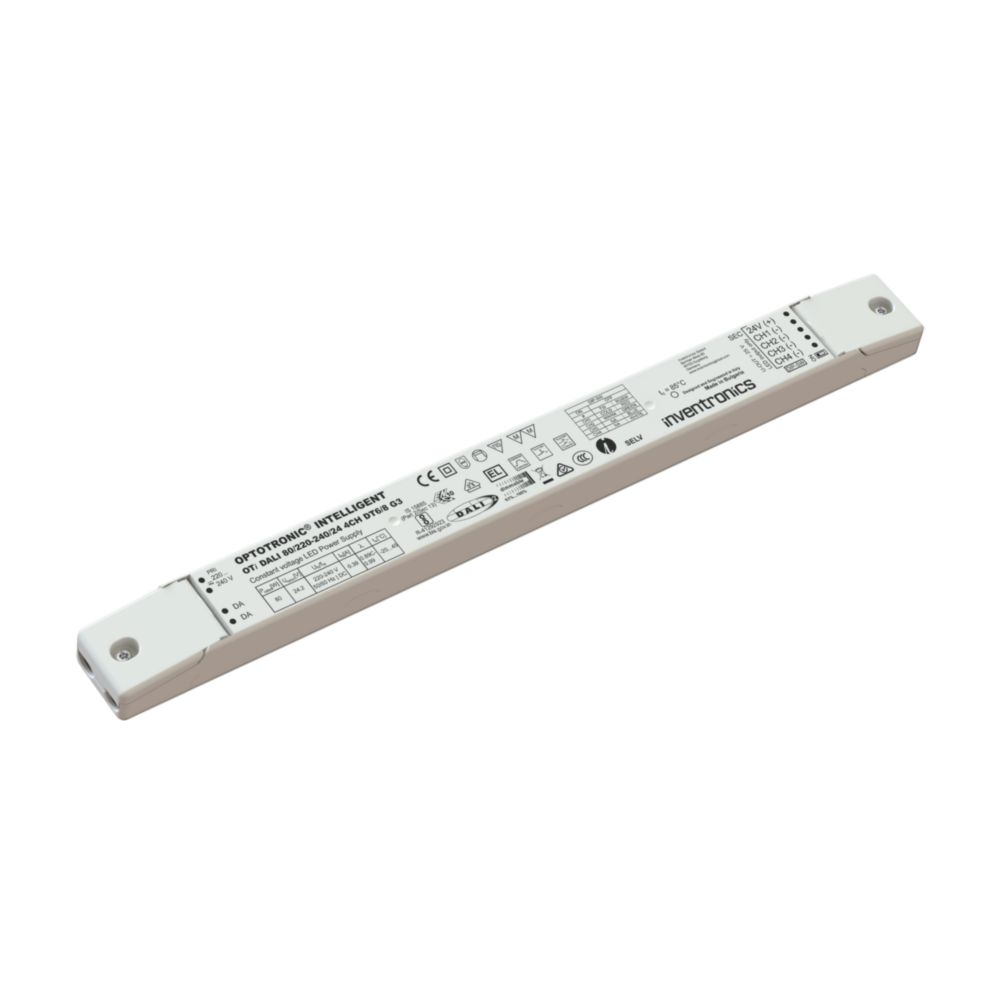

OSRAM OTi DALI G3 LED Power Supply – 80W, 24V, 4CH DT6/DT8 Dimmable
Brand: OSRAM
Premium 24V constant-voltage LED driver with intelligent DALI-2 control and 4-channel output. Designed for tunable white and RGB/RGBW lighting systems, this OSRAM OTi G3 driver delivers smooth flicker-free dimming, high efficiency, and advanced smart control for architectural and professional lighting projects.
Documents
Specifications:
- Brand: OSRAM
- Series: OTi DALI G3
- Model: OTi DALI 80/220-240/24 4CH DT6/8 G3
- Driver Type: Constant Voltage LED Power Supply
- Dimming: Yes – DALI-2 / Corridor / Touch DIM
- Output Voltage: 24V DC
- Working Voltage: 24.2V
- Nominal Output Power: 80W
- Channels: 4 Channel Output
- DT Mode: DT6 / DT8 compatible
- Power Sharing: Output power can be distributed across channels
- Input Voltage: 220–240V AC
- Operating Range: 198–264V AC / 176–276V DC
- Frequency: 0 / 50 / 60 Hz
- Power Factor: >0.95
- THD: <5%
- Efficiency: Up to 93%
- Dimming Range: 0.1% – 100%
- PWM Frequency: >2 kHz (No visible flicker)
- Flicker Metric: Pst LM ≤1
- Stroboscopic Metric: SVM ≤0.4
- Isolation: SELV
- Protection Class: Class II
-
Protection Features:
- Automatic Overheating Protection
- Automatic Overload Protection
- Automatic Short Circuit Protection
- No-load Proof
- IP Rating: IP20
- Housing Material: Plastic
- Connection Type: Screw terminal
- Dimensions: 346 × 32 × 22 mm
- Weight: 191 g
- Operating Temperature: -20°C to +45°C
- Storage Temperature: -40°C to +85°C
- Max tc Temperature: 75°C
- Lifetime: 50,000 hours
- Applications: Cove lighting, wall washer, corridor lighting, handrail lighting, luminous ceilings, linear luminaires
- Certifications: BIS, CCC, EAC, ENEC 10, RCM, VDE, VDE-EMC
