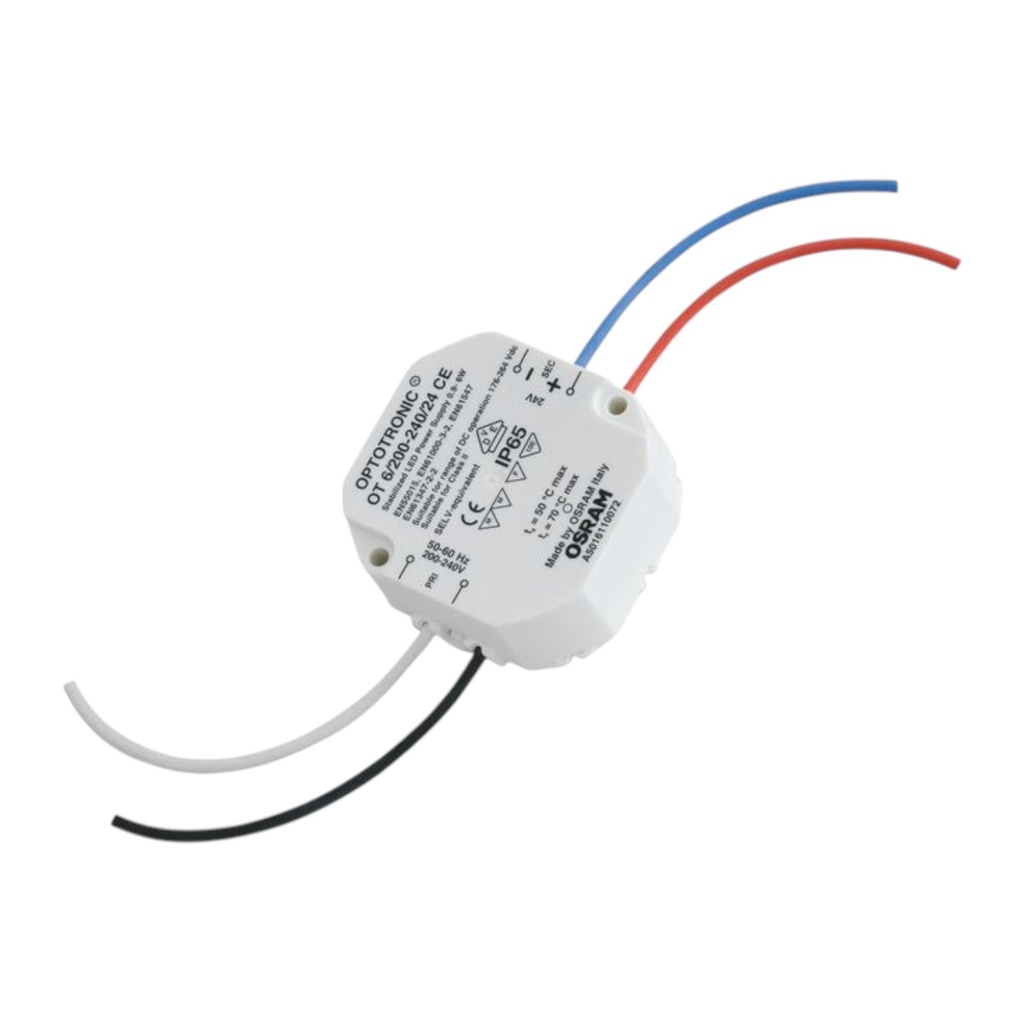

OSRAM OPTOTRONIC OT 6/200–240/24 CE Constant Voltage LED Driver – 6W, 24V DC, IP65
Brand: OSRAM
The OSRAM OPTOTRONIC OT 6/200–240/24 CE is a compact constant-voltage LED driver designed to supply reliable 24V DC power to LED modules and luminaires. It provides a stable 6W output with a wide 180–264V AC input range and incorporates automatic reversible protection against short circuit, overload, and overheating. With IP65 protection, Class II construction, SELV isolation, and an operating temperature range of -20°C to +50°C, it is suitable for both indoor and outdoor LED installations, including façades, signage, and architectural lighting.
Documents
Specifications:
- Brand: OSRAM
- Series: OPTOTRONIC
- Model: OT 6/200–240/24 CE
- Product Type: Constant Voltage LED Driver
- Dimming: Non-Dimmable
- Rated Output Power: 6W
- Output Voltage: 24V DC
- Output Power Range: 0.9–6W
- Input Voltage: 180–264V AC
- Nominal Input Voltage: 200–240V AC
- Input Frequency: 50/60Hz
- Nominal Input Current: 0.08A
- Efficiency: 80%
- Power Factor: 0.50 minimum
- Galvanic Isolation: SELV
- Protection: Short Circuit, Overload, Overtemperature
- Protection Recovery: Automatic and reversible
- No-Load Protection: Yes
- Protection Class: Class II
- IP Rating: IP65
- Operating Temperature: -20°C to +50°C
- Maximum Tcase: 70°C
- Lifetime: Up to 50,000 hours
- Maximum Cable Length to LED Module: 10m
- Housing Material: Plastic
- Dimensions: 51 × 50 × 22mm
- Weight: 52g
- Suitable for: Indoor and Outdoor Installations, Facades, Public Squares, Cruise Ships, Signage
- Certifications/Standards: CE, VDE, ENEC 10, CB, IEC 61347-2-13, IEC 62384, EN 55015, IEC 61000-3-2, IEC 61000-3-3, IEC 61547
