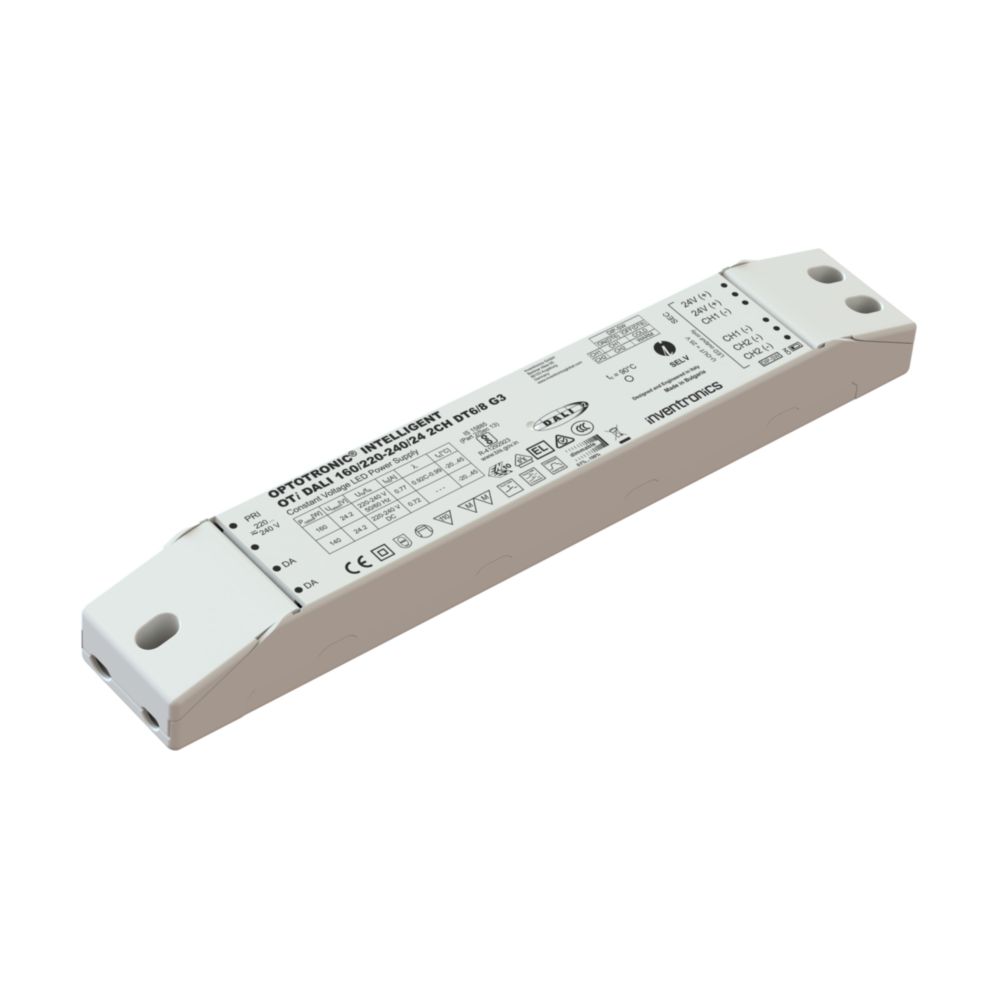

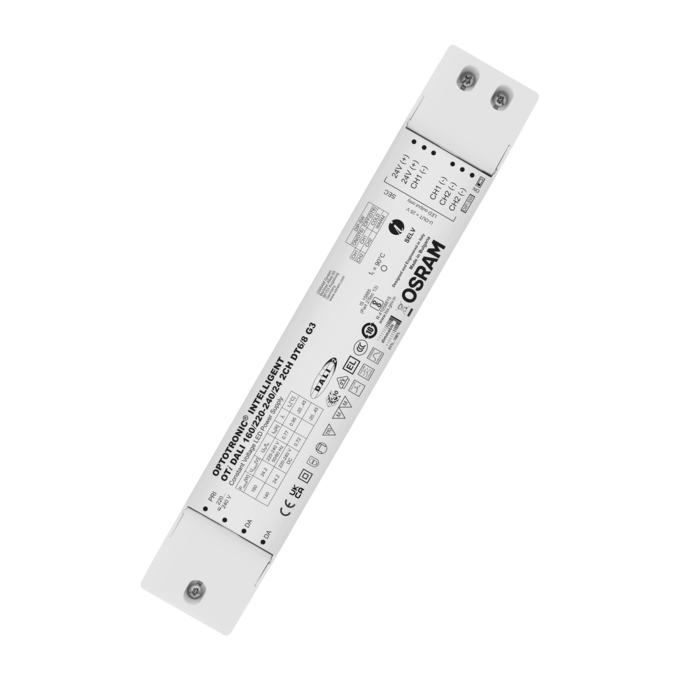

OSRAM Inventronics OTi DALI G3 LED Power Supply – 160W, 24V, 2CH DT6/DT8 Dimmable
Brand: OSRAM
Advanced 24V constant-voltage LED driver with DALI-2 intelligent dimming, dual-channel output, and DT6/DT8 support. Designed for tunable white and multi-channel LED systems, it offers flicker-free performance, high efficiency, smooth dimming, and smart lighting integration for premium architectural applications.
Specifications:
- Brand: Inventronics
- Series: OTi DALI G3
- Model: OTi DALI 160/220-240/24 2CH DT6/8 G3
- Driver Type: Constant Voltage LED Power Supply
- Dimming: Yes – DALI-2 / Touch DIM / Corridor Function
- Output Voltage: 24V DC
- Working Voltage: 24.2V
- Output Power: 160W
- Maximum Output Power: 160W
- Channels: 2 Channel Output
- DT Mode: DT6 / DT8 compatible
- Input Voltage: 220–240V AC
- Operating Range: 198–264V AC / 176–276V DC
- Frequency: 0 / 50 / 60 Hz
- Power Factor: 0.92 – 0.99
- THD: <5%
- Efficiency: Up to 93%
- Network Standby Power: <0.30W
- Dimming Range: 0.1% – 100%
- Dimming Method: High-frequency PWM (>2 kHz, no stroboscopic effect)
- Programming Interface: DALI
- Smart Functions: TouchDIM + Sensor / Corridor Function
-
Isolation:
- Output: SELV
- DALI / Output: Double Insulation
- DALI / Mains: Basic Isolation
-
Protection Features:
- Automatic Overheating Protection
- Automatic Overload Protection
- Automatic Short Circuit Protection
- No-load Proof
- IP Rating: IP20
- Housing Material: Plastic
- Body Color: White
- Connection Type: Screw terminal (input/output)
- Max Cable Length to Load: 50 meters
- Dimensions: 300 × 50 × 35 mm
- Weight: 380 g
- Operating Temperature: -20°C to +45°C
- Storage Temperature: -40°C to +85°C
- Max tc Temperature: 90°C
- Lifetime: 50,000 hours
- Applications: Cove lighting, wall washer, handrail lighting, luminous ceilings, corridor lighting
- Certifications: BIS, CCC, EAC, EL, ENEC 10, RCM, VDE
