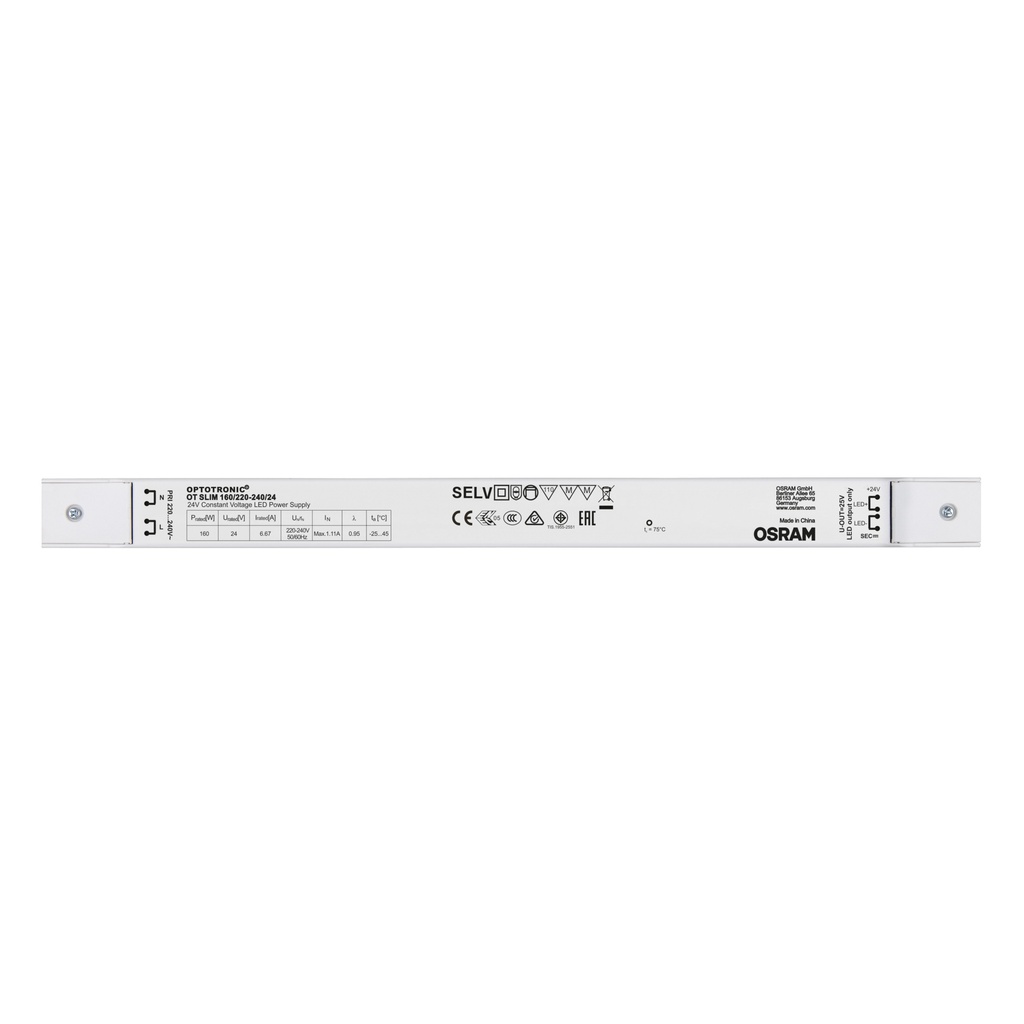

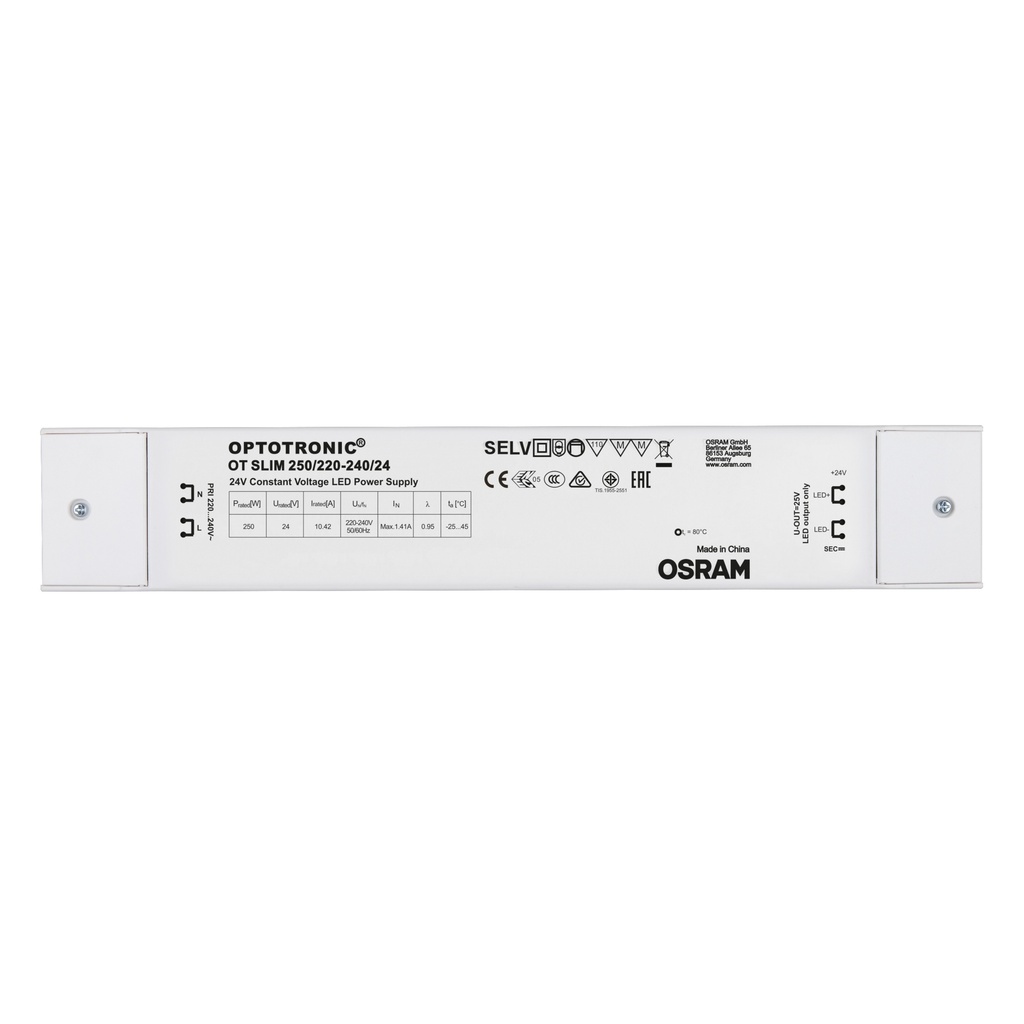

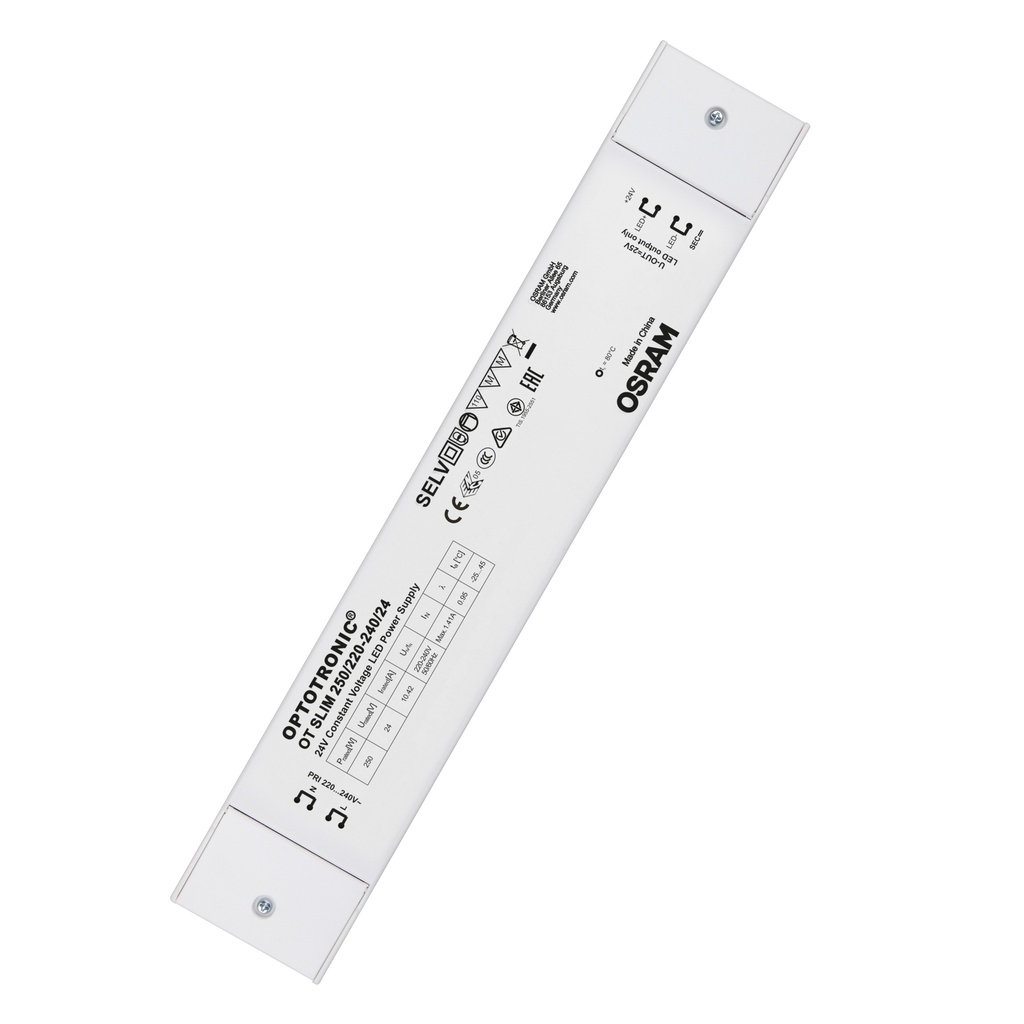

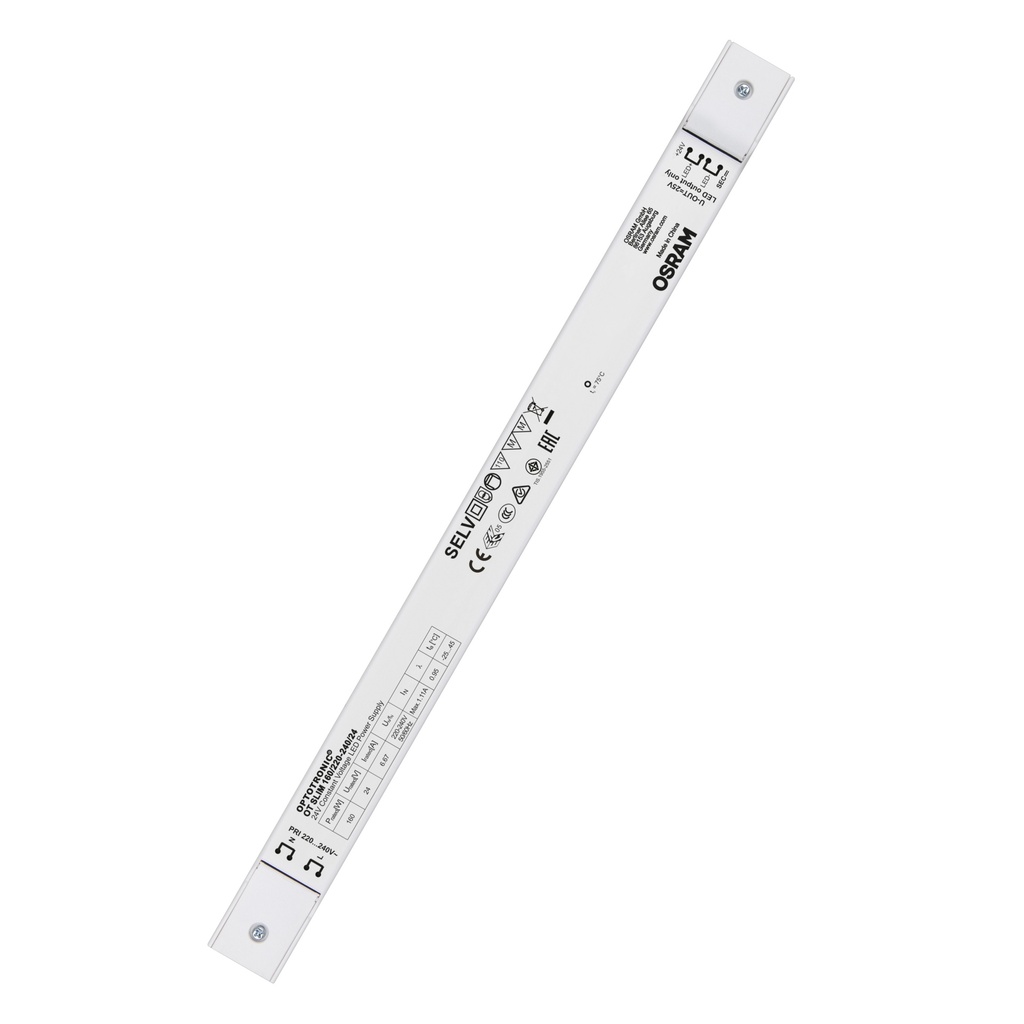

OSRAM Inventronics OT SLIM LED Power Supply, 24V, Slim
Brand: OSRAM
Slim constant-voltage LED power supply designed for professional 24V lighting systems. The Inventronics OT SLIM series delivers stable output, high efficiency, and reliable protection features in a compact low-profile housing, making it ideal for signage, façade lighting, architectural details, and space-limited installations.
Specifications:
- Brand: Inventronics
- Series: OT SLIM
- Product Type: Constant Voltage LED Power Supply
- Dimming: Non-Dimmable
- Output Voltage: 24V DC
- Power Options: 160W / 250W
- Nominal Output Voltage: 24.2V
- Input Voltage: 220–240V AC
- Operating Range: 195.5–276V AC / 176–250V DC
- Frequency: 50–60 Hz
- Power Factor: >0.95
- THD: <5%
-
Efficiency:
- 160W: Up to 92%
- 250W: Up to 91%
- Isolation: SELV
-
Protection Features:
- Automatic Reversible Short Circuit Protection
- Automatic Reversible Overload Protection
- Overtemperature Protection
- IP Rating: IP20
- Housing Material: Plastic
- Connection Type: Screw terminal (input/output)
-
Dimensions:
- 160W: 404 × 30 × 21.5 mm
- 250W: 343 × 60 × 31 mm
- Operating Temperature: -25°C to +45°C
- Storage Temperature: -40°C to +85°C
- Lifetime: 50,000 hours
- Applications: Facades, public spaces, signage, retail displays, architectural lighting, indoor and outdoor protected installations
- Certifications: CE, CB, ENEC, CCC, EAC, RCM, BIS
