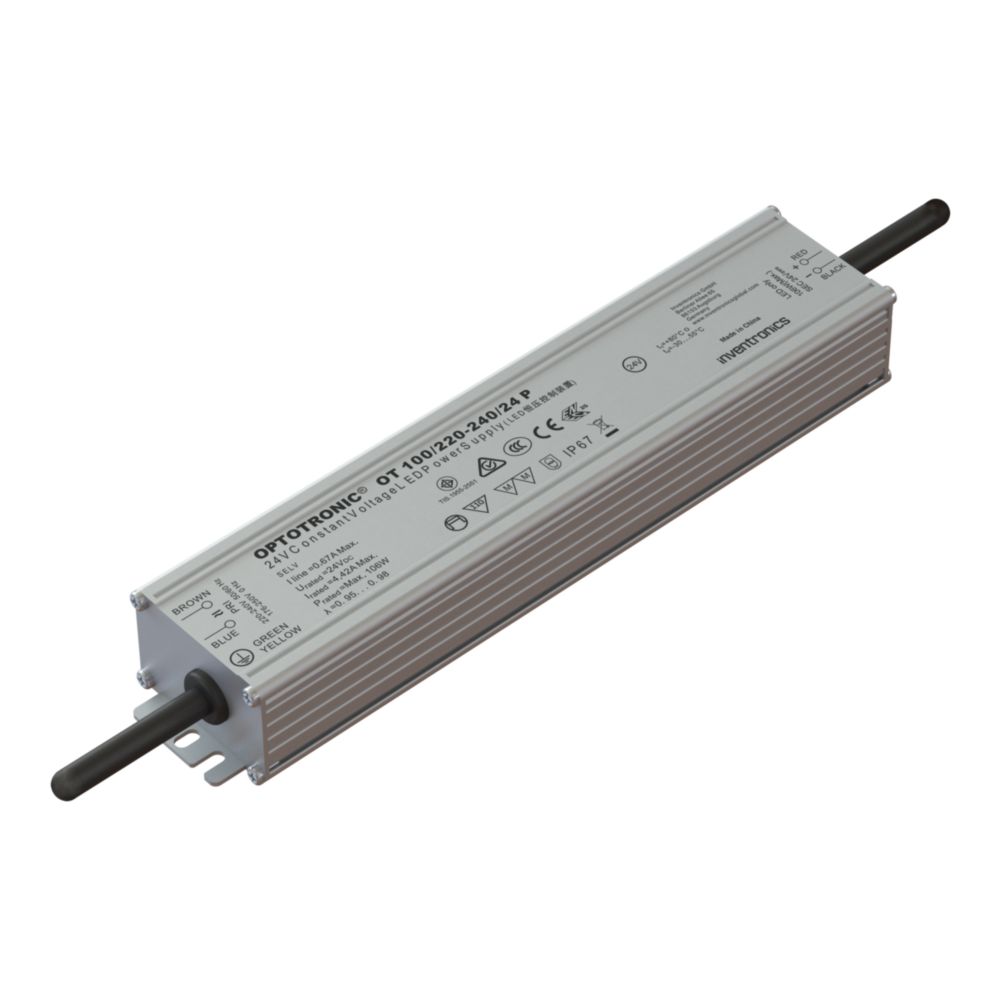

OSRAM Inventronics OT P LED Power Supply, 24V, IP67 Waterproof
Brand: OSRAM
Heavy-duty constant-voltage LED driver designed for outdoor and demanding environments. The Inventronics OT 100W / 200W series offers IP67 protection, high surge resistance, and stable output performance, making it ideal for façade, signage, and exterior lighting applications.
Specifications:
- Brand: Inventronics
- Series: OT P
- Model: OT 100/220-240/24 P / OT 200/220-240/24 P
- Driver Type: Constant Voltage LED Power Supply
- Dimming: Non-Dimmable
- Output Voltage: 24V DC
- Nominal Output Voltage: 24.2V
- Output Power: 100W / 200W
- Maximum Output Power: 100W / 200W
- Channels: 1
- Input Voltage: 220–240V AC
- Operating Range: 198–264V AC / 176–250V DC
- Frequency: 0–60 Hz
- Power Factor: 0.95
- THD: <15%
- Efficiency: Up to 90%
-
Surge Protection:
- 4 kV (L–N)
- 6 kV (L/N–PE)
- Isolation: SELV
-
Protection Features:
- Overheating Protection
- Overload Protection
- Short Circuit Protection
- No-load Protection
- IP Rating: IP66 / IP67 (Waterproof)
- Housing Material: Metal
- Connection Type: Terminal
- Dimensions: 240 × 50 × 34 mm
- Weight: 765 g
- Operating Temperature: -30°C to +55°C
- Storage Temperature: -40°C to +85°C
- Max tc Temperature: 80°C
- Lifetime: 50,000 hours
- Applications: Outdoor lighting, façade lighting, signage, public areas, architectural lighting
- Certifications: CE, ENEC, CCC, EAC, RCM
