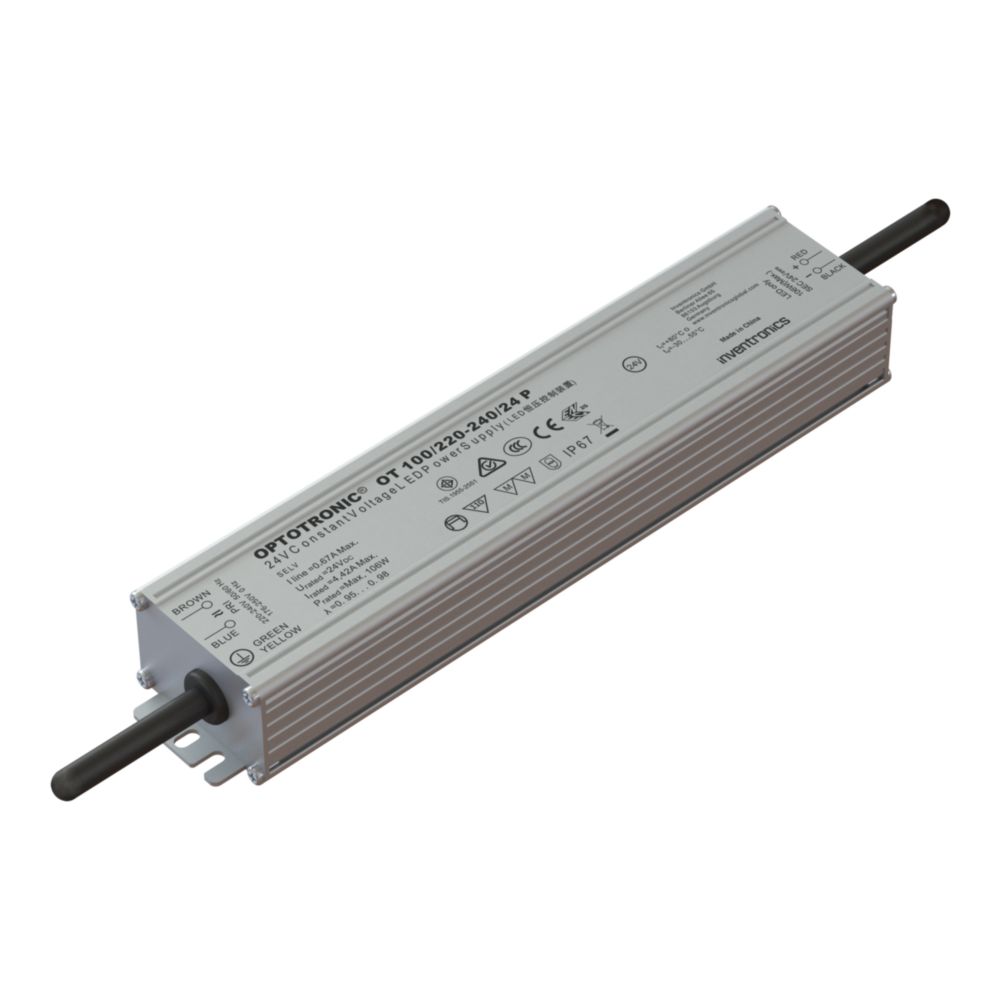

OSRAM Inventronics OT P LED Power Supply – 100W, 24V, IP67 Waterproof
Brand: OSRAM
Heavy-duty constant-voltage LED driver designed for outdoor and demanding environments. The Inventronics OT 100W series offers IP67 protection, high surge resistance, and stable output performance, making it ideal for façade, signage, and exterior lighting applications.
| Watt: 100W |
Documents
Specifications:
- Brand: Inventronics
- Series: OT P
- Model: OT 100/220-240/24 P
- Driver Type: Constant Voltage LED Power Supply
- Dimming: Non-Dimmable
- Output Voltage: 24V DC
- Nominal Output Voltage: 24.2V
- Output Power: 100W
- Maximum Output Power: 100W
- Channels: 1
- Input Voltage: 220–240V AC
- Operating Range: 198–264V AC / 176–250V DC
- Frequency: 0–60 Hz
- Power Factor: 0.95
- THD: <15%
- Efficiency: Up to 90%
-
Surge Protection:
- 4 kV (L–N)
- 6 kV (L/N–PE)
- Isolation: SELV
-
Protection Features:
- Overheating Protection
- Overload Protection
- Short Circuit Protection
- No-load Protection
- IP Rating: IP66 / IP67 (Waterproof)
- Housing Material: Metal
- Connection Type: Terminal
- Dimensions: 240 × 50 × 34 mm
- Weight: 765 g
- Operating Temperature: -30°C to +55°C
- Storage Temperature: -40°C to +85°C
- Max tc Temperature: 80°C
- Lifetime: 50,000 hours
- Applications: Outdoor lighting, façade lighting, signage, public areas, architectural lighting
- Certifications: CE, ENEC, CCC, EAC, RCM
