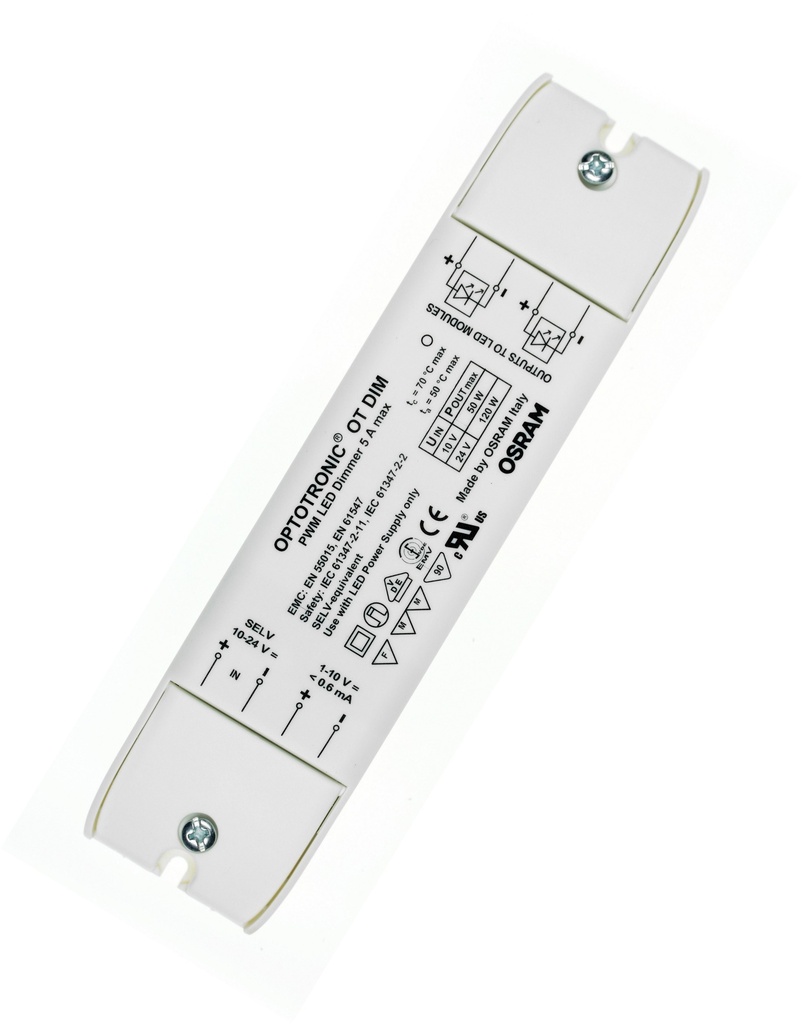

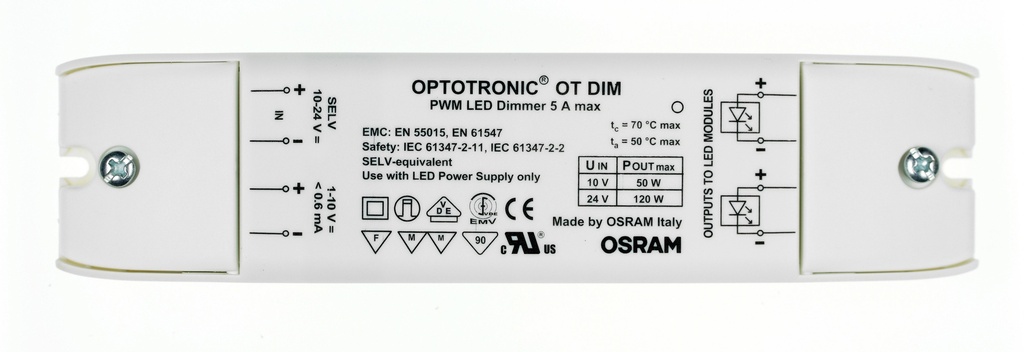

OSRAM Inventronics OT DIM LED Dimmer – 10–24V, 120W, 1–10V Control
Brand: OSRAM
Professional constant-voltage LED dimmer designed for smooth 1–10V analog control in low-voltage lighting systems. The Inventronics OT DIM provides flicker-free dimming from 0–100%, stable output, and reliable protection features, making it ideal for indoor LED strips, architectural lighting, and smart dimming applications.
Documents
Specifications:
- Brand: Inventronics
- Series: OT DIM
- Model: OT DIM
- Product Type: CV LED Dimmer / Controller
- Input Voltage: 10–24V DC
- Input Voltage Range: 10.5–24V DC
- Output Voltage: 10.5–24V DC
- Output Power: 120W
- Control Signal: 1–10V Analog
- Dimming Range: 0–100%
- Dimming Method: Amplitude Modulation / Pulse Width Modulation
- Dimmable: Yes
- Isolation: SELV Equivalent
- Suitable for Fixtures: Protection Class II
-
Protection Features:
- Automatic Reversible Overheating Protection
- Automatic Reversible Overload Protection
- Automatic Reversible Short Circuit Protection
- No-load Proof
- Housing Material: Plastic
- Body Color: White
- IP Rating: IP20
- Connection Type: Screw Terminal
- Cable Size: 0.5–1.5 mm²
- Dimensions: 172 × 42 × 20 mm
- Mounting Hole Spacing: 164 mm
- Weight: 81 g
- Operating Temperature: -20°C to +50°C
- Storage Temperature: -25°C to +85°C
- Max tc Temperature: 70°C
- Humidity Range: 5–85% RH
- Lifetime: 50,000 hours
- Applications: Indoor SELV installations, LED strips, architectural dimming, smart lighting control
- Certifications: CE, VDE, VDE-EMC
