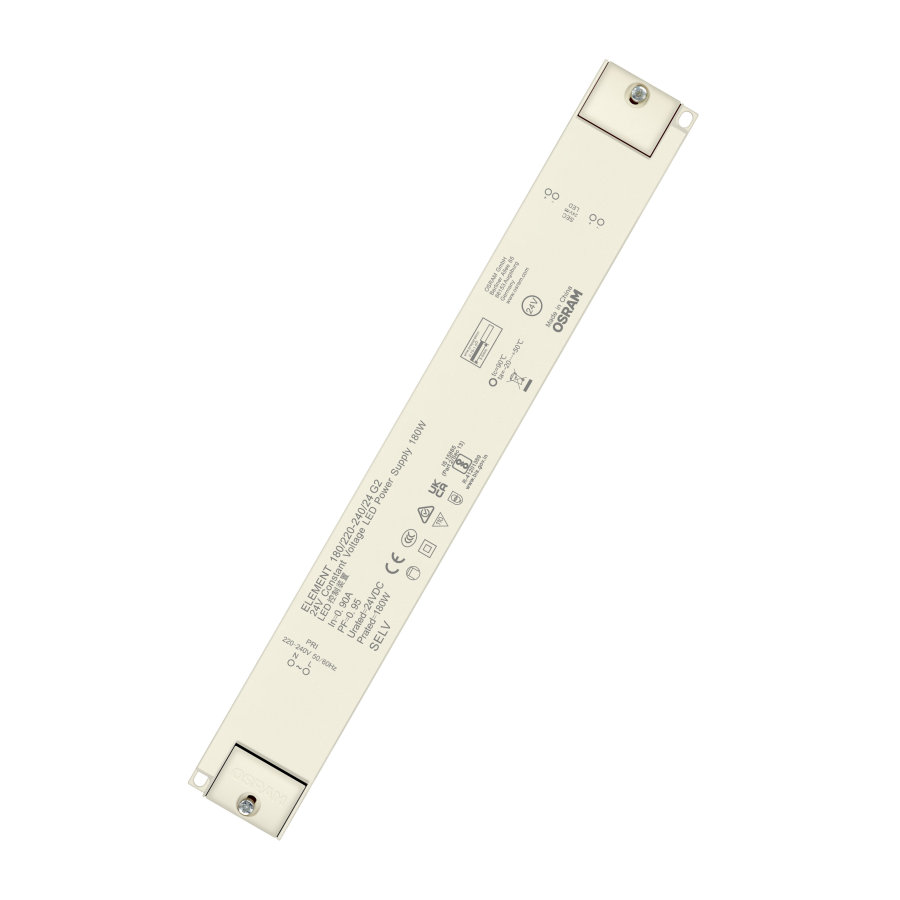

OSRAM Inventronics ELEMENT G2 LED Power Supply, 24V
Brand: OSRAM
Warranty: 3 Years
Professional constant-voltage LED power supply designed for 24V lighting systems. The Inventronics ELEMENT G2 delivers stable 180W output with high efficiency, low ripple current, and reliable protection features, making it ideal for LED strips, cove lighting, shelves, and architectural applications.
Specifications:
- Brand: Inventronics
- Series: ELEMENT G2
- Model: ELEMENT 180/220-240/24 G2
- Driver Type: Constant Voltage LED Power Supply
- Dimming: Non-Dimmable
- Output Voltage: 24V DC
- Working Voltage: 25V
- Output Power: 180W
- Maximum Output Power: 180W
- Channels: 1
- Input Voltage: 220–240V AC
- Operating Range: 198–264V AC
- Frequency: 50/60 Hz
- Power Factor: 0.90
- THD: <15%
- Efficiency: Up to 91%
- Isolation: SELV galvanic isolation
- Ripple Performance: <3% output voltage tolerance
- Surge Protection: 1kV (L-N)
-
Protection Features:
- Overheating Protection
- Overload Protection
- Short Circuit Protection
- IP Rating: IP20
- Housing Material: Plastic
- Connection Type: Terminal block (input/output)
- Max Cable Length to LED Load: 3 meters
- Dimensions: 300 × 40 × 31 mm
- Weight: 472 g
- Operating Temperature: -20°C to +50°C
- Storage Temperature: -40°C to +85°C
- Max tc Temperature: 90°C
- Lifetime: 30,000 hours
- Suitable For: Class I / Class II luminaires
- Applications: Cove lighting, shelf lighting, under-cabinet lighting, hospitality, retail, decorative lighting
- Certifications: CE, RCM, CCC
- Warranty: 3 Years
