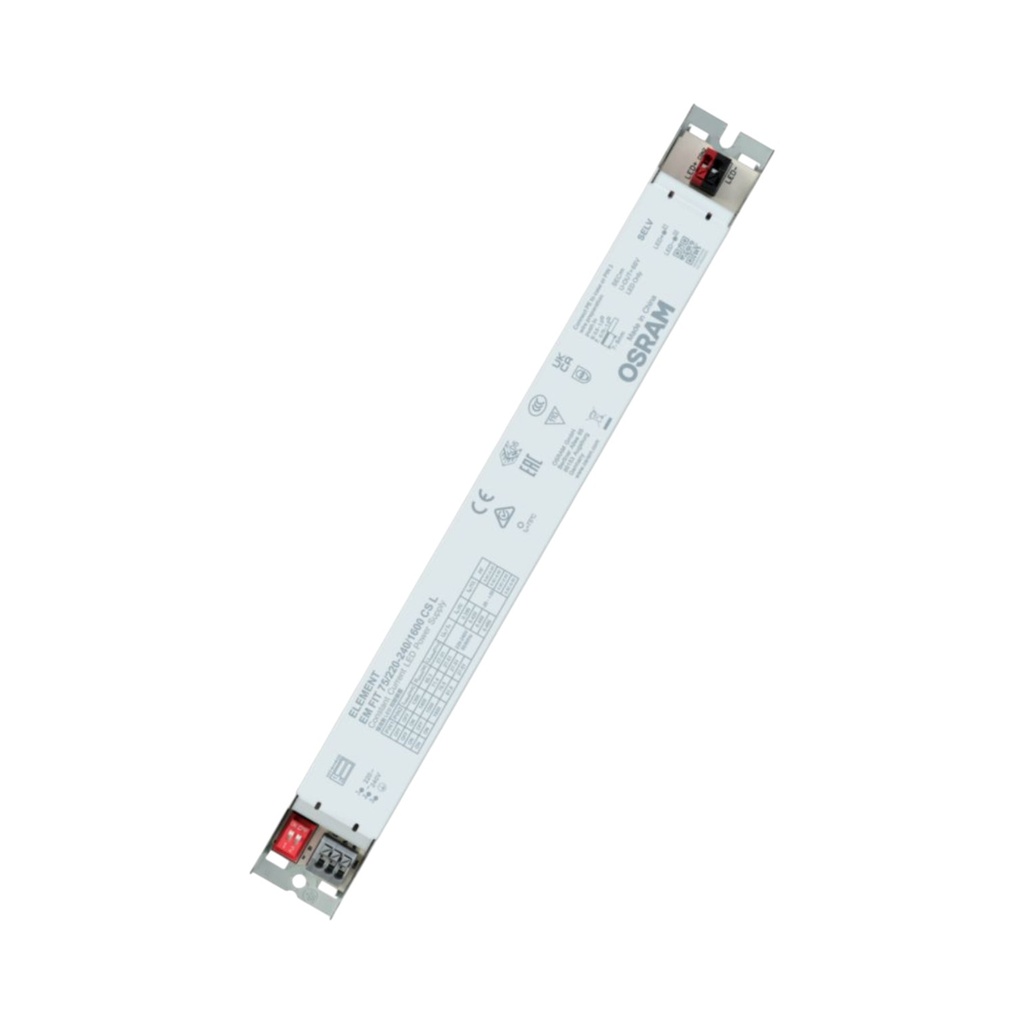

OSRAM Inventronics ELEMENT EM FIT 75/220...240/1A6 CS L LED Driver – 81.6W
Brand: OSRAM
The Inventronics ELEMENT EM FIT 75/220...240/1A6 CS L is a high-performance constant current LED driver designed for professional indoor lighting applications. Featuring a compact linear metal housing, SELV isolated output, and DIP switch selectable output currents (1300mA–1600mA), it offers flexible installation for a wide range of LED luminaires. Delivering up to 81.6W output power, high efficiency, and comprehensive protection against overload, overheating, and short circuits, this non-dimmable driver is an ideal solution for linear lighting, office lighting, retail spaces, industrial facilities, and commercial buildings requiring long-term reliability and stable performance.
Documents
Specifications:
- Product Name: Inventronics ELEMENT EM FIT 75/220...240/1A6 CS L
- Product Type: Constant Current LED Driver
- Brand: Inventronics
- Series: ELEMENT EM FIT SELV
- Model: EM FIT 75/220...240/1A6 CS L
- Input Voltage: 198–264V AC
- Nominal Input Voltage: 220–240V AC
- Frequency: 50/60Hz
- Output Power: 35.1–81.6W (Max. 81.6W)
- Output Voltage: 27–51V DC
- Maximum Output Voltage: <60V DC
- Output Current: 1300mA / 1400mA / 1500mA / 1600mA (Selectable via DIP Switch)
- Current Accuracy: ±7.5%
- Efficiency: Up to 89%
- Power Factor: 0.95
- THD: <20%
- Isolation: SELV
- Dimming: Non-Dimmable
- Programming: DIP Switch Current Selection
- Ripple Current: <10%
- PstLM: ≤1
- SVM: ≤0.4
- Housing Material: Metal
- Dimensions: 280 × 30 × 21mm
- Weight: 210g
- Operating Temperature: -20°C to +50°C
- Maximum Tc Temperature: 75°C
- Storage Temperature: -40°C to +85°C
- Relative Humidity: 5–90% (Non-condensing)
- Maximum LED Cable Length: 2m
- Protection Features: Automatic Overload Protection, Automatic Overtemperature Protection, Automatic Short Circuit Protection, No-load Proof
- Features: SELV Isolated Output, Wide Output Voltage Range, Selectable Output Current via DIP Switch, High Efficiency, Low Ripple Current, Compact Linear Housing, Long Service Life, High Reliability
- Certifications / Standards / Warranty: CE, CCC, ENEC, RCM, EAC, UKCA, IEC 61347-1, IEC 61347-2-13, IEC 62384, IEC 61000-3-2, IEC 61547, CISPR 15, EN 55015, IP20
- Applications: Linear Lighting, Area Lighting, Shop Lighting, Office Lighting, Supermarkets, Commercial Buildings, Industrial Lighting, Public Buildings, LED Panels, Linear LED Fixtures.
