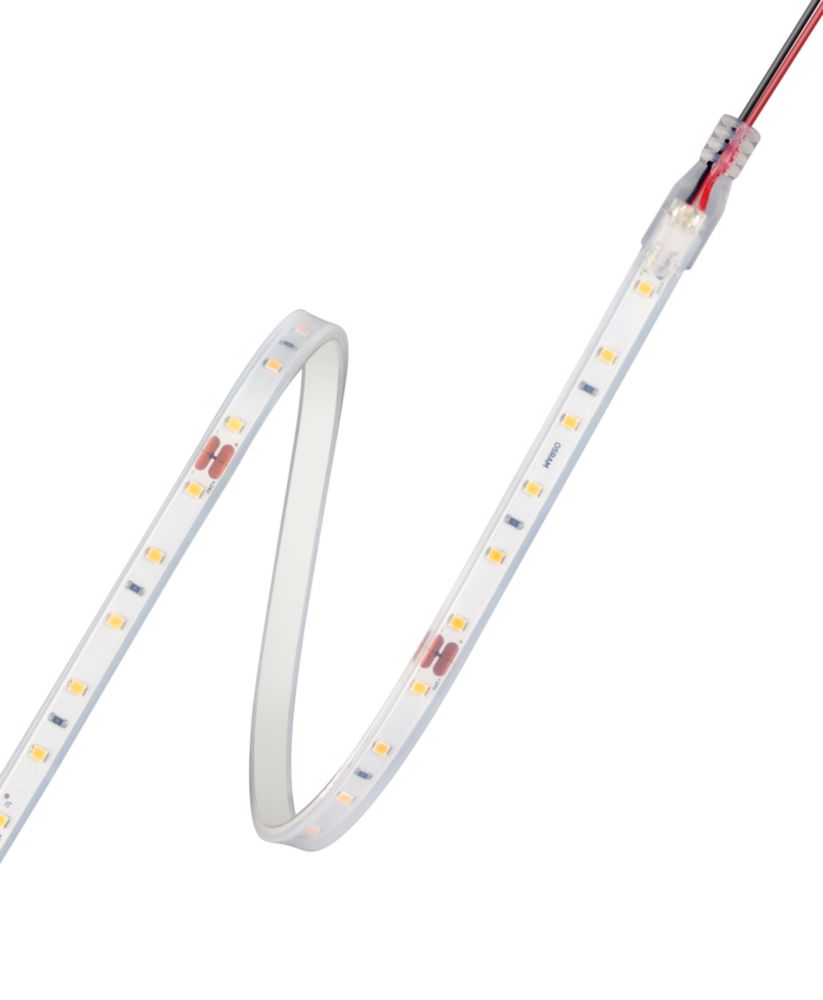

OSRAM BASIC FLEX Protect Shortpitch LED Strip – 24V, IP66, 5m, 16.5W, 6500K
Brand: OSRAM
Warranty: 2 Years
Professional waterproof LED strip designed for semi-professional and architectural applications. The OSRAM BASIC FLEX Protect Shortpitch delivers uniform cool white illumination with IP66 protection, flexible installation, and PWM dimming compatibility, making it ideal for signage, cabinet lighting, hospitality, and wall integration projects.
| Light Temperature: 6500k |
Documents
Specifications:
- Brand: OSRAM
- Series: BASIC FLEX Protect Shortpitch G3
- Model: BFP400S-G3-865-05
- Product Type: Waterproof Flexible LED Strip
- Input Voltage: 24V DC
- Input Voltage Range: 23–25V DC
- Power Consumption: 16.5W (5m roll)
- Color Temperature: 6500K (Cool White)
- Light Color: White
- Luminous Flux: 400 lm/m
- Luminous Efficacy: 115.2 lm/W
- CRI: Ra 80
- Color Consistency: 3 SDCM
- Beam Angle: 120°
- LED Strip Type: Shortpitch for smooth light effect
- Length: 5000 mm
- Width: 10.3 mm
- Height: 4 mm
- Weight: 85 g
- IP Rating: IP66
- Reconnected Rating: IP54 when cut and reconnected with OSRAM CONNECT systems
- Dimming: Yes (PWM compatible)
- Self-Adhesive: Yes
- With End Piece: Yes
- With Connection Set: Yes
- Minimum Bending Radius: 50 mm
- Operating Temperature: -20°C to +75°C
- Storage Temperature: -30°C to +80°C
- Lifetime: Up to 30,000 hours
- Applications: Hospitality, cabinet lighting, signage, architectural dimming, wall integration
- Certifications: CE
