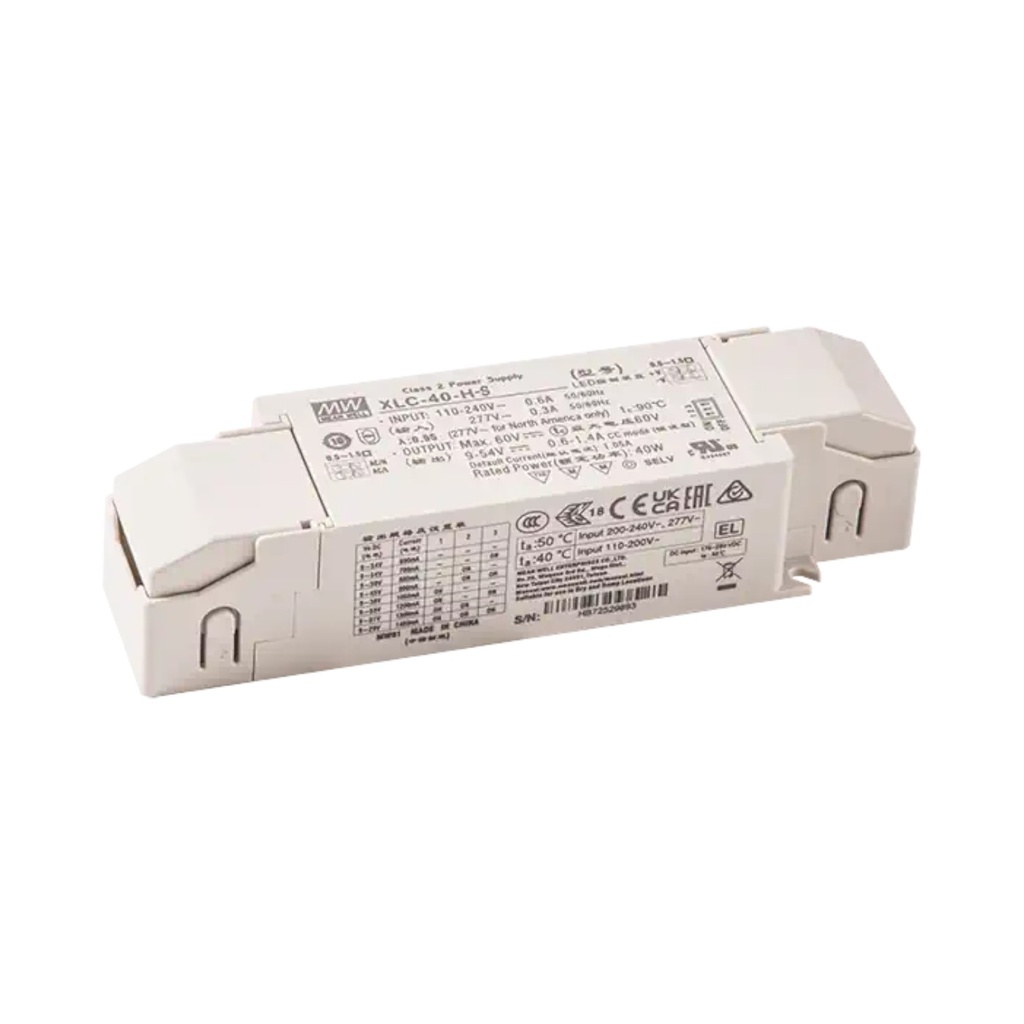

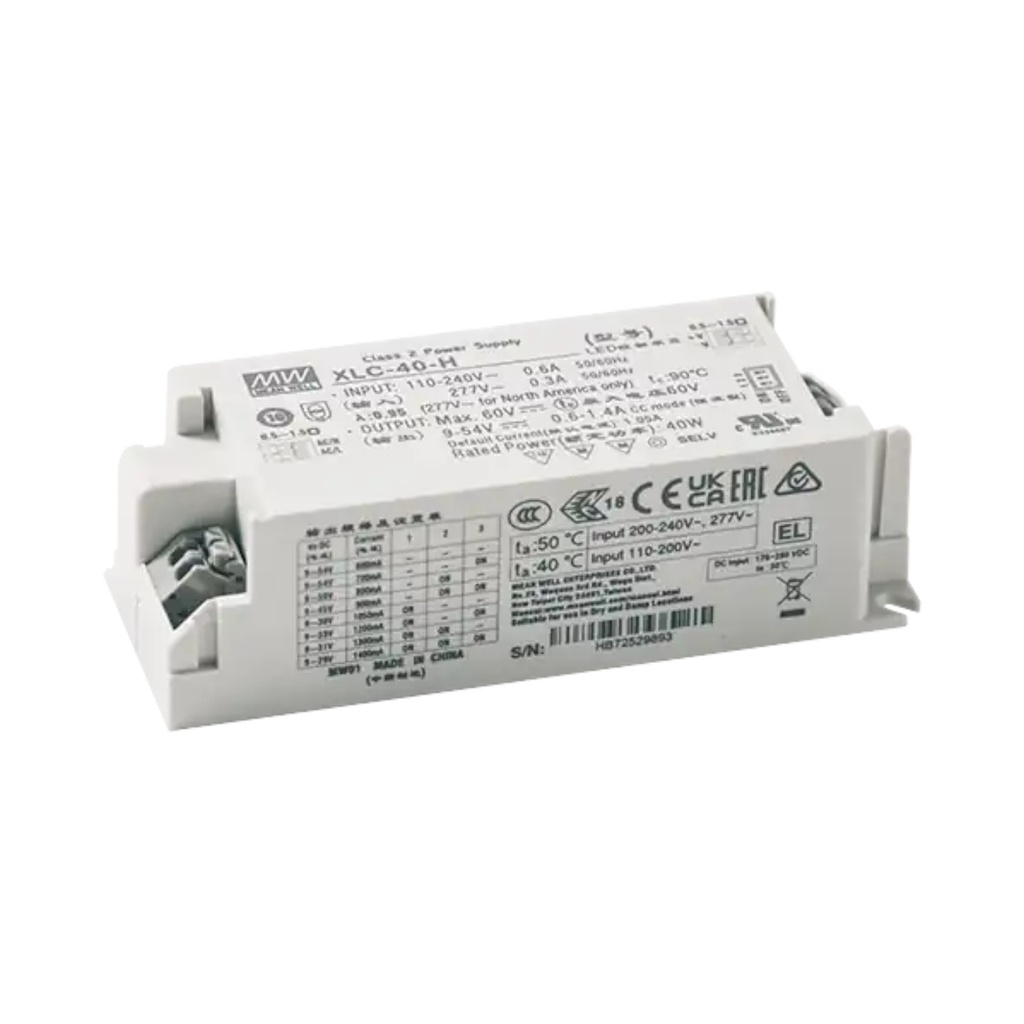

MEAN WELL XLC-40H-DA2 LED Driver – 40W DALI-2 Constant Current Driver
Brand: MEAN WELL
Warranty: 5 Years
Professional 40W constant current LED driver with DALI-2 digital dimming and NFC programmable output current. Designed for architectural and commercial lighting applications requiring smooth flicker-free dimming, high efficiency, and reliable long-term performance.
Documents
Specifications:
- Brand: MEAN WELL
- Model: XLC-40H-DA2
- Driver Type: Constant Current LED Driver
- Power Output: 40W
- Input Voltage: 100–305V AC
- DC Input Range: 141–400V DC
- Frequency Range: 47–63Hz
- Output Voltage Range: 9–54V DC
- Selectable Output Current: 600mA – 1400mA
- Default Output Current: 1050mA
- Efficiency: Up to 88%
- Power Factor: ≥0.95
- Current Ripple: <4%
- Standby Power Consumption: <0.5W
- Dimming Type: DALI-2 + Push Dim
- Dimming Range: 0.1% – 100%
- NFC Programming: Yes
-
Flicker Performance:
- PstLM ≤1
- SVM ≤0.4
-
Protection Features:
- Short Circuit Protection
- Over Load Protection
- Over Voltage Protection
- Over Temperature Protection
- Housing: Plastic Housing – Class II
- IP Rating: IP20
- Operating Temperature: -25°C to +90°C
- Storage Temperature: -40°C to +80°C
- Dimensions: 147 × 40 × 32 mm
- Applications: Architectural lighting, panel lights, downlights, commercial lighting, DALI smart lighting systems
-
Certifications: UL, CE, EAC, BIS, SELV
