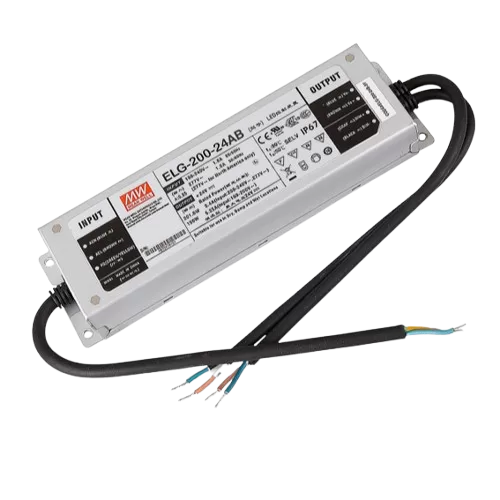

Mean Well ELG-200-24AB – 200W Constant Voltage + Constant Current LED Driver (24V, IP65, 3-in-1 Dimming)

http://licht-eg.com/web/image/product.template/9949/image_1920?unique=8e9c0b7
Brand: MEAN WELL
Warranty: 5 Years

The Mean Well ELG-200-24AB is a 200W LED driver with 24V constant voltage and constant current output. It features high efficiency (up to 92%), IP65 protection, and a 3-in-1 dimming function (0–10V, PWM, resistance) for versatile lighting control. With a rugged metal housing and built-in potentiometer for output adjustment, it is ideal for street, bay, architectural, and flood lighting applications.

0.00 LE 0.0 EGP 0.00 LE

6,350.00 LE

Get a Quota

This combination does not exist.

Contact Us
Dimmable 24V Flicker-Free IP67 MEAN WELL DALI

Terms and Conditions
14-day money-back guarantee
Shipping: 3-7 Business Days

Key Features:

  • Dual Output Mode: Constant Voltage + Constant Current operation.
  • Output Voltage: 24V DC, rated 8.4A / 201.6W.
  • High Efficiency: Up to 92% at full load.
  • 3-in-1 Dimming: 0–10VDC, 10V PWM signal, or resistance dimming.
  • Adjustable Output: Built-in potentiometer for fine-tuning voltage and current.
  • IP65 Protection: Dustproof and water-resistant design.
  • Universal Input: 100–305VAC / 142–431VDC, PF ≥0.95 at 230VAC.
  • Low Standby Power: <0.5W consumption.
  • Protections: Short-circuit, over-voltage, over-temperature with automatic recovery.
  • Durability: MTBF > 2,390,000 hours (Telcordia SR-332).
  • Warranty: 5 years.
  • Applications: LED street lighting, flood lighting, architectural lighting, bay lighting, and outdoor installations.
