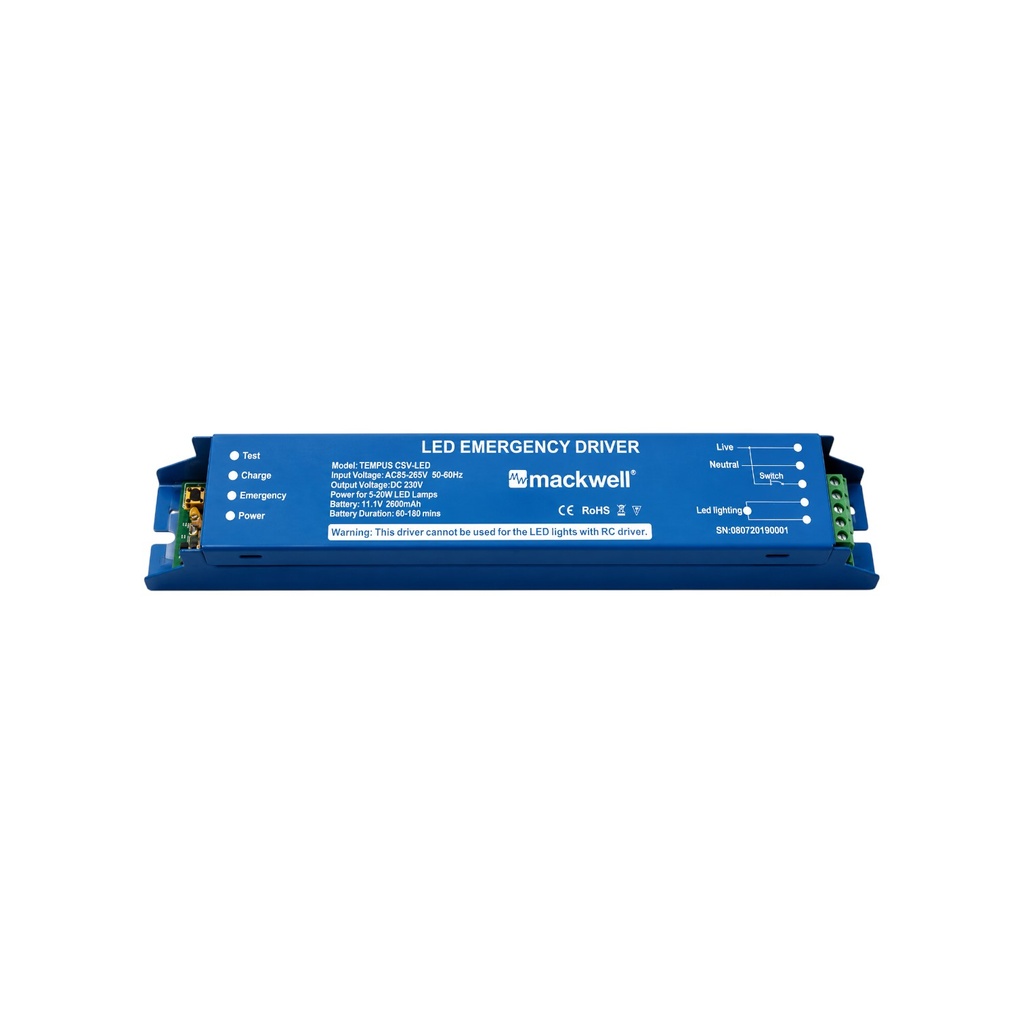

MACKWELL TEMPUS CSV-LED Emergency LED Driver Kit 20W
Brand: Mackwell
The TEMPUS CSV-LED Emergency Kit is a high-performance LED emergency driver designed to convert standard LED luminaires into emergency lighting fixtures. Compatible with DC-powered LED drivers and T8/T5 LED tubes, it provides reliable backup illumination during power failures with up to 3 hours of emergency operation. Featuring SmartCharge™ technology, it ensures efficient battery charging, extended battery life, and reduced operating temperature.
Documents
Specifications:
- Product Name: TEMPUS CSV-LED Emergency Kit
- Model: TEMPUS CSV-LED
- Product Type: LED Emergency Driver
- Input Voltage: AC 85–265V, 50/60Hz
- Output Voltage: DC 230V
- Compatible LED Power: 5W–20W LED Lamps
- Battery Type: Rechargeable Lithium Battery
- Battery Capacity: 11.1V, 2600mAh
- Emergency Duration: 60min / 180min (1 Hour / 3 Hours)
- Charging Technology: SmartCharge™ Intermittent Charge System
- Safety Class: SELV
- Dimensions: 245 × 40 × 27 mm
- Mounting Center: 245 mm
- Compatible Light Sources: DC LED Drivers, T8 LED Tubes, T5 LED Tubes
- Installation: Internal Emergency Conversion Module
- Operation: Automatic Emergency Backup During Power Failure
- Country of Manufacture: United Kingdom (UK)
- Certificates: CE, RoHS, ICEL
-
Applications: Offices, Commercial Buildings, Hospitals, Schools, Retail Stores, Hotels, Corridors, Emergency Escape Routes
Features:
- Converts standard LED luminaires into emergency lighting
- Compatible with DC-powered LED drivers
- Supports T8 and T5 LED tubes
- Provides reliable backup illumination during mains failure
- SmartCharge™ technology for energy-efficient battery maintenance
- Optimized battery service life and reduced operating temperature
- Wide input voltage range for stable operation
- Easy installation and compact design
- Environmentally friendly emergency backup solution
