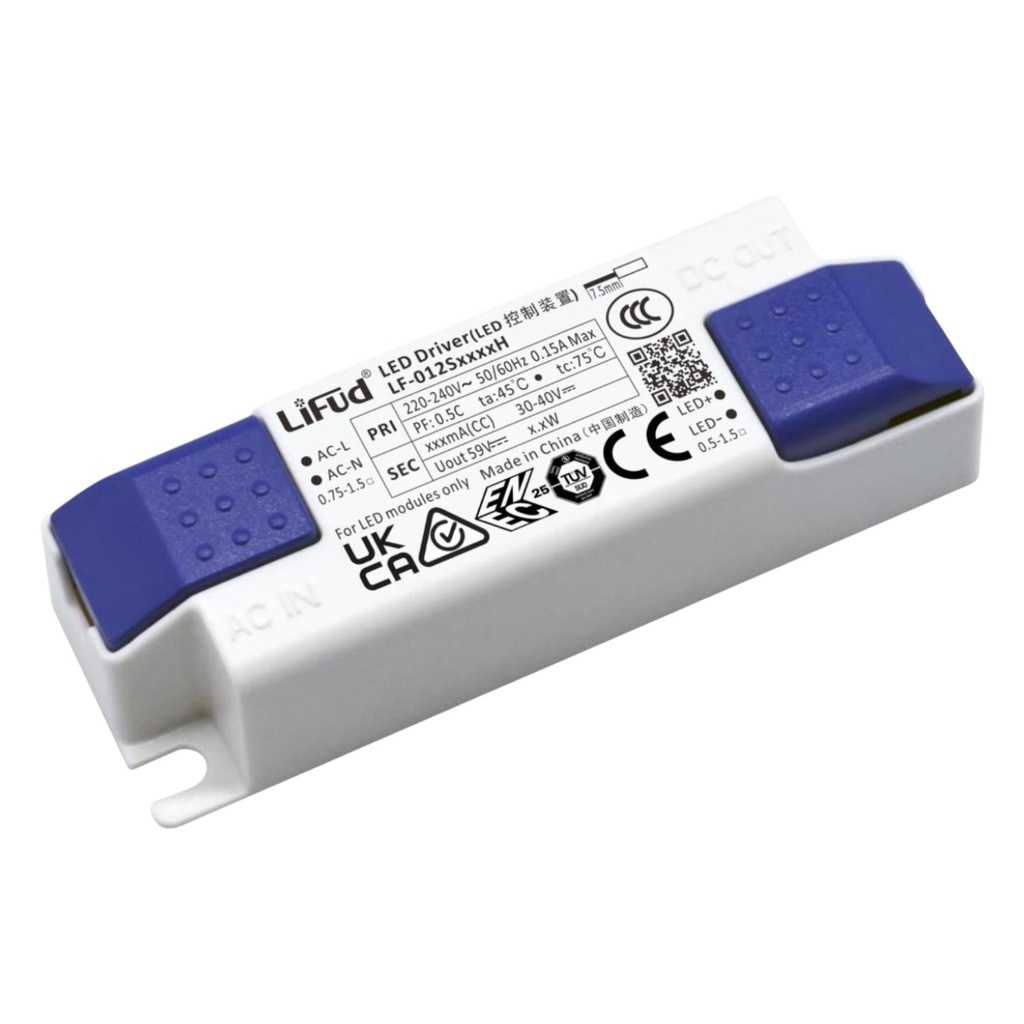

Lifud LF-012SxxxxH Constant Current LED Driver – 7.5W–12W, Non-Dimmable

Specifications:

• Brand: Lifud
• Model Series: LF-012SxxxxH
• Driver Type: Constant Current LED Driver
• Dimming: Non-Dimmable
• Input Voltage: 220–240V AC
• Input Voltage Range: 198–264V AC
• Frequency: 50/60Hz
• Output Voltage: 30–40V DC
• Output Current Variants: 250mA / 300mA
• Output Power Range: 7.5W–12W
• Maximum Output Power: 12W
• Efficiency: ≥84%
• Power Factor: ≥0.5
• Phase Factor: ≥0.7
• Input Current: 0.15A Max
• Flicker Performance: According to IEEE Std 1789-2015
• CIE SVM: ≤0.4
• IEC-Pst: ≤1
• Ripple Current: <5%
• Start-Up Time: <0.5s
• Current Tolerance: ±7%
• Temperature Tolerance: ±10%
• Protection Features: Overheating Protection, Overload Protection, Short Circuit Protection, No-Load Protection, Input Overvoltage Protection, Self-Recovery Protection
• Surge Protection: 1kV (L-N)
• Withstanding Voltage: I/P-O/P: 3.75kV & 5mA & 60S
• Insulation Resistance: >100MΩ @500Vdc
• Protection Class: SELV
• IP Rating: IP20
• Housing Material: PC
• Housing Color: White
• Dimensions: 84.8 × 27.9 × 21 mm
• Weight: 30g
• Operating Temperature: -20°C to +45°C
• Maximum Case Temperature: 75°C
• Storage Temperature: -40°C to +80°C
• Operating Humidity: 20–90% RH
• Applications: Indoor Downlights, Spotlights, Wall Lights
• Certifications: CCC, ENEC, CB, CE, RCM, UKCA, RoHS 2.0
• Warranty: 3 Years
