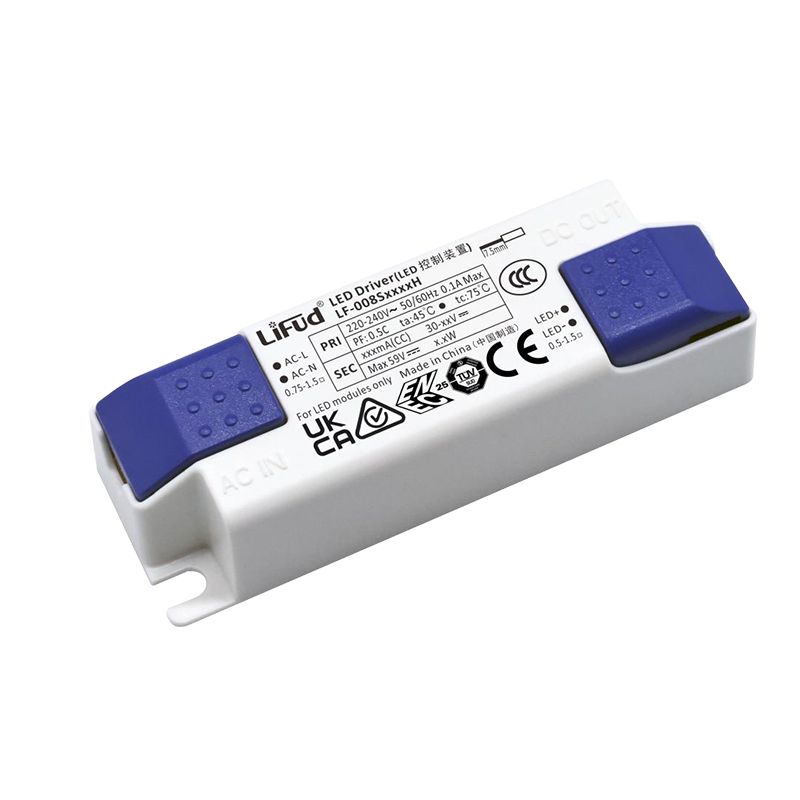

Lifud LF-008SxxxxH Constant Current LED Driver – 2.4W–8.4W, Non-Dimmable
Brand: Lifud
Warranty: 3 Years
Compact constant current LED driver designed for indoor downlights, spotlights, and wall lights. Features flicker-free performance, ultra-quiet operation, and stable current output with multiple protection systems for reliable long-term lighting applications.
| Watt: 7W |
Documents
Specifications:
- Brand: Lifud
- Model Series: LF-008SxxxxH
- Driver Type: Constant Current LED Driver
- Dimming: Non-Dimmable
- Input Voltage: 220–240V AC
- Input Voltage Range: 198–264V AC
- Frequency: 50/60Hz
- Output Voltage: 30–40V DC
- Output Current Variants: 80mA / 100mA / 120mA / 135mA / 150mA / 160mA / 180mA / 200mA / 220mA
- Output Power Range: 2.4W–8.4W
- Maximum Output Power: 8.4W
- Efficiency: Up to 82%
- Power Factor: ≥0.5
- Phase Factor: ≥0.7
- Flicker Performance: According to IEEE Std 1789-2015
- CIE SVM: ≤0.4
- IEC-Pst: ≤1
- Ripple Current: <5%
- Start-Up Time: <0.5s
- Current Tolerance: ±7%
- Temperature Tolerance: ±10%
- Protection Features: Short Circuit Protection, Overload Protection, Over-Temperature Protection, No-Load Protection, Input Overvoltage Protection, Self-Recovery Protection
- Surge Protection: 1kV (L-N)
- Insulation Resistance: >100MΩ @500Vdc
- Protection Class: SELV
- IP Rating: IP20
- Housing Material: PC
- Housing Color: White
- Dimensions: 84.8 × 27.9 × 21 mm
- Weight: 30g
- Ambient Operating Temperature: -20°C to +45°C
- Maximum Case Temperature: 75°C
- Storage Temperature: -40°C to +80°C
- Applications: Indoor Downlights, Spotlights, Wall Lights, Compact LED Fixtures
- Certifications: CCC, ENEC, CB, RCM, UKCA, CE, RoHS 2.0
- Warranty: 3 Years
