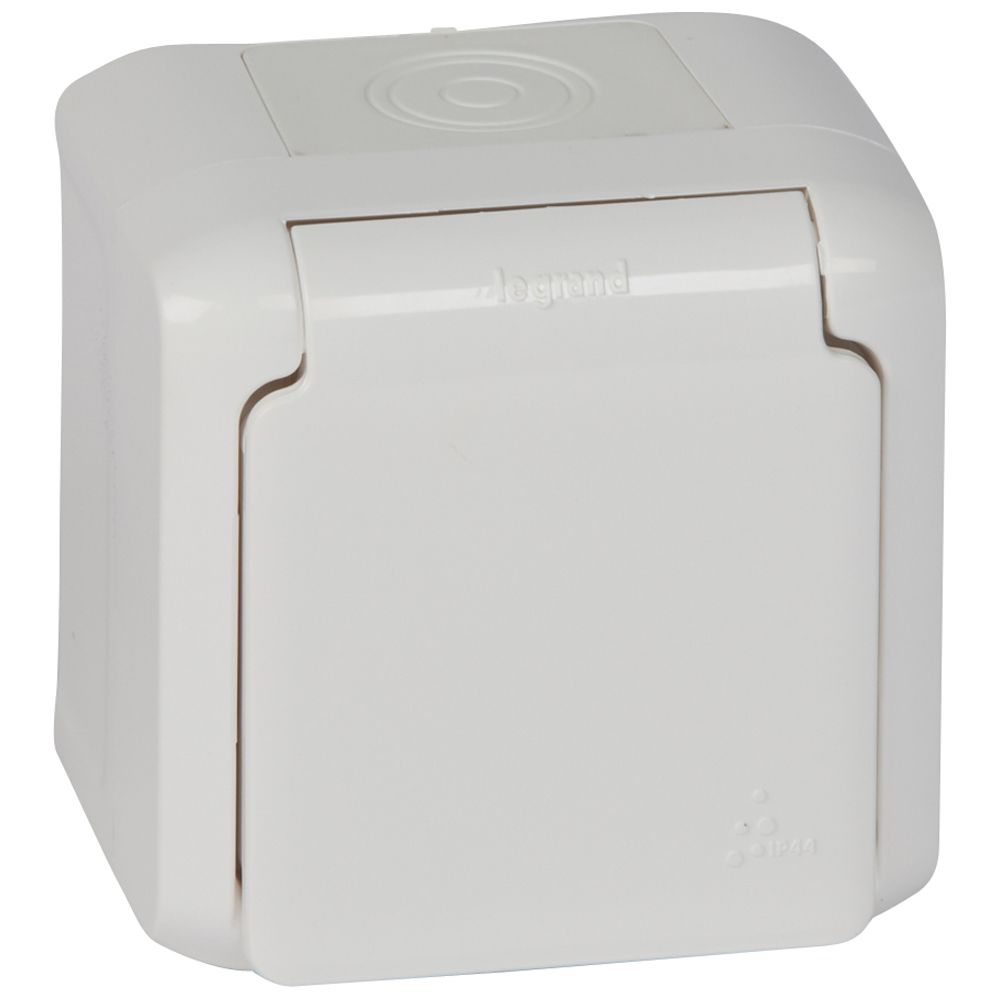

LEGRAND Forix - 2P+E German standard socket outlet -surface mounting - 16 A -250 V~ - White
Brand: LEGRAND
Weather-protected German standard socket outlet from the Legrand Forix™ IP44 series. Designed for safe indoor and outdoor installations, featuring durable ABS construction, IP44 protection against water splashes, and reliable 16A performance for residential and commercial applications.
Documents
Specifications:
- Brand: Legrand
- Series: Forix™ IP44
- Model / Cat. No.: 7 823 73
- Product Type: German Socket Outlet (2P+E)
- Socket Type: 2 Pole + Earth (2P+E)
- Rated Current: 16A
- Rated Voltage: 250V AC
- Protection Rating: IP44
- Impact Resistance: IK07
-
Material:
- Box: ABS
- Rocker: ABS
- Mechanism: PC
- Conduit Gland: SEBS
- Terminal Type: Screw terminals
- Terminal Capacity: Up to 2 × 2.5 mm²
- Stripping Length: 10 mm
- Recommended Screwdriver: Pozidriv No. 2
- Recommended Tightening Torque: 0.8 Nm
-
Dimensions:
- Width: 70 mm
- Height: 70 mm
- Depth: 57 mm
- Operating Temperature: -25°C to +60°C
- Installation: Surface mounted
- Color: White
-
Features:
- Splash-proof protective cover
- Durable industrial-grade housing
- Suitable for humid and outdoor environments
- Compatible with illumination lamp Cat. No. 7 823 98
-
Applications:
- Outdoor installations
- Garages & workshops
- Gardens & terraces
- Industrial & commercial areas
- Certifications & Standards: IEC compliant
