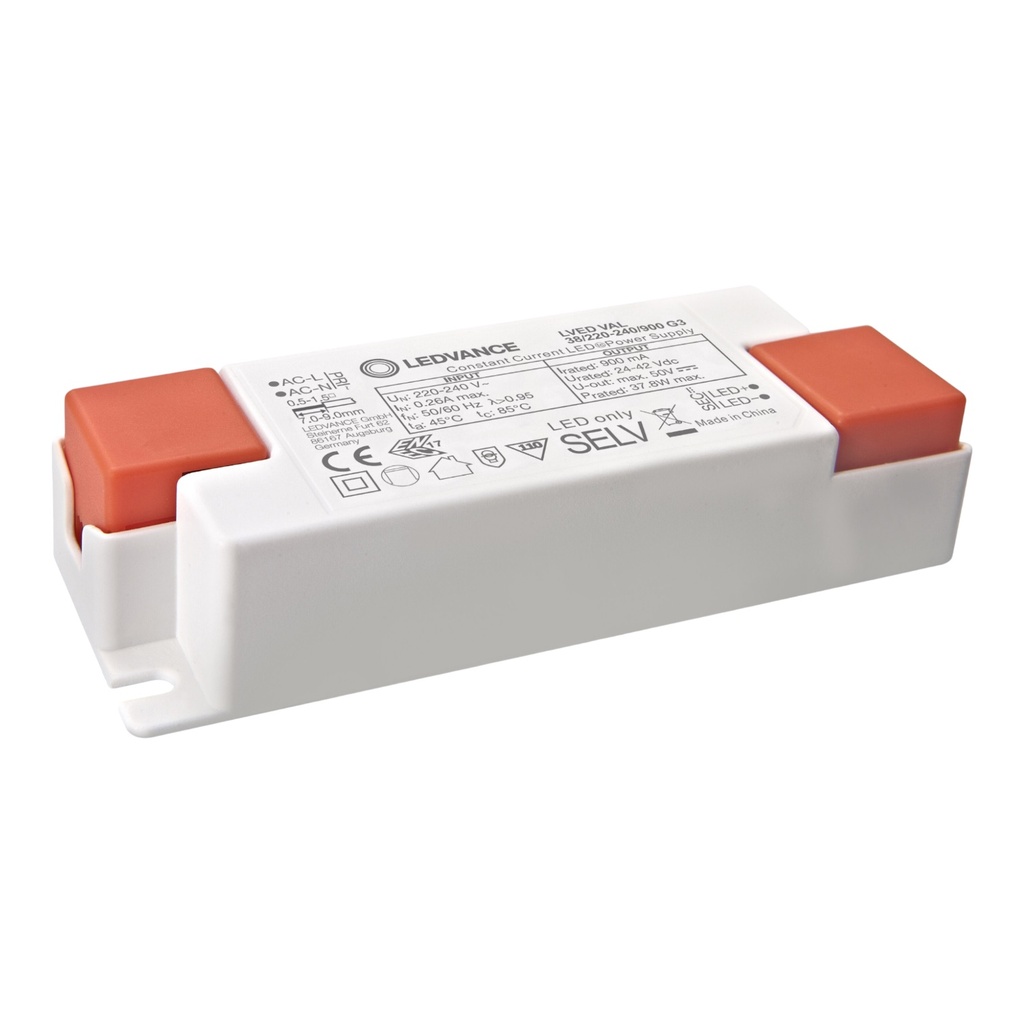

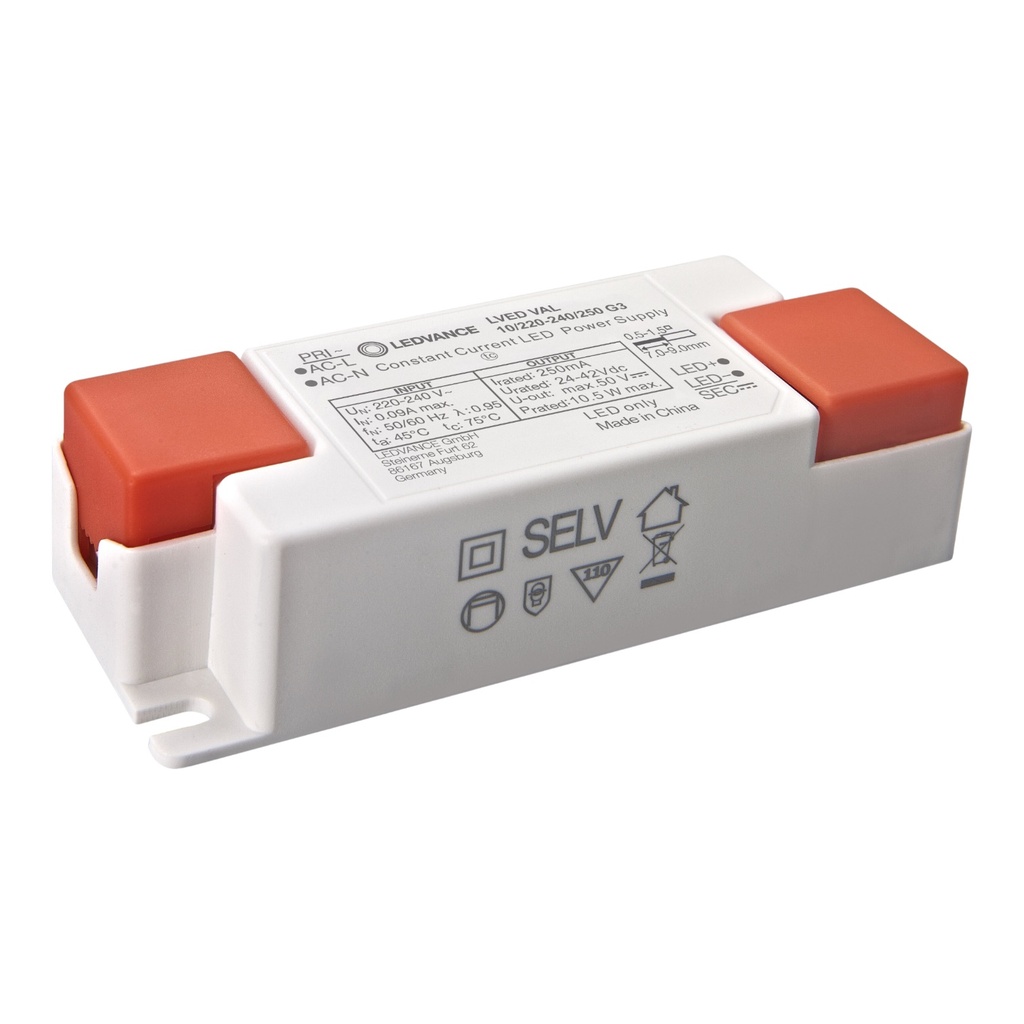

LEDVANCE VAL Series – Constant Current LED Driver – 220-240V – IP20
Brand: LEDVANCE
The
LEDVANCE VAL Series consists of compact, SELV-compliant, constant current LED drivers designed for
indoor luminaires. With
high power factor (≥0.95),
flicker-free operation, and a
lifetime of up to 50,000 hours, these drivers ensure energy-efficient and reliable performance. Available in multiple current/wattage options to support flexible lighting designs in
shops, offices, hotels, and residential projects.
Shared Features:
- Input Voltage: 220–240 V AC, 50/60 Hz
- Power Factor: ≥0.95 at full load
- Isolation: SELV, Class II
- Low ripple current with flicker-free
- Dimmable: No
- Ambient Temp: −20…+45 °C
- Lifetime: up to 50,000 h @ Tc max
- Housing: White/Orange plastic, compact design
- Protection: IP20
- Certifications: CB, CE, ENEC (selected models), RoHS compliant
- Applications: Shops, supermarkets, hotels, offices, residential lighting
Variants:
-
VAL 8.5/200 (8.5W, 200mA)
- Output voltage: 22–42 V
- Dimensions: 100 × 38 × 25 mm
- Weight: 44 g
- Product code: 4099854000768
-
VAL 10/250 (10W, 250mA)
- Output voltage: 24–42 V
- Dimensions: 100 × 38 × 25 mm
- Weight: 49 g
- Product code: 4058075798786
-
VAL 18/350 (18W, 350mA)
- Output voltage: 30–50 V
- Dimensions: 100 × 38 × 25 mm
- Weight: 59 g
- Product code: 4058075798892
-
VAL 21/500 (21W, 500mA)
- Output voltage: 25–42 V
- Dimensions: 100 × 38 × 25 mm
- Weight: 59 g
- Product code: 4058075798915
-
VAL 38/900 (38W, 900mA)
- Output voltage: 24–42 V
- Dimensions: 116 × 41 × 25 mm
- Weight: 89 g
- Product code: 4058075798977
-
VAL 42/1050 (42W, 1050mA)
- Output voltage: 24–38.5 V
- Dimensions: 116 × 41 × 25 mm
- Weight: 89 g
- Product code: 4058075798991
