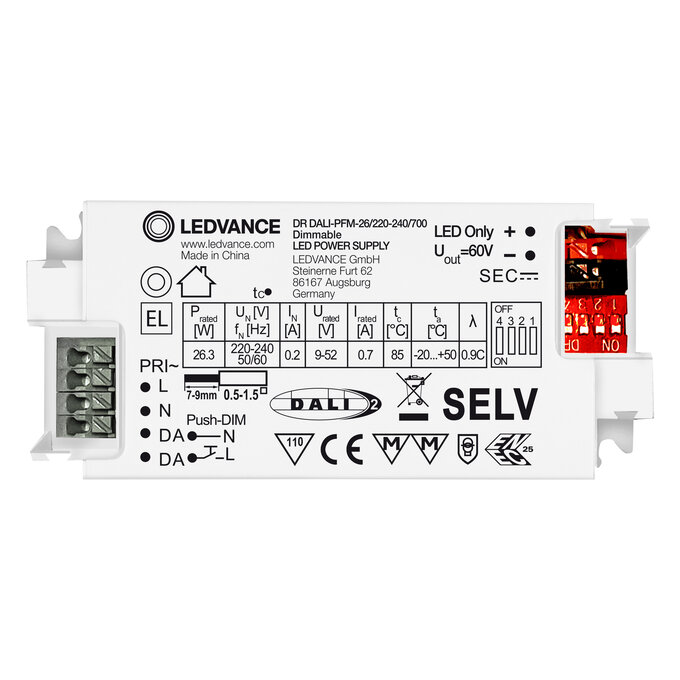

LEDVANCE LVED SUP 26 DALI-2 Dimmable LED Driver – 26W, Selectable Current
Brand: LEDVANCE
Warranty: 5 Years
Professional DALI-2 dimmable constant current LED driver with selectable output current via DIP switch. Designed for downlights, spotlights, panels, and indoor architectural lighting applications, offering high efficiency, low ripple, and comprehensive protection features.
Documents
Specifications:
- Brand: LEDVANCE
- Model: LVED SUP 26/220-240/700 DIM
- Driver Type: Constant Current LED Driver
- Dimming: DALI-2, Push DIM
- Dimming Range: 1%–100%, Dim-to-Off
- Power: Up to 26.3W
- Input Voltage: 220–240V AC
- Input Voltage Range: 198–264V AC
- Frequency: 50/60Hz
- Power Factor: 0.95
- THD: ≤10%
- Efficiency: Up to 85%
- Output Voltage: 9–52V DC
- Output Current: 150mA / 200mA / 250mA / 300mA / 350mA / 400mA / 450mA / 500mA / 550mA / 600mA / 650mA / 700mA
- Current Ripple: ≤5%
- Protection Rating: IP20
- Safety Class: SELV, Class I / Class II
- Protection Features: Over Temperature Protection, Short Circuit Protection, Overload Protection, No-Load Protection
- Operating Temperature: -20°C to +50°C
- Storage Temperature: -40°C to +85°C
- Maximum Case Temperature (Tc): 85°C
- Lifetime: 50,000 Hours
- Dimensions: 97 × 43 × 30 mm (Built-in) / 131 × 43 × 30 mm (Independent)
- Weight: 115g / 134g
- Applications: Downlights, Spotlights, LED Panels, Residential Lighting, Hotel Lighting, Office Lighting, Retail Lighting
- Certifications: CB, CE, RoHS, DALI-2
- Warranty: 5 Years
