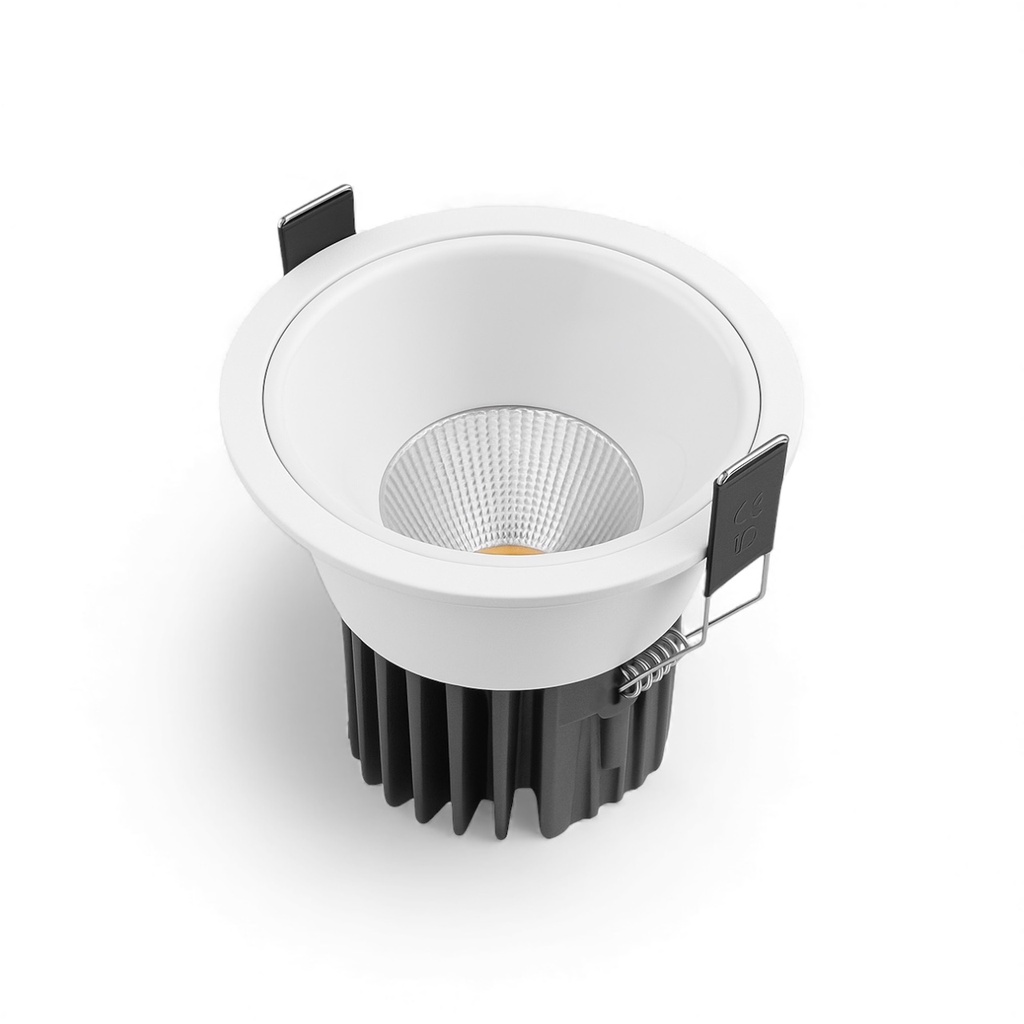

LED Recessed Spotlight – Anti-Glare - 60°
Warranty: 3 Years
High-performance LED spotlight using
Philips Fortimo SLM 840 and
CertaDrive 20W driver, delivering
1610 lumens of crisp 4000K neutral white light with
high efficiency and long lifetime. Ideal for retail, office, and accent lighting applications requiring
reliable, flicker-free illumination.
Spotlight Model 840 – Technical Specifications
Light Source:
- Philips Fortimo SLM C 840 1203 L09 1619 G7
- Luminous Flux: 1610 lm (typ.)
- Efficacy: 156 lm/W
- CCT: 4000K (Neutral White)
- CRI: ≥80 (3 SDCM color consistency)
- Beam Angle: Based on optical design (typically 24°–60°)
- Technology: CoB (Chip-on-Board)
- Lifetime: >50,000 hours (L70B50 @ Tc 85°C)
Driver:
- Philips CertaDrive 20W 0.5A 40V 230V I G5
- Output Current: 500 mA (fixed)
- Output Voltage: 30–40 VDC
- Output Power: 15–20 W
- Efficiency: 88%
- Power Factor: 0.95
- Ripple Current: <4%
- Protection: Short circuit / Open load / Overpower (auto recovery)
- Lifetime: 50,000 hours @ Tc ≤ 65°C
Electrical & Environmental:
- Input Voltage: 220–240 VAC, 50/60 Hz
- System Power Consumption: 15~20W
- Operating Temp: –20°C to +40°C
- IP Rating: IP20 (non-waterproof)
- Mounting: Class II, independent driver installation
Optical Performance:
- Photometric Code: 840/359
- Color Coordinates: (0.382, 0.380)
- Flicker-Free: Yes (PstLM ≤ 0.1, SVM ≤ 0.1)
- Camera Friendly: Yes
Certifications:
- CE, ENEC, RoHS, SELV, UKCA
