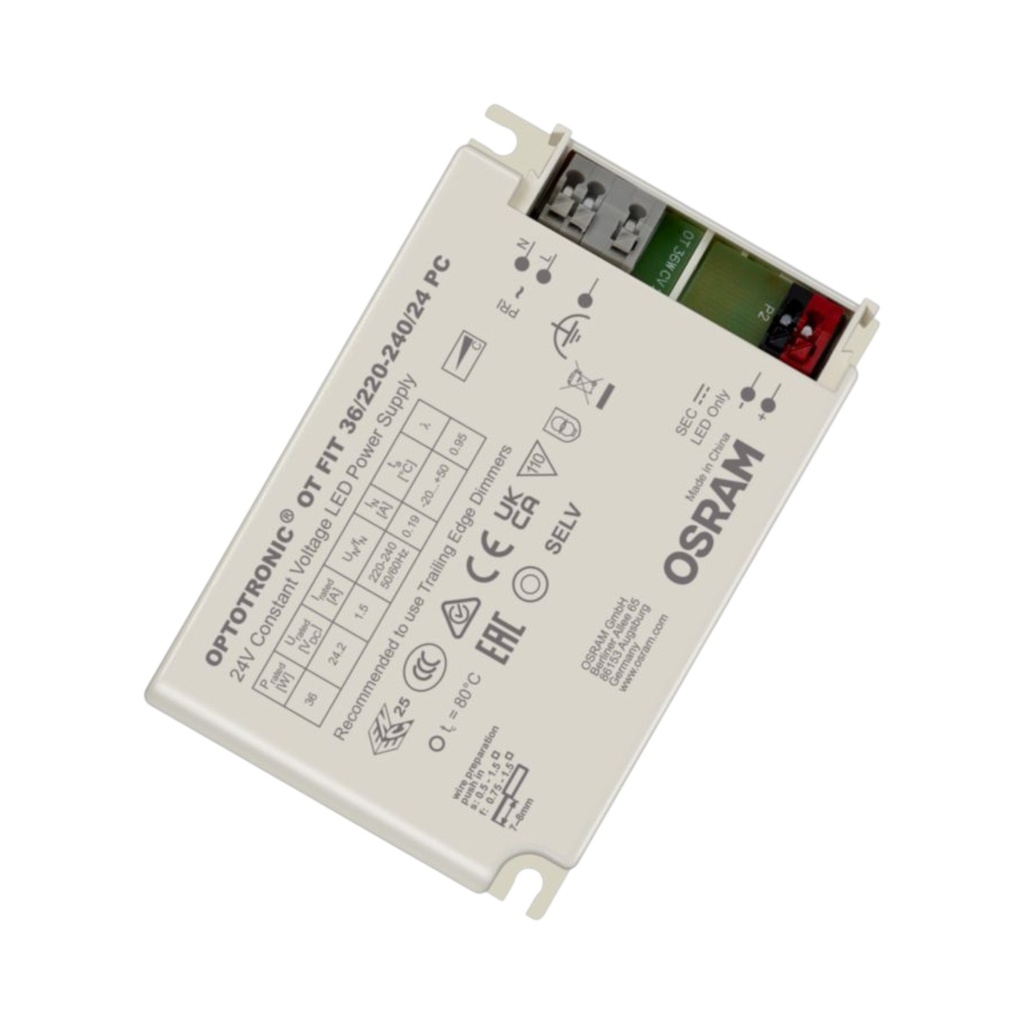

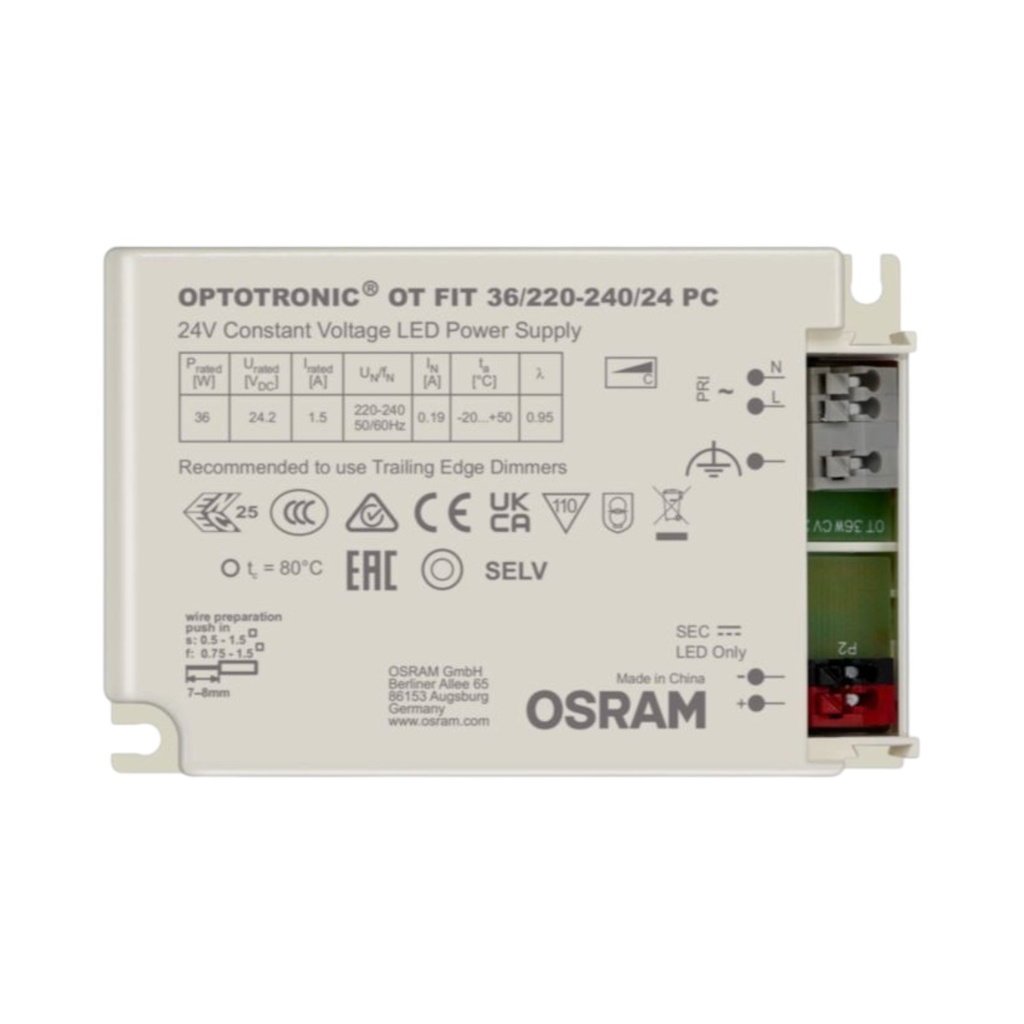

Inventronics OT FIT 36/220-240/24 PC LED Driver DC24V Phase Cut Dimming
Brand: OSRAM
The
Inventronics OT FIT 36/220-240/24 PC is a high-efficiency
24V constant voltage LED driver with
Phase Cut dimming, designed for indoor LED strip lighting, cove lighting, decorative lighting, shelving, and under-cabinet applications. It features smooth
3–100% dimming, SELV isolation, comprehensive protection functions, and is optimized for use with
trailing-edge dimmers.
Documents
Specifications:
- Constant Voltage LED Driver
- Model: OT FIT 36/220-240/24 PC
- Brand: Inventronics
- Output Type: 24V DC Constant Voltage
- Rated Output Voltage: 24.2V DC
- Output Power: 2.42–36W
- Maximum Output Power: 36W
- Input Voltage: 220–240V AC
- Input Voltage Range: 198–264V AC
- Input Frequency: 50/60Hz
- Input Current: 0.19A @ 230V
- Efficiency: Up to 85%
- Power Factor: 0.45–0.98
- Total Harmonic Distortion (THD): <15%
- Surge Protection: 2kV (L/N-Ground), 1kV (L-N)
- Output Ripple: 5%
- Galvanic Isolation: SELV
- Dimming Interface: Phase Cut
- Recommended Dimmer: Trailing Edge
- Dimming Range: 3–100%
- Dimming Method: PWM
- Lifetime: 50,000 hours
- Overload Protection: Yes
- Short Circuit Protection: Yes
- Over Temperature Protection: Yes
- No-load Proof: Yes
- Maximum LED Cable Length: 10m
- Protection Rating: IP20
- Housing Material: Plastic
- Dimensions: 103 × 67 × 29.5 mm
- Weight: 162g
- Ambient Operating Temperature: -20°C to +50°C
- Maximum tc Temperature: 80°C
- Storage Temperature: -20°C to +80°C
- Relative Humidity: 5–85%
- Protection Class Compatibility: Class I & II
- Certifications: CE, ENEC, CCC, RCM, UKCA, EAC, CB
- Standards: EN 55015, EN 60598-1, EN 61347-1, EN 61347-2-13, EN 61547, EN 62384
-
Applications:
- LED strip lighting
- Cove lighting
- Under-cabinet lighting
- Decorative lighting
- Shelf lighting
- Hospitality
- Residential
- Retail lighting
