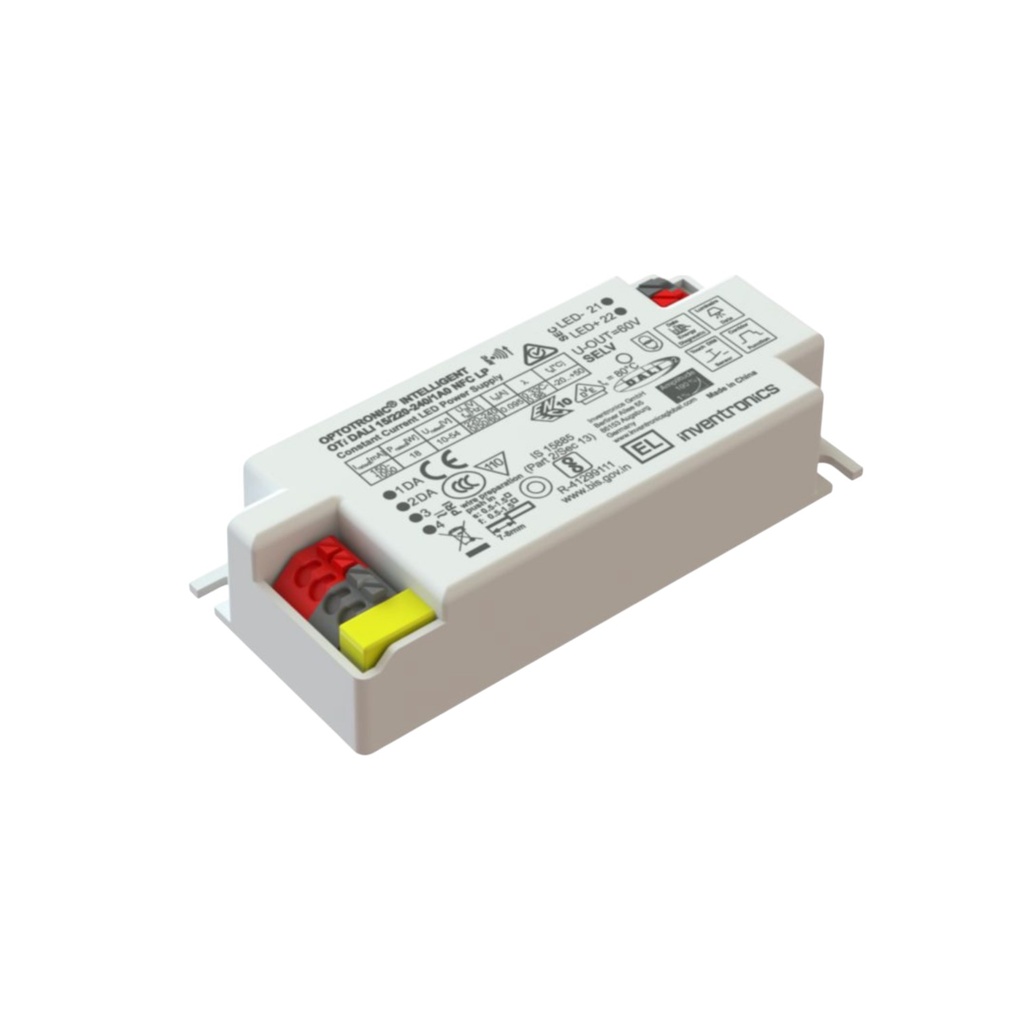

Inventronics OPTOTRONIC OTi DALI 15 NFC LP LED Driver – 18W
Brand: Inventronics
Warranty: 3 Years
Compact constant-current LED driver with DALI-2 dimming and NFC programmable output current. Designed for professional luminaires such as downlights, spotlights, and LED panels, offering high efficiency, flexible current configuration, and smooth dimming from 1–100%.
Specifications:
- Driver Type: Constant Current LED Driver
- Input Voltage: 220–240 V AC
- Input Voltage Range: 198–264 V AC
- Frequency: 0 / 50 / 60 Hz
- Nominal Input Current: 0.10 A
- Output Power: 3 – 18 W
- Maximum Output Power: 18 W
- Output Voltage: 10 – 54 V DC
- Maximum Output Voltage: 60 V
- Output Current Range: 150 – 1050 mA (NFC adjustable)
- Default Output Current: 350 mA
- Efficiency: up to 87.5%
- Dimming Interface: DALI-2 / Touch DIM / Corridor Function
- Dimming Range: 1 – 100 %
- Protection Class: SELV isolation
- Protection Rating: IP20
- Surge Protection: 1 kV (L-N), 2 kV (L/N-Ground)
- Operating Temperature: -20°C to +50°C
- Lifetime: up to 100,000 hours
- Dimensions: 97 × 42.5 × 22 mm
- Weight: 120 g
- Programming Interface: DALI / NFC
- Certifications: CE, ENEC, VDE, DALI-2, CCC, RCM, BIS
