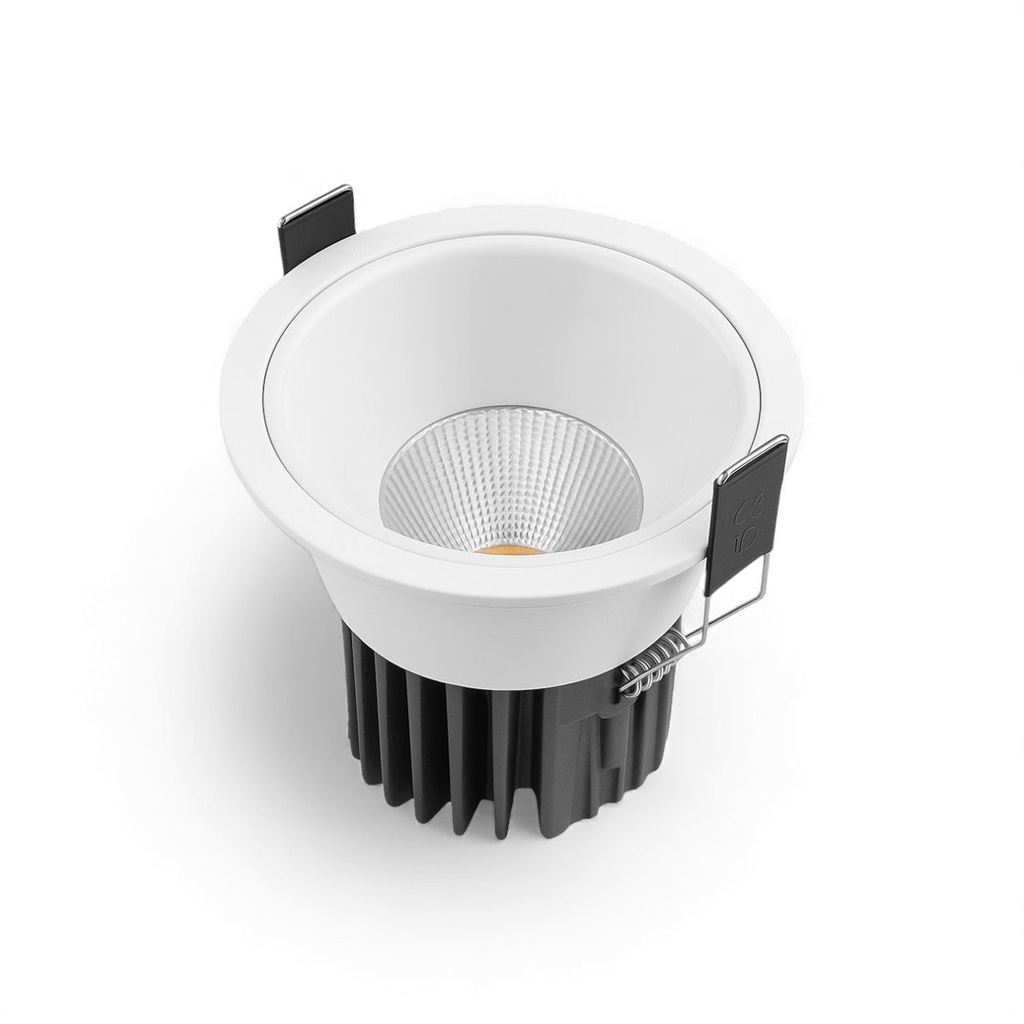

DALI DT8 Tunable White COB Recessed Spotlight 13W, 2700K-6500K
Warranty: 3 Years
Premium recessed LED spotlight featuring Bridgelux Vesta Tunable White COB technology and LTECH DALI DT8 control. Designed for architectural, hospitality, retail, and residential applications requiring seamless color temperature adjustment from 2700K to 6500K with high color rendering, flicker-free dimming, and superior visual comfort.
Specifications:
- Power Consumption: 8.7W @ 2700K, 8.7W @ 6500K, 13W Max (Dual Channel)
- LED Source: Bridgelux BXRV-TR-2765G-10A0-A-23
- Driver: LTECH SE-20-100-700-W2D
- Color Temperature: 2700K–6500K Tunable White
- Luminous Flux: 866–1030 lm
- Typical Luminous Flux: 950 lm
- CRI: Ra ≥90
- SDCM: 3-Step MacAdam
- Beam Angle: 60°
- UGR: <19
- Input Voltage: 100–240VAC, 50/60Hz
- Input Current: ≤0.13A @ 230VAC
- Output Current: 500mA (Configured), Adjustable 100–700mA
- Output Voltage: 9–42VDC
- Maximum Output Voltage: 48VDC
- Dimming Protocol: DALI DT8
- Dimming Range: 0.01–100%
- Driver Efficiency: 87%
- Power Factor: >0.90
- THD: ≤10%
- Flicker: Flicker-Free, IEEE 1789 Compliant
- IP Rating: IP44
- Housing Material: Die-Cast Aluminum
- Reflector Material: PC Reflector

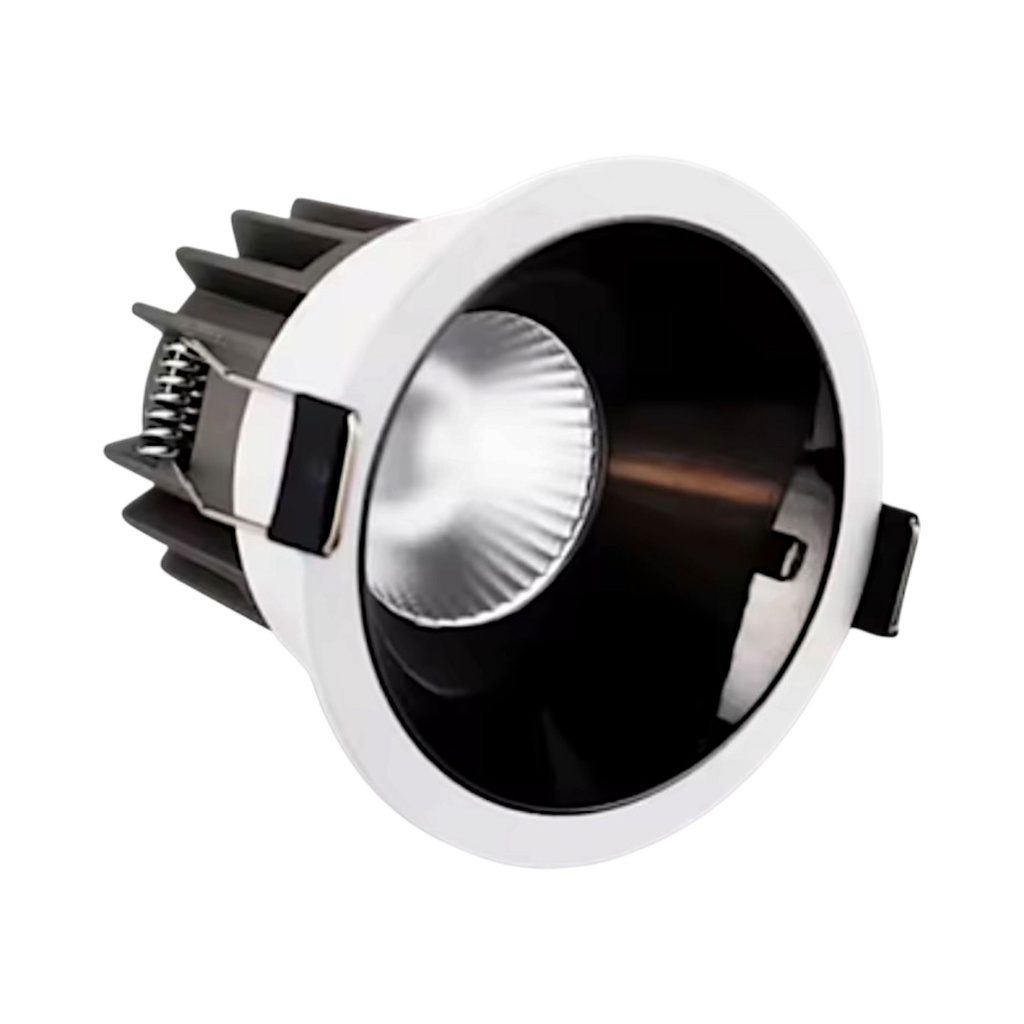

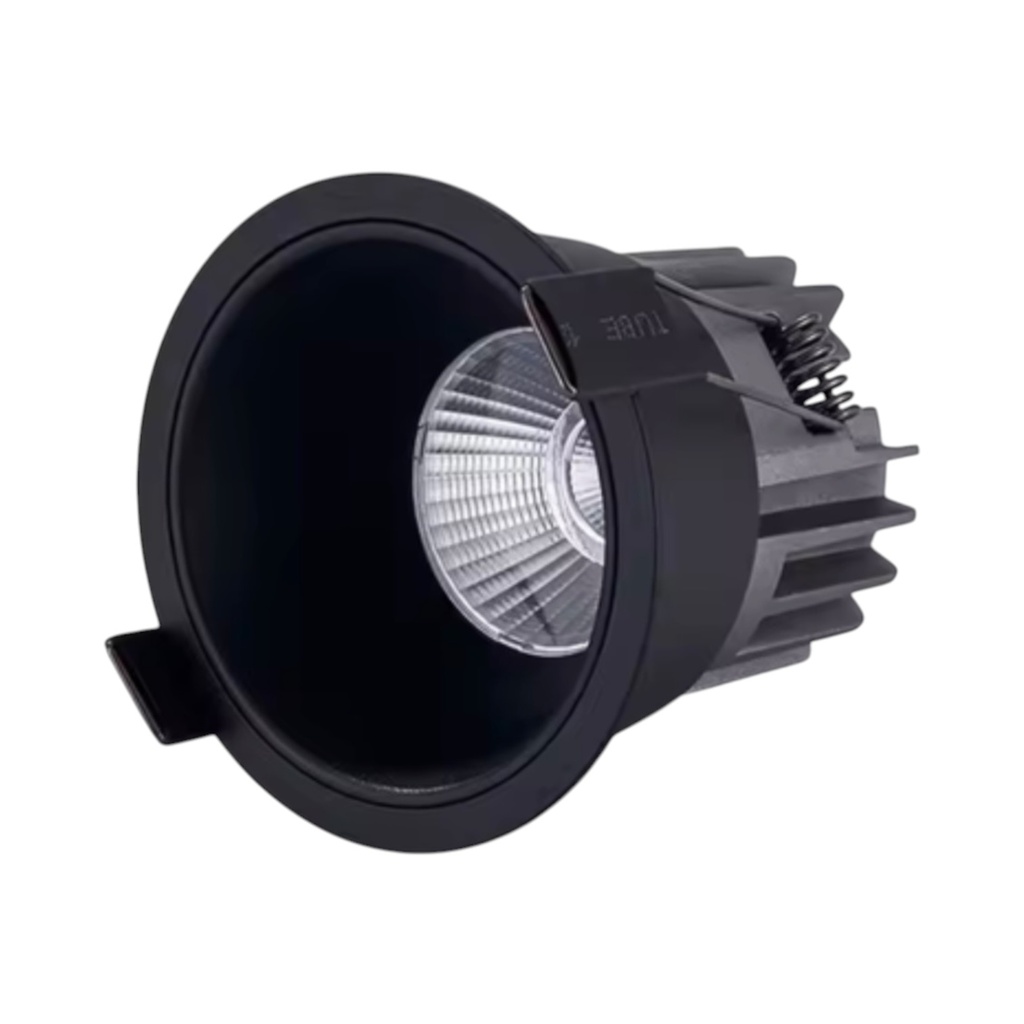

- Finish Options: White / Black / White + Black Reflector
- Fixture Diameter: Ø90 mm
- Ceiling Cutout: Ø75 mm
- Fixture Height: 110 mm
- Operating Temperature: -20°C to +50°C
- Lifetime: 50,000 Hours (L70)
- Warranty: 3 Years
