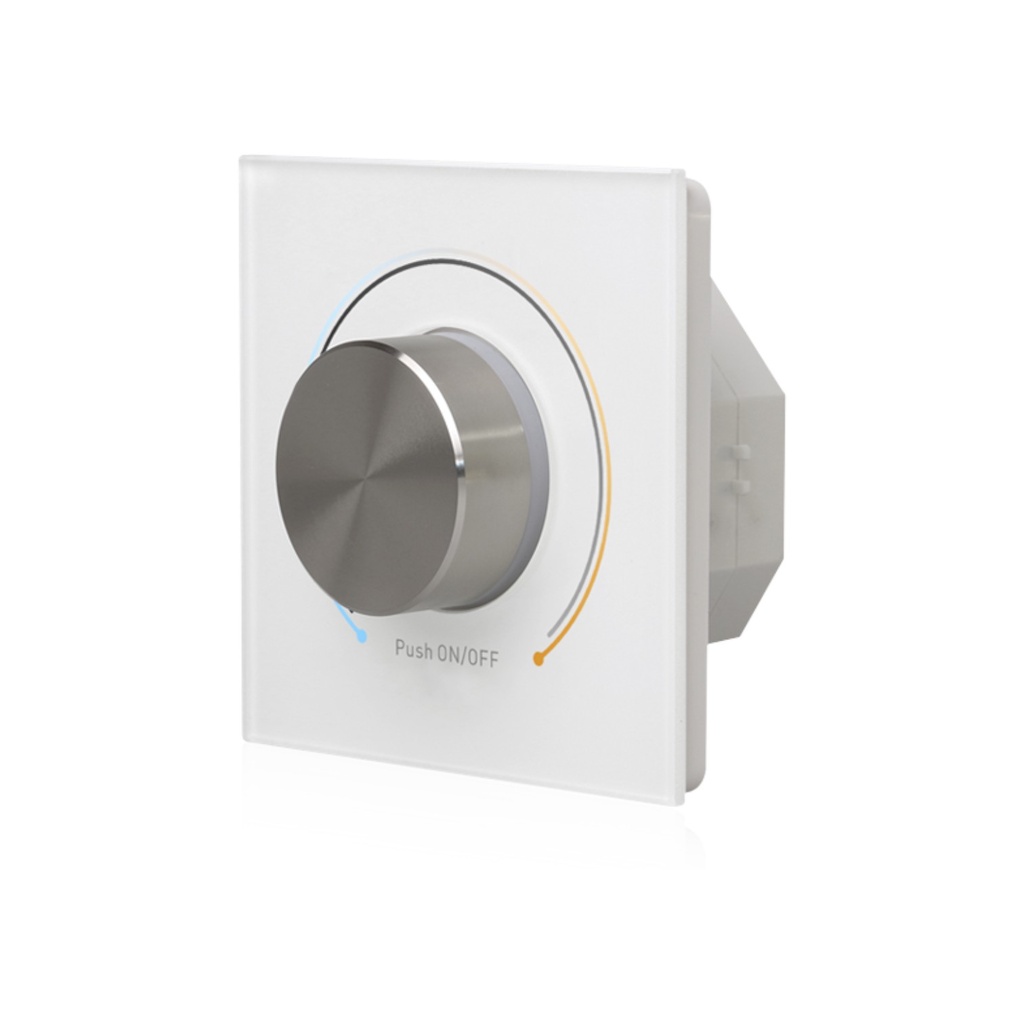

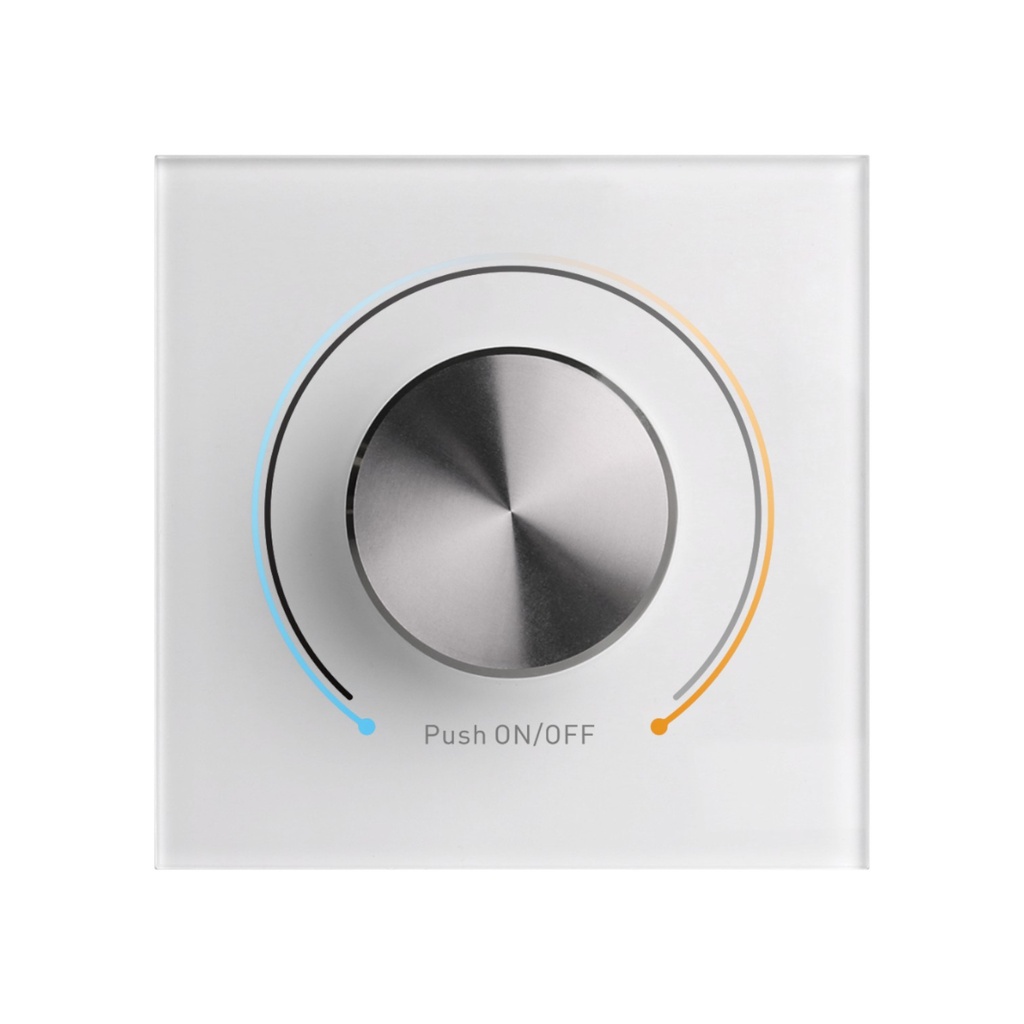

DALI DT8 Rotary CCT Controller – AC 100–240V, Built-in DALI Bus Power
Brand: SUNRICHER
Warranty: 5 Years
DALI-2 DT8 rotary controller designed for tunable white (CCT) lighting control with smooth dimming and intuitive operation. Features built-in DALI bus power supply, allowing direct control of multiple DALI drivers with precise brightness and color temperature adjustment.
Documents
Specifications:
- Type: DALI DT8 Rotary CCT Controller
- Control Function: Brightness dimming & Tunable white (CCT control)
- Dimming Range: 1–100%
- Control Interface: DALI-2 (DT8 compatible)
- Operating Voltage: 100–240V AC
- Power Consumption: Max. 2.3W
- DALI Output: DA+ / DA−
- DALI Bus Power Supply: Built-in (max. 100mA output)
- Max Devices per Circuit: Up to 50 DALI drivers
- Max Control Points: Up to 4 controllers per circuit
- Cable Length: Up to 300m (DALI bus)
- Cable Size: 0.5 – 1.5 mm²
- Control Method: Rotary knob with push & double-click functions
-
Modes:
- Brightness control
- Dual color (CCT) control
- Minimum Brightness Setting: Adjustable
- Operating Temperature: 0°C to +50°C
- Protection Rating: IP20
- Protection Class: Class II
- Dimensions: 80 × 80 × 53 mm
- Mounting Type: Wall-mounted (7*7 switch box)
