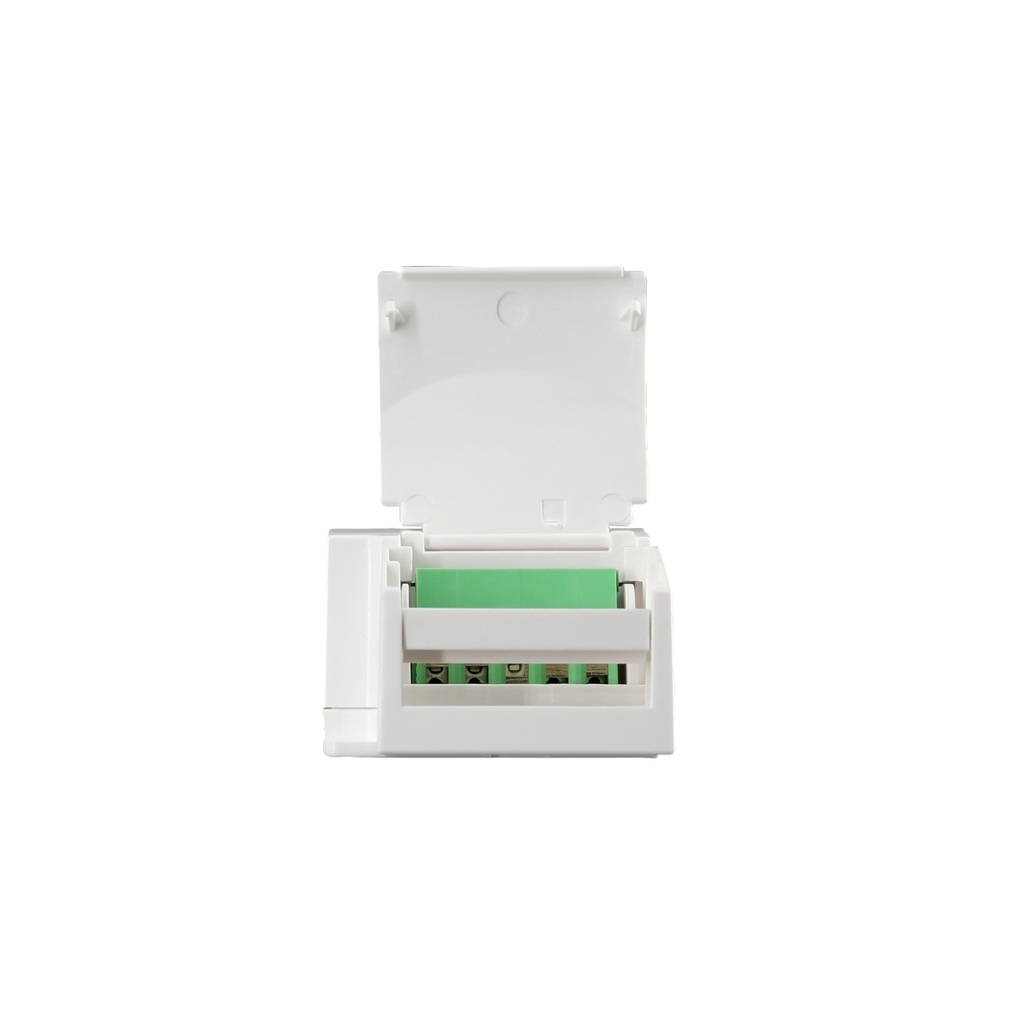

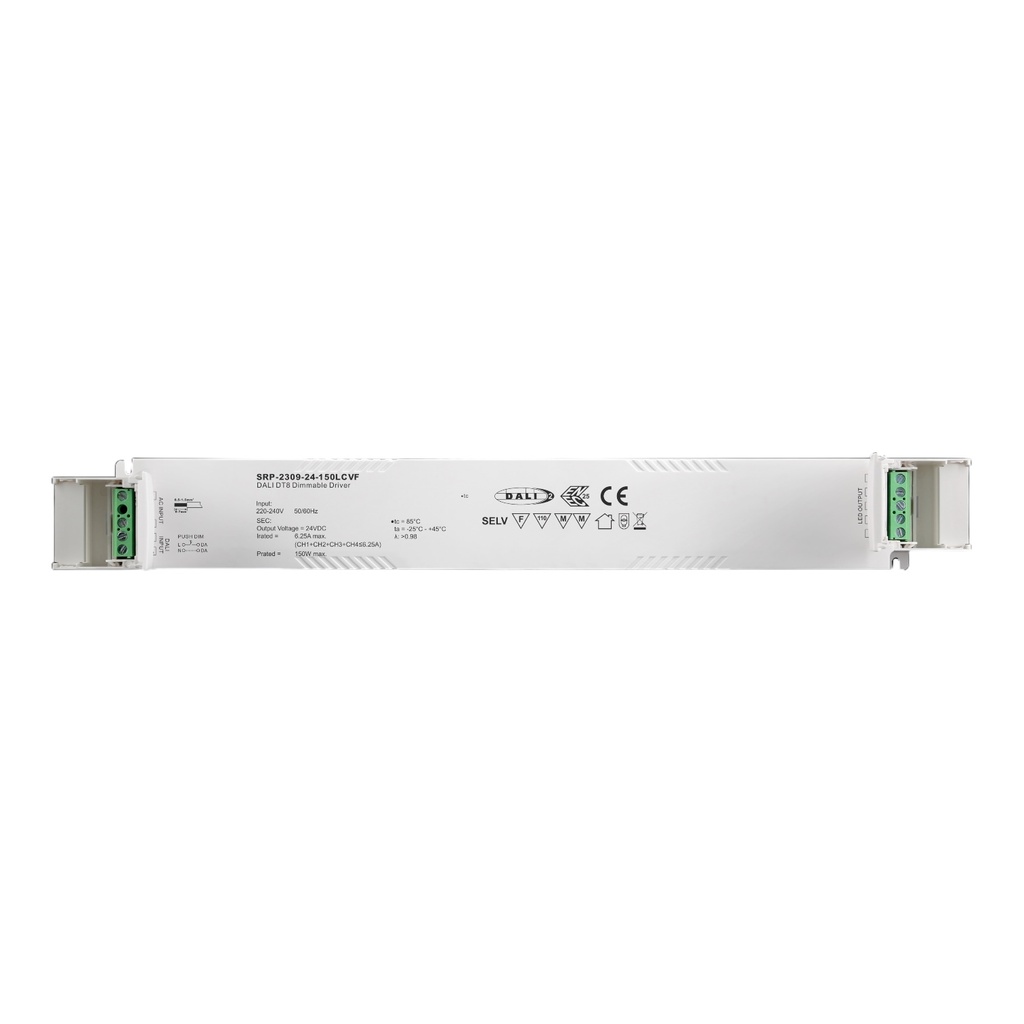

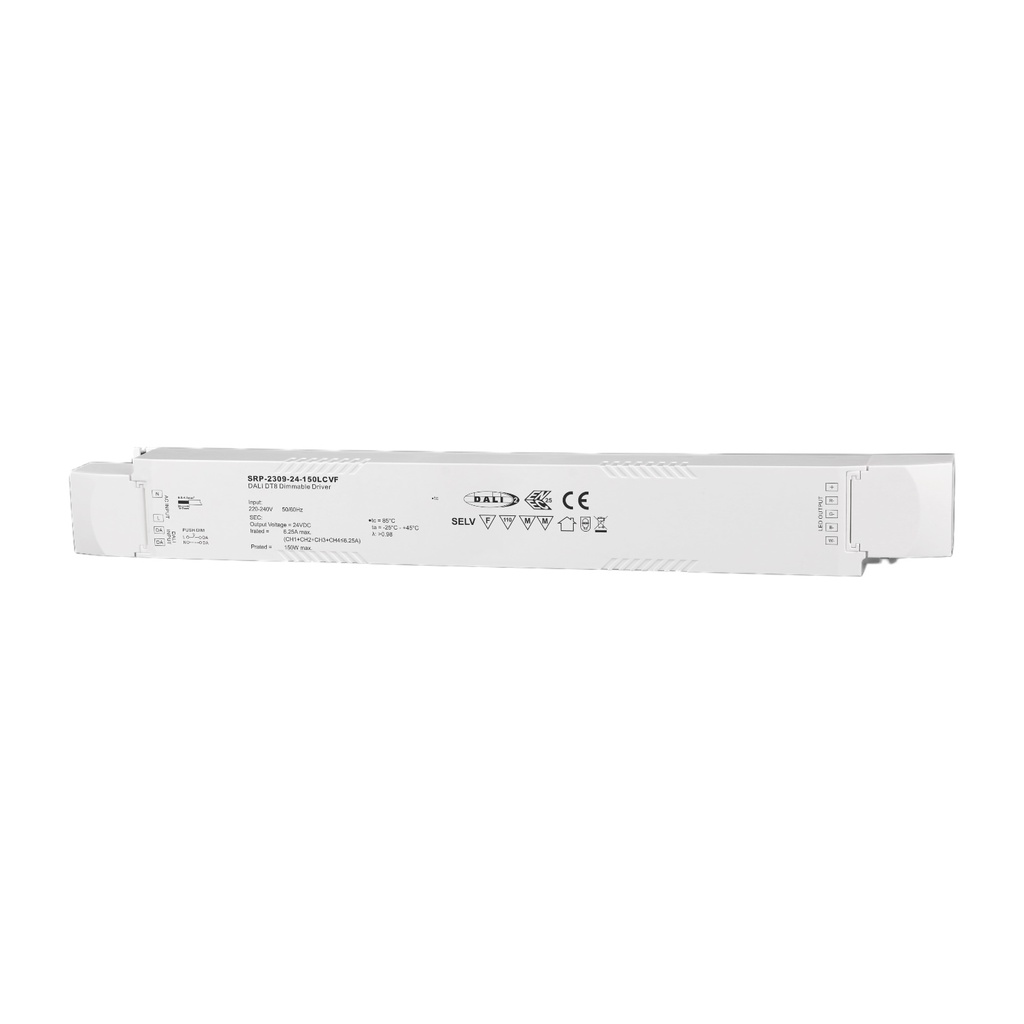

DALI DT8 Constant Voltage LED Driver – 24V DC, 4-Channel, Tunable White, RGBW, SRP-2309-24-LCVF

http://licht-eg.com/web/image/product.template/10217/image_1920?unique=c47e8b0
Brand: SUNRICHER
Warranty: 5 Years

High-performance 24V constant voltage LED driver with DALI DT8 dimming support, designed for tunable white and multi-channel lighting systems. Delivers smooth, flicker-free dimming from 0.1% to 100% with high efficiency and stable output. Ideal for architectural, commercial, and smart lighting applications requiring precise lighting control and long-term reliability.

0.00 LE 0.0 EGP 0.00 LE

0.00 LE

Get a Quota

  • Watt

This combination does not exist.

Contact Us
Watt: 150W

Terms and Conditions
14-day money-back guarantee
Shipping: 3-7 Business Days

Specifications:

  • Driver Type: Constant Voltage LED Driver
  • Rated Power: Max. 150W
  • Output Voltage: 24V DC
  • Output Current: Max. 6.25A (CH1 + CH2 + CH3 + CH4 ≤ 6.25A)
  • LED Channels: 4 Channels (DT8 – Tunable White / RGBW compatible)
  • Input Voltage: 220–240V AC
  • Input Frequency: 50 / 60 Hz
  • Power Factor: >0.98 @ 230V AC
  • Efficiency: Up to 93% @ full load
  • THD: ≤ 6% @ full load
  • AC Input Current: 0.71A @ 230V AC
  • Standby Power Consumption: < 0.5W
  • Inrush Current: Max. 46A @ 230V AC (cold start)
  • Dimming Interface: DALI DT8 / Push Dim
  • Dimming Range: 0.1% – 100%
  • Dimming Method: PWM (Pulse Width Modulation)
  • Dimming Curve: Linear / Logarithmic (optional)
  • DALI Compliance: IEC 62386-101 / 102 / 207 / 209
  • DALI Addressing: Single DALI address controls all 4 channels
  • Protection Functions:
    • Over-voltage protection (auto recovery)
    • Over-load protection (auto recovery)
    • Short-circuit protection (auto recovery)
    • Over-temperature protection (auto recovery)
  • Surge Protection: L–N: 2kV
  • Withstand Voltage: I/P–O/P: 3.75kV AC
  • Isolation Resistance: ≥100MΩ @ 500V DC
  • Operating Temperature: –25°C to +45°C
  • Max. Case Temperature: 85°C (Ta = 45°C)
  • Working Humidity: 10% – 95% RH (non-condensing)
  • Storage Temperature: –40°C to +80°C
  • IP Rating: IP20 (Indoor use)
  • Housing: Metal enclosure
  • Dimensions: 365.6 × 43 × 30 mm (L × W × H)
  • MTBF: 191,800 hours @ 25°C (MIL-HDBK-217F)
  • Certifications: CE, SELV, RoHS
  • Warranty: 5 Years
