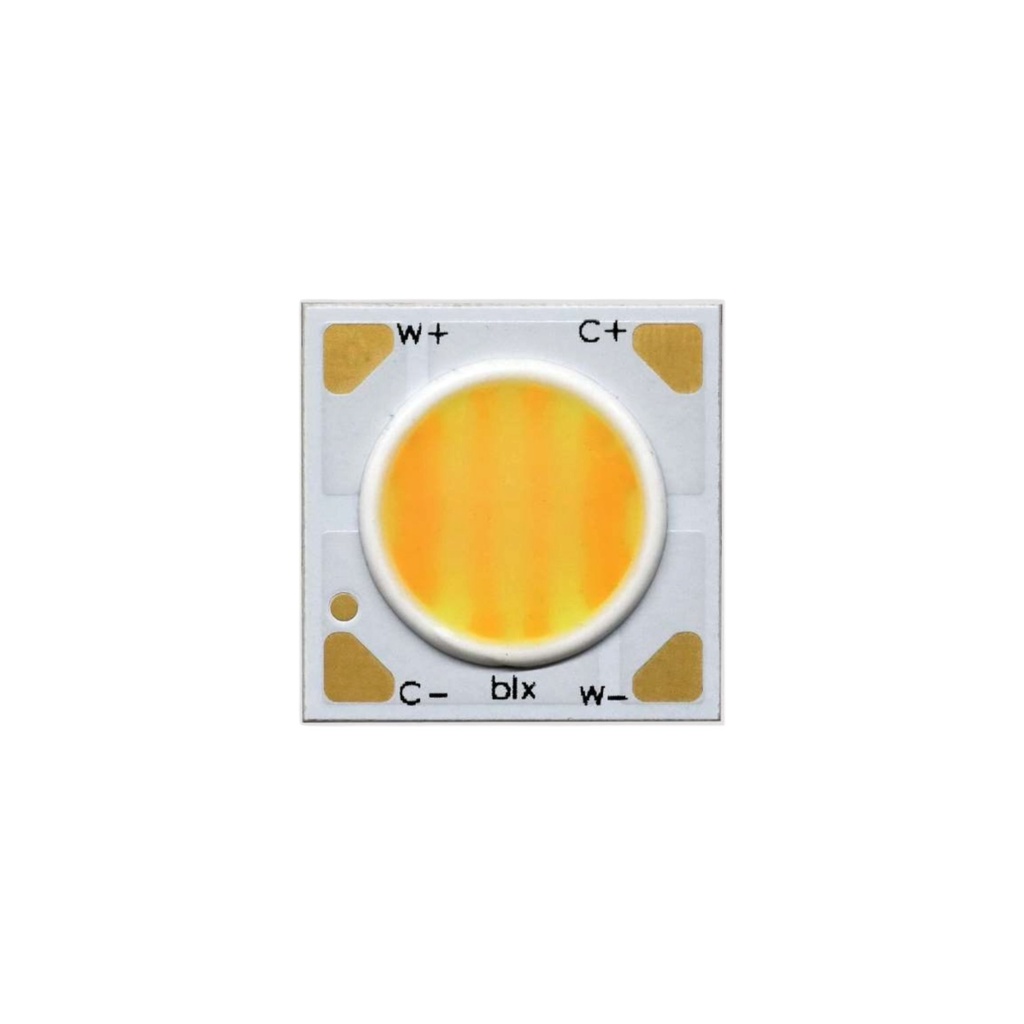

Bridgelux Vesta Gen 2 Tunable White LED Array – 2700K–6500K, CRI 90
Brand: BridgeLux
Premium tunable white COB LED array featuring smooth color temperature adjustment from warm 2700K to cool daylight 6500K. Designed for architectural, retail, hospitality, and human-centric lighting applications requiring excellent color rendering, high efficacy, and compact form factor. Ideal for spotlights, downlights, track lights, and custom luminaires.
Specifications:
- Model: BXRV-TR-2765G-10A0-B-23
- LED Type: Bridgelux Vesta® Gen 2 Tunable White COB
- Color Temperature: 2700K / 6500K
- CRI: ≥90
- Luminous Flux: 990 lm / 1190 lm
- Efficacy: 112 lm/W / 137 lm/W
- Power: 8.7W
- Drive Current: 250mA
- Forward Voltage: 34.8V
- Maximum Drive Current: 480mA combined
- Beam Angle: 130°
- Color Consistency: 3 SDCM
- Dimensions: 15.9 × 12.5 × 1.0 mm
- Operating Case Temperature: Up to 105°C
- Storage Temperature: -40°C to +105°C
- Applications: Downlights, Spotlights, Track Lights, Accent Lighting, Retail Lighting, Hospitality Lighting, Human-Centric Lighting
- Certifications: CE, UL
